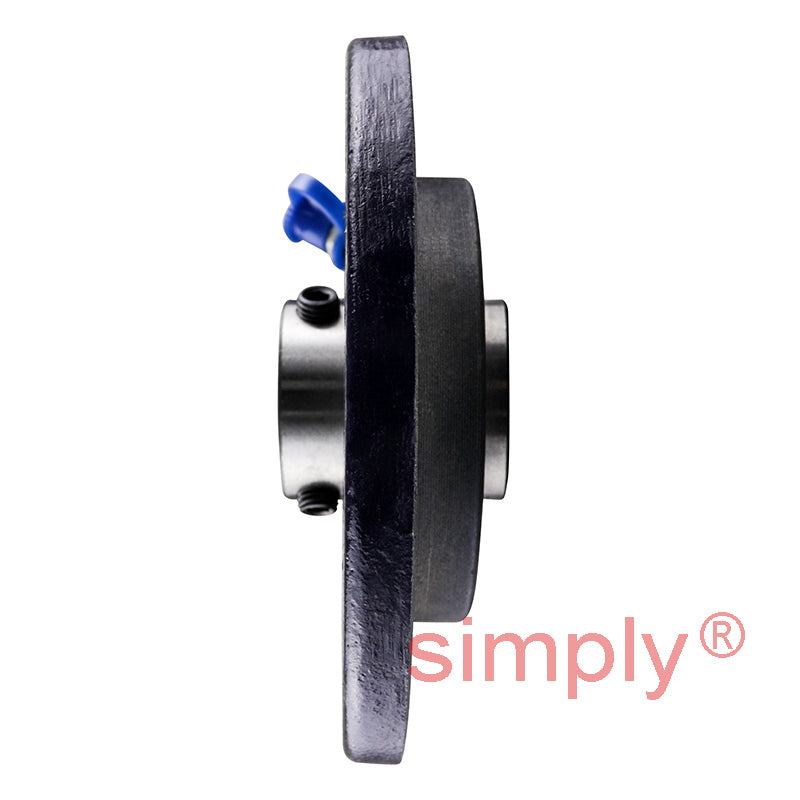

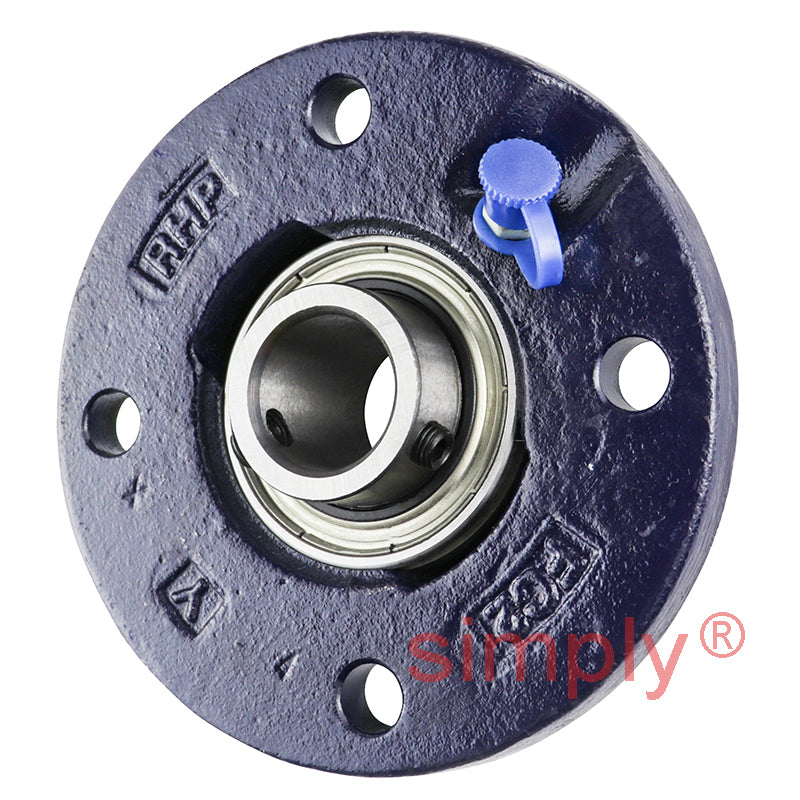

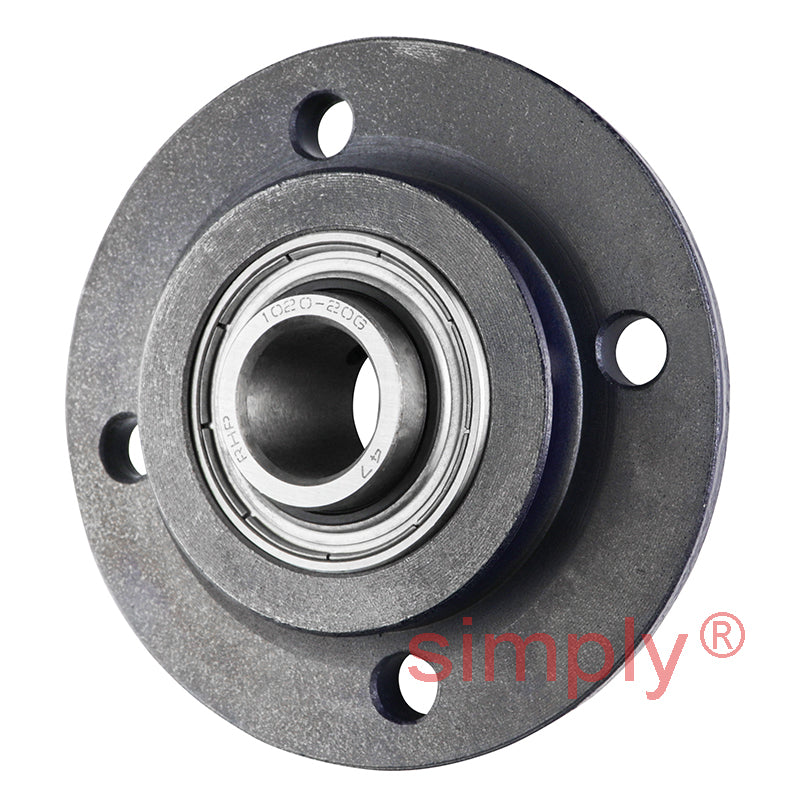

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

SKU: FC20-RHP

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

€42.85 ex VAT
€42,85
ex VAT
In stock

Quantity Price Breaks

10 €38.14
20 €35.99
30 €35.57
40 €35.14
50 €34.71
75 €34.28
100 €32.14
200 €31.71
250 €31.28
500 €30.85
1000 €30.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
SKU: FC20-RHP

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

€42.85 ex VAT
€42,85
ex VAT

Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 20mm
L = 100mm
H = 62mm
J = 78mm
G = 8mm
A = 17mm
A1 = 16.29mm
A5 = 8mm
B = 30.96mm
s = 12.75mm
d1 = 28.5mm
Dynamic load = 12800 N
Static load = 6650 N
Rec max speed = 6700 rpm
Weight = 0.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1020-20G+insonly"
> = 1020-20G Click Here<
/a> =
Casting group = 2
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
