SKU: FC20EC-RHP

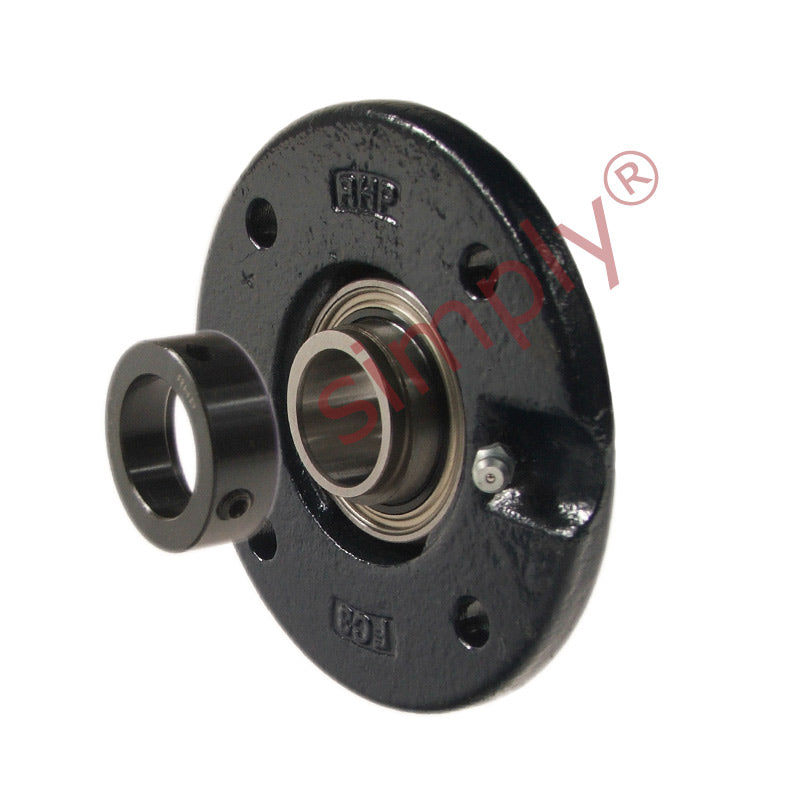

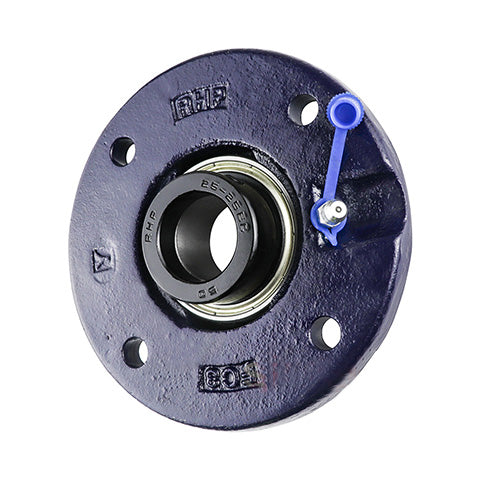

RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
- Regular price
- €45.77 ex VAT
- Sale price
- €45,77
- Regular price
-
Not in stock
Quantity Price Breaks
10
€40.74
20
€38.45
30
€37.99
40
€37.53
50
€37.07
75
€36.62
100
€34.33
200
€33.87
250
€33.41
500
€32.95
1000
€32.04
SKU:
FC20EC-RHP
RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
- Regular price
- €45.77 ex VAT
- Sale price
- €45,77
- Regular price
-
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

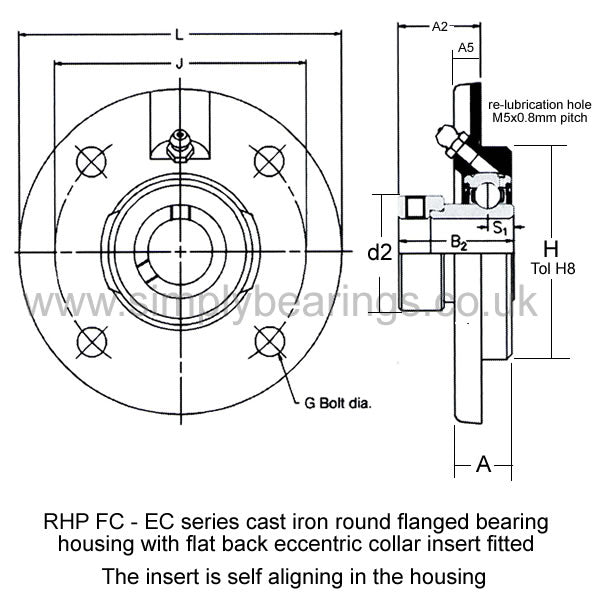

Technical
| Bore | = | 20mm |
| L | = | 100mm |
| H | = | 62mm |
| J | = | 78mm |
| G | = | 8mm |
| A | = | 17mm |
| A2 | = | 21.45mm |
| A5 | = | 8mm |
| B2 | = | 30.92mm |
| s2 | = | 17.12mm |
| d2 | = | 33.3mm |
| Dynamic load | = | 12800 N |
| Static load | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1220-20ECG+insonly" |
| > | = | 1220-20ECG Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
