SKU: FC25A-RHP

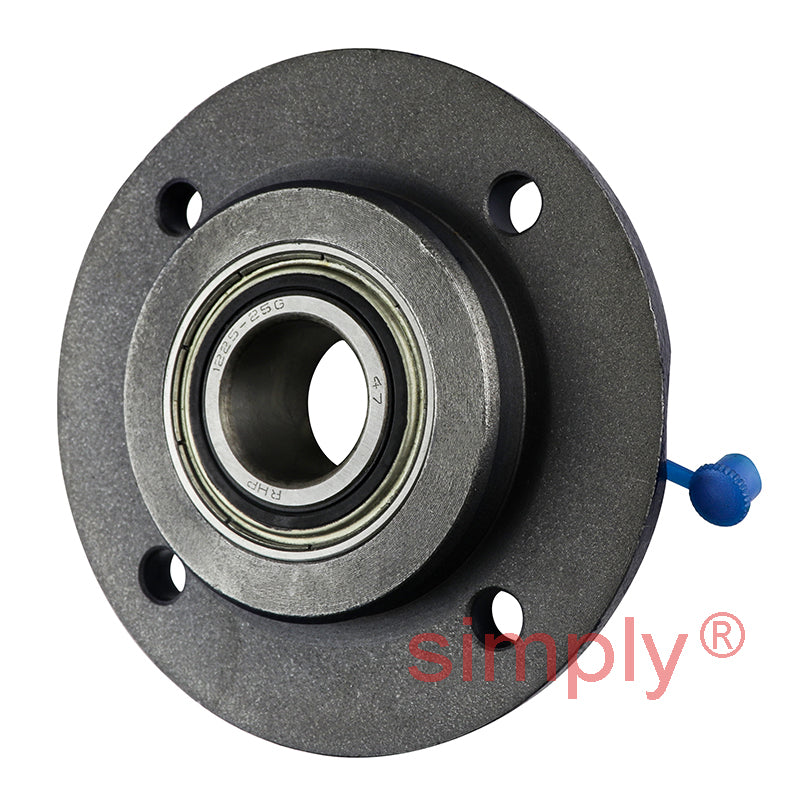

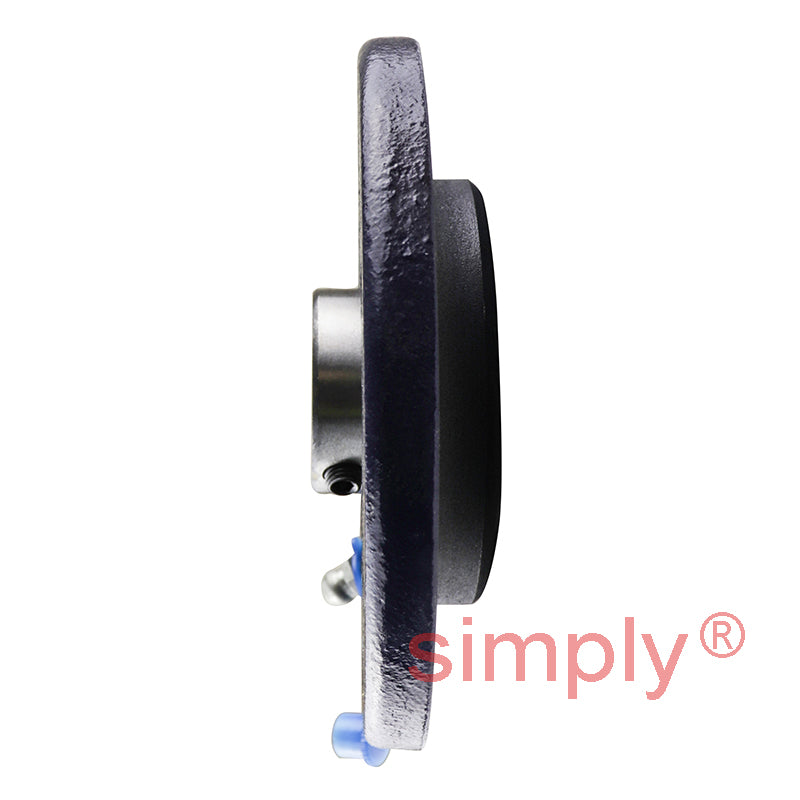

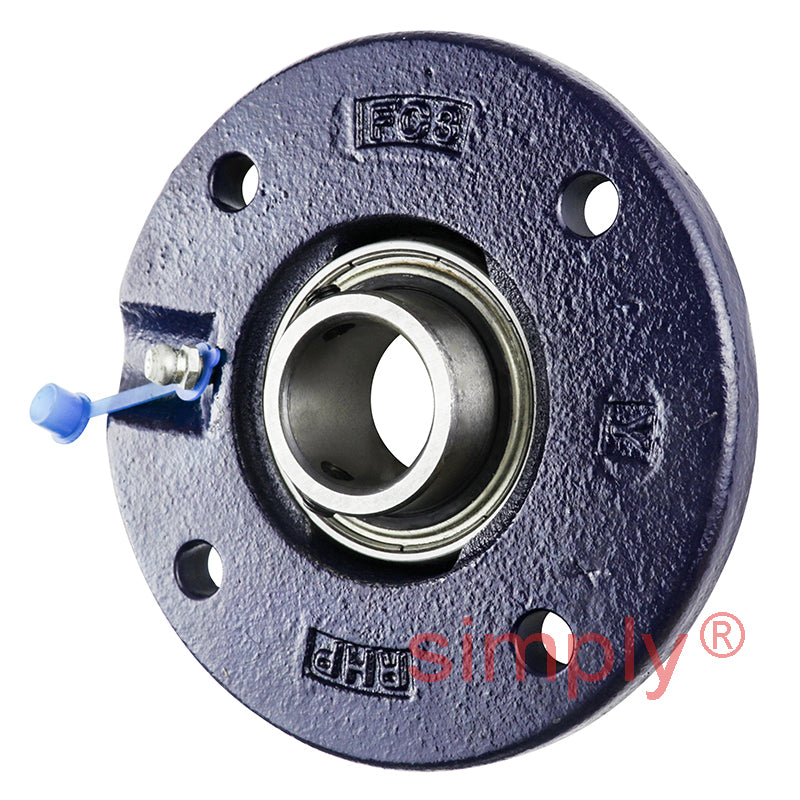

RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €51.01 ex VAT
- Sale price
- €51,01
- Regular price
-
Not in stock
Quantity Price Breaks
10
€45.40
20
€42.85
30
€42.34
40
€41.83
50
€41.32
75
€40.81
100
€38.26
200
€37.75
250
€37.24
500
€36.73
1000
€35.71
SKU:
FC25A-RHP
RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €51.01 ex VAT
- Sale price
- €51,01
- Regular price
-
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

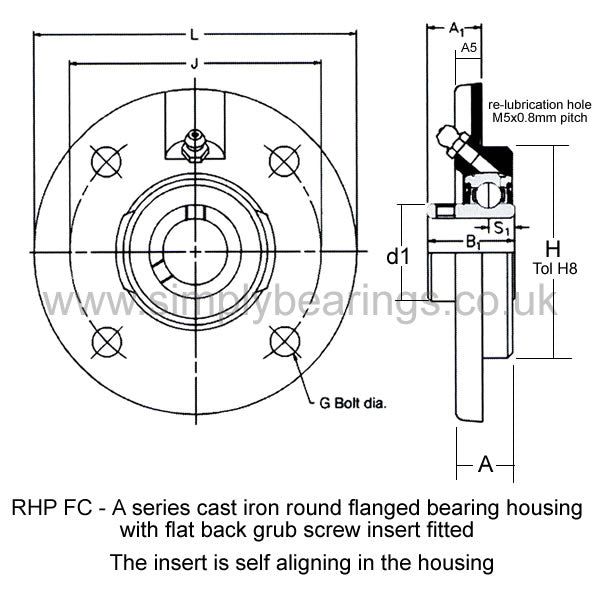

Technical
| Bore | = | 25mm |
| L | = | 115mm |
| H | = | 70mm |
| J | = | 90mm |
| G | = | 8mm |
| A | = | 19mm |
| A1 | = | 17.34mm |
| A5 | = | 9mm |
| B1 | = | 27.35mm |
| s1 | = | 7.56mm |
| d1 | = | 34.01mm |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1225-25AG+insonly" |
| > | = | 1225-25AG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
