SKU: FC25DEC-RHP

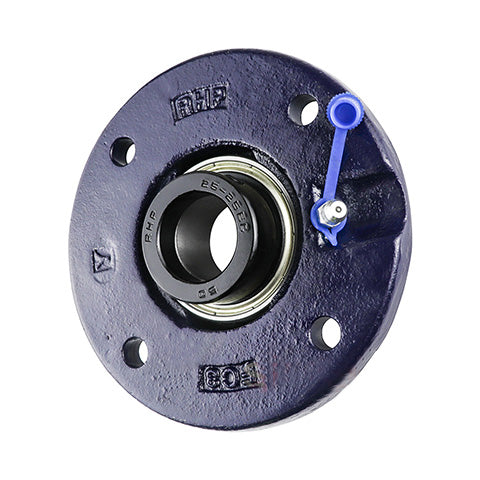

RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €58.67 ex VAT
- Sale price
- €58,67
- Regular price
-
Not in stock
Quantity Price Breaks
10
€52.22
20
€49.28
30
€48.70
40
€48.11
50
€47.52
75
€46.94
100
€44.00
200
€43.42
250
€42.83
500
€42.24
1000
€41.07
SKU:
FC25DEC-RHP
RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €58.67 ex VAT
- Sale price
- €58,67
- Regular price
-
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 25mm |
| L | = | 115mm |
| H | = | 70mm |
| J | = | 90mm |
| G | = | 8mm |
| A | = | 19mm |
| A3 | = | 24.41mm |
| A5 | = | 9mm |
| B3 | = | 44.4mm |
| s2 | = | 17.49mm |
| d2 | = | 38.1mm |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1025-25DECG+insonly" |
| > | = | 1025-25DECG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
