SKU: FC25EC-RHP

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

€52.23 ex VAT
€52,23
ex VAT
In stock

Quantity Price Breaks

10 €46.48
20 €43.87
30 €43.35
40 €42.83
50 €42.31
75 €41.78
100 €39.17
200 €38.65
250 €38.13
500 €37.61
1000 €36.56
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
SKU: FC25EC-RHP

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

€52.23 ex VAT
€52,23
ex VAT

Description

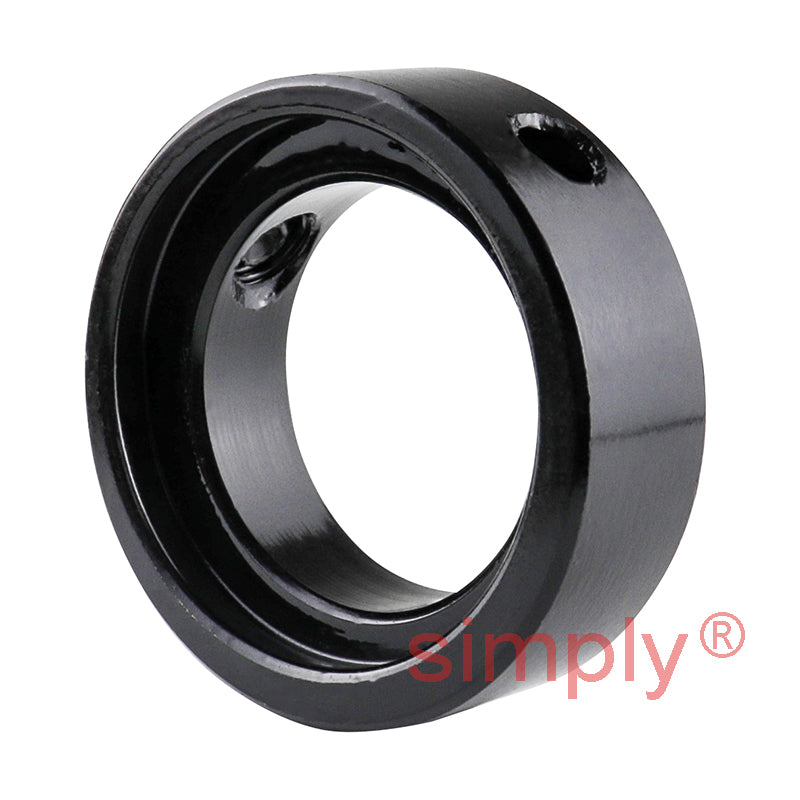

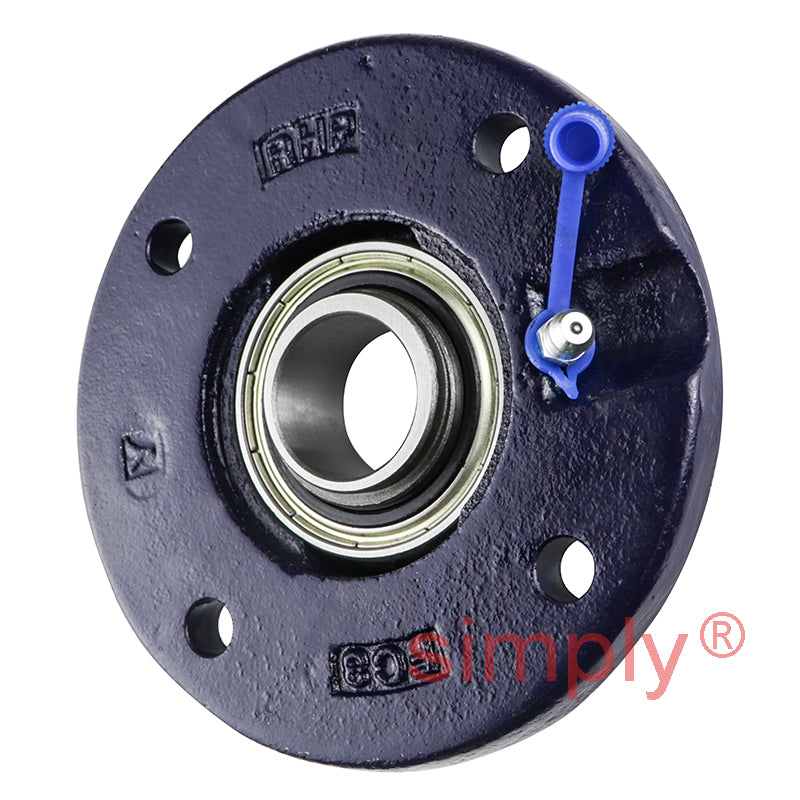

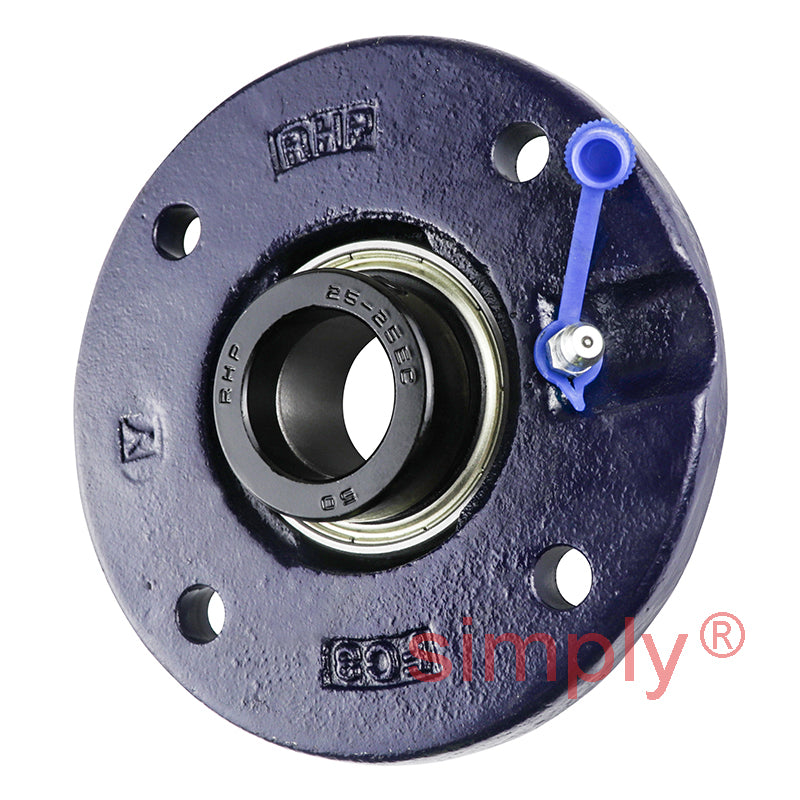

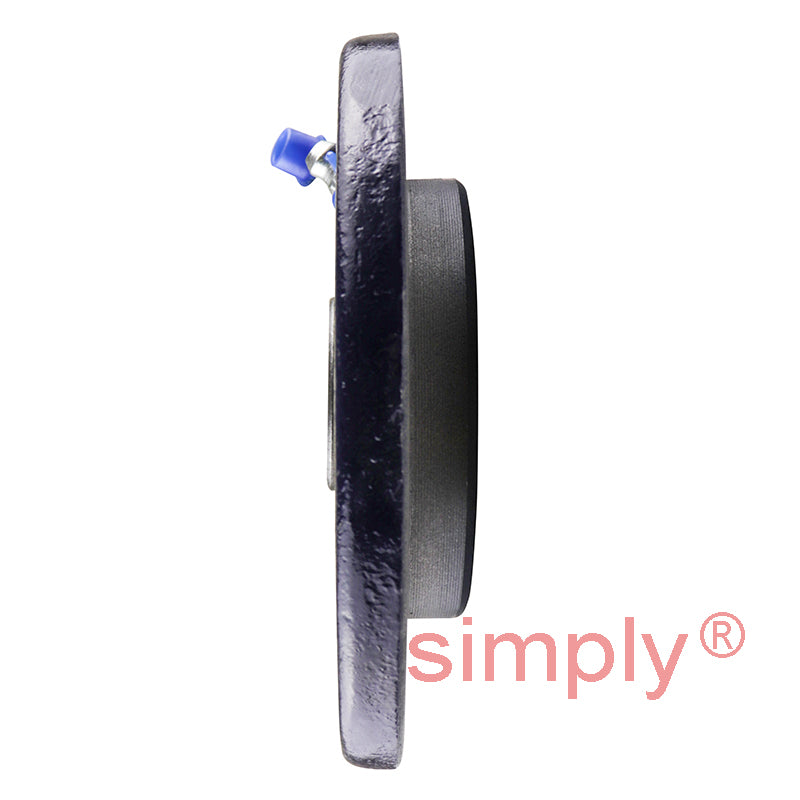

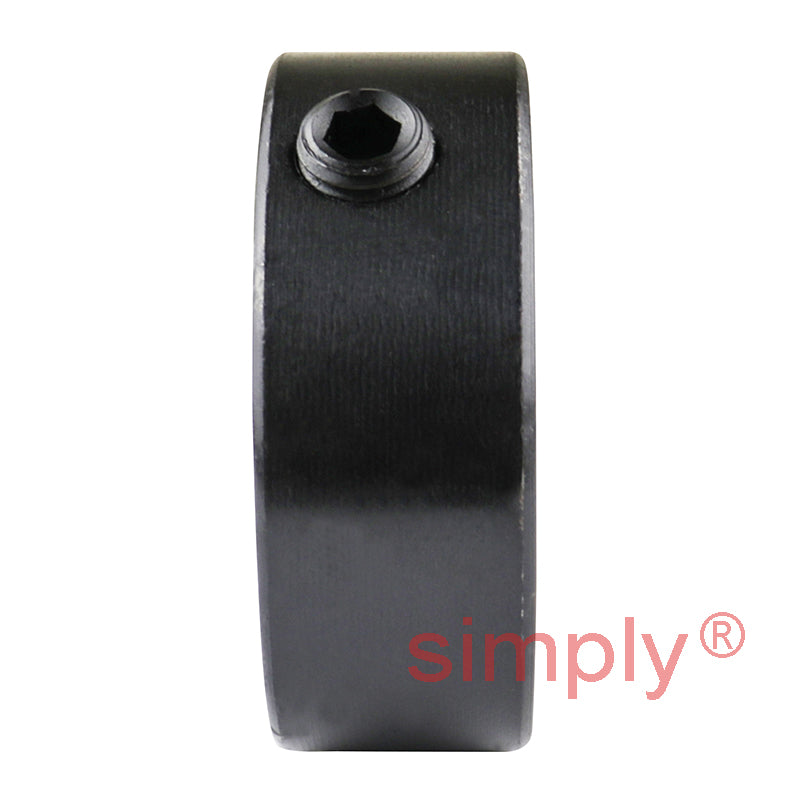

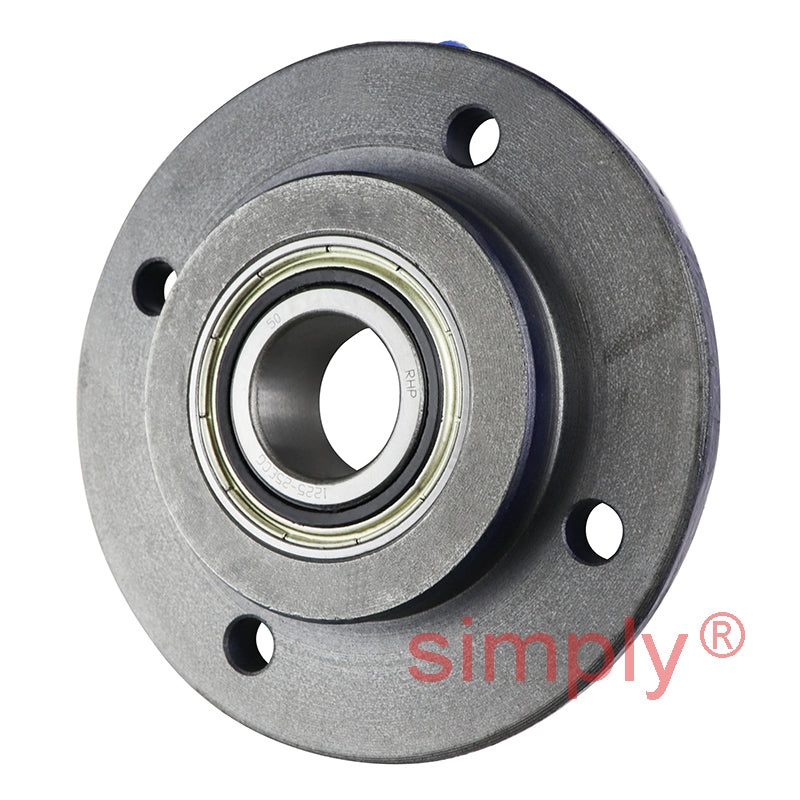

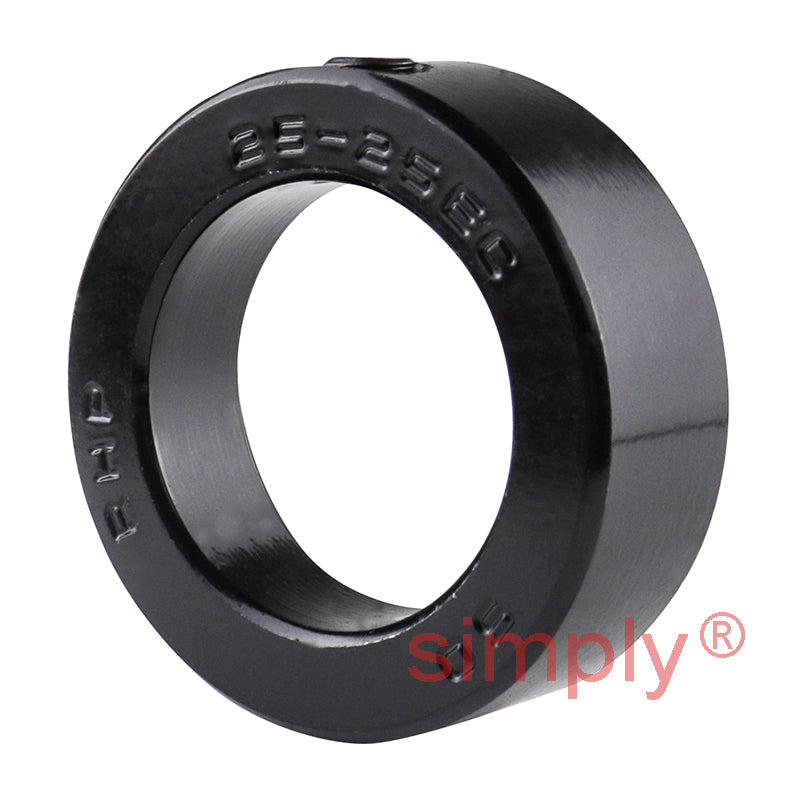

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Technical

Bore = 25mm
L = 115mm
H = 70mm
J = 90mm
G = 8mm
A = 19mm
A2 = 20.86mm
A5 = 9mm
B2 = 30.92mm
s2 = 17.49mm
d2 = 38.1mm
Dynamic load = 14000 N
Static load = 7880 N
Rec max speed = 6250 rpm
Weight = 0.9 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1225-25ECG+insonly"
> = 1225-25ECG Click Here<
/a> =
Casting group = 3
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
