SKU: FC3/4-RHP

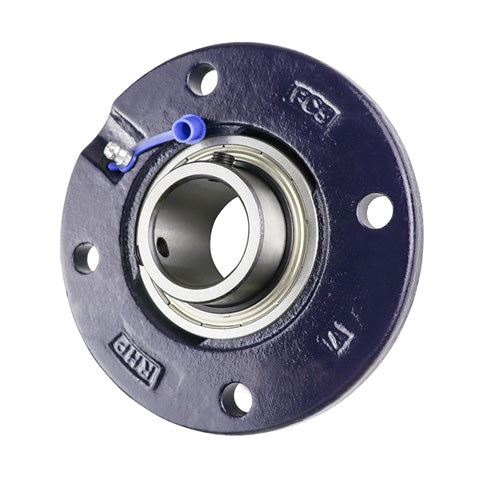

RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
- Regular price
- €45.46 ex VAT
- Sale price
- €45,46
- Regular price
-
Not in stock
Quantity Price Breaks
10
€40.46
20
€38.19
30
€37.73
40
€37.28
50
€36.82
75
€36.37
100
€34.10
200
€33.64
250
€33.19
500
€32.73
1000
€31.82
SKU:
FC3/4-RHP
RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
- Regular price
- €45.46 ex VAT
- Sale price
- €45,46
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 3/4 inch |
| L | = | 3.937 inch |
| H | = | 2.441 inch |
| J | = | 3.071 inch |
| G | = | 0.3125 inch |
| A | = | 0.669 inch |
| A1 | = | 0.641 inch |
| A5 | = | 0.315 inch |
| B | = | 1.219 inch |
| s | = | 0.502 inch |
| d1 | = | 1.122 inch |
| Dynamic load | = | 12800 N |
| Static load | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1020-3/4G+insonly" |
| > | = | 1020-3/4G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
