RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

SKU: FC30-RHP

RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

€60.53 ex VAT
€60,53
ex VAT
In stock

Quantity Price Breaks

10 €53.87
20 €50.85
30 €50.24
40 €49.63
50 €49.03
75 €48.42
100 €45.40
200 €44.79
250 €44.19
500 €43.58
1000 €42.37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
SKU: FC30-RHP

RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

€60.53 ex VAT
€60,53
ex VAT

Description

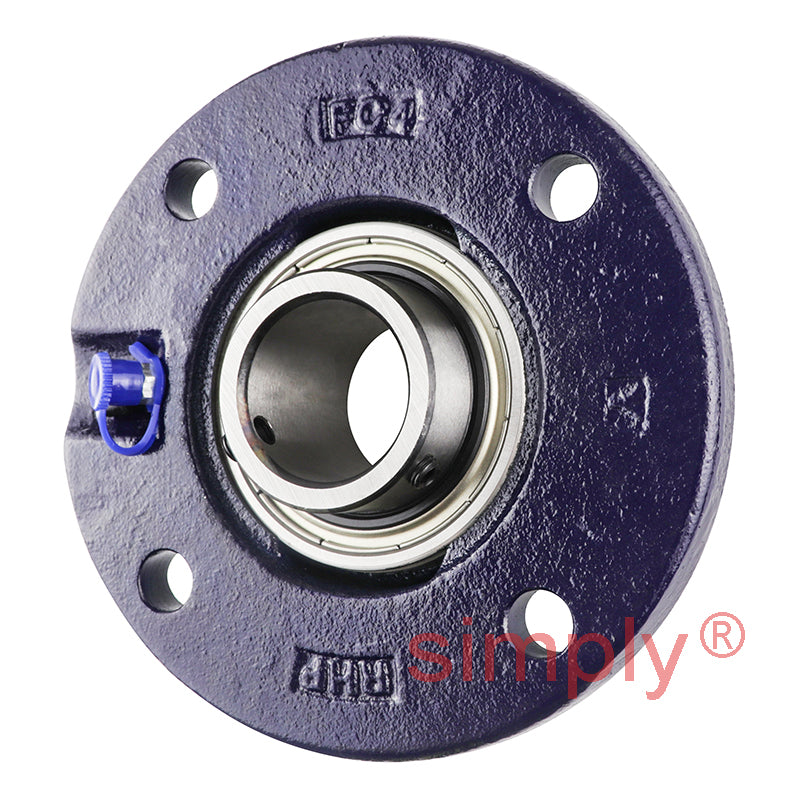

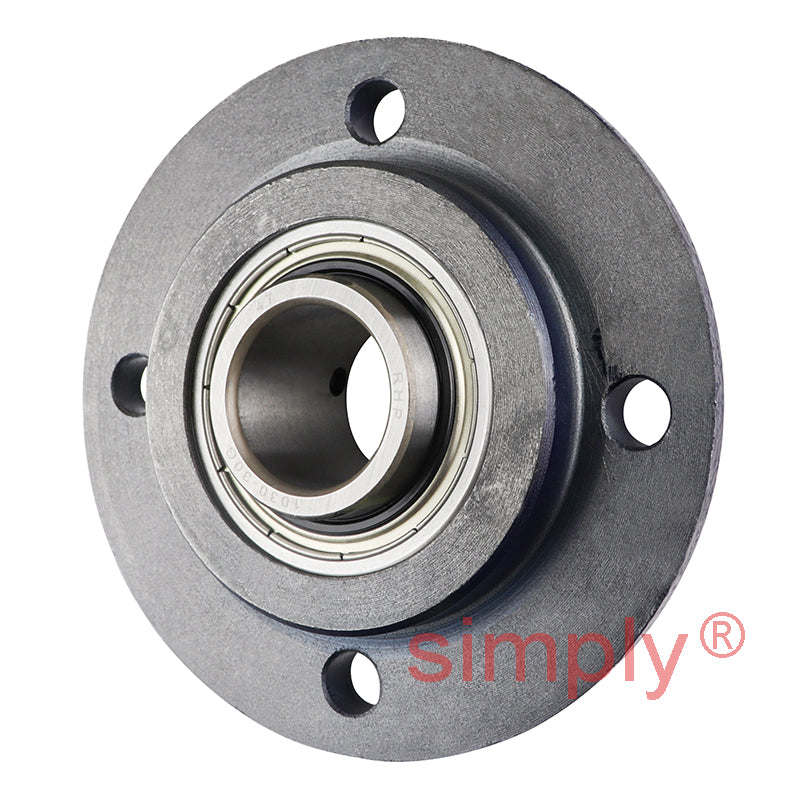

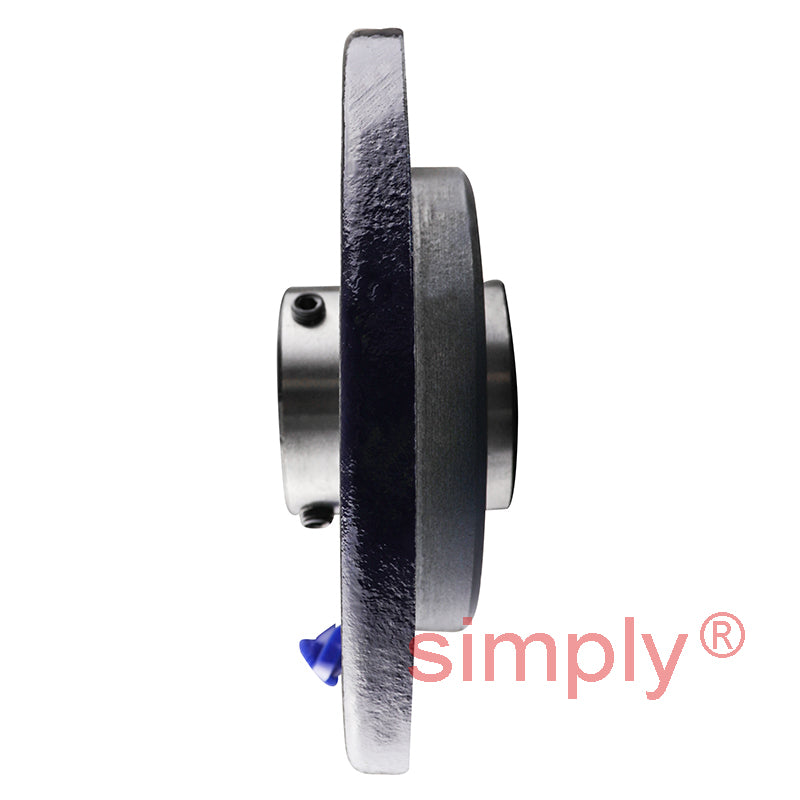

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 30mm
L = 125mm
H = 80mm
J = 100mm
G = 10mm
A = 20.5mm
A1 = 20.22mm
A5 = 9.5mm
B = 38.1mm
s = 15.93mm
d1 = 40mm
Dynamic load = 19500 N
Static load = 11300 N
Rec max speed = 5300 rpm
Weight = 1.1 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1030-30G+insonly"
> = 1030-30G Click Here<
/a> =
Casting group = 4
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
