SKU: FC30DEC-RHP

RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

€70.15 ex VAT
€70,15
ex VAT
In stock

Quantity Price Breaks

10 €62.43
20 €58.93
30 €58.22
40 €57.52
50 €56.82
75 €56.12
100 €52.61
200 €51.91
250 €51.21
500 €50.51
1000 €49.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
SKU: FC30DEC-RHP

RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

€70.15 ex VAT
€70,15
ex VAT

Description

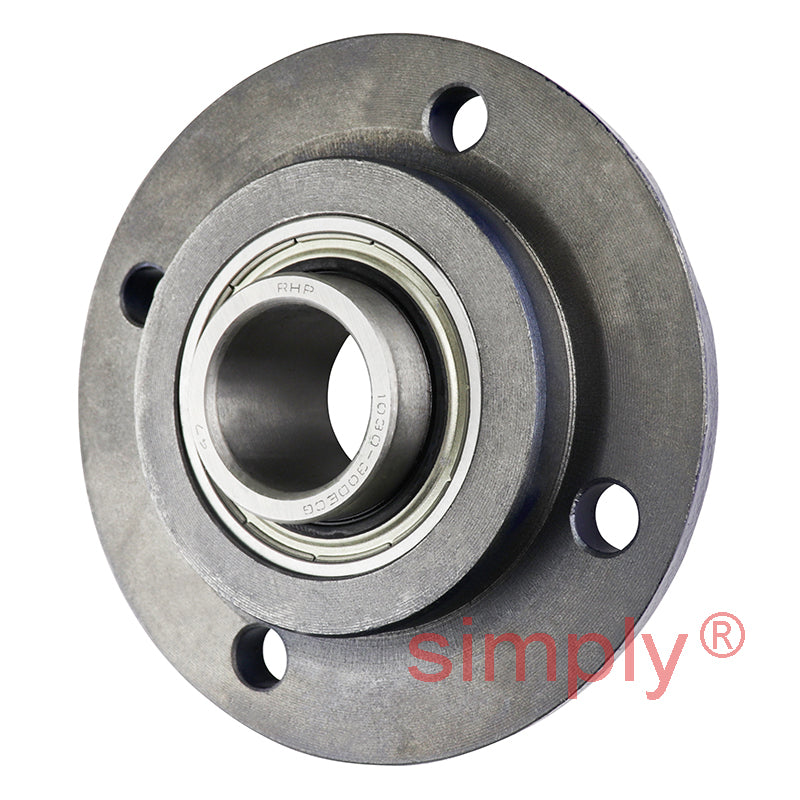

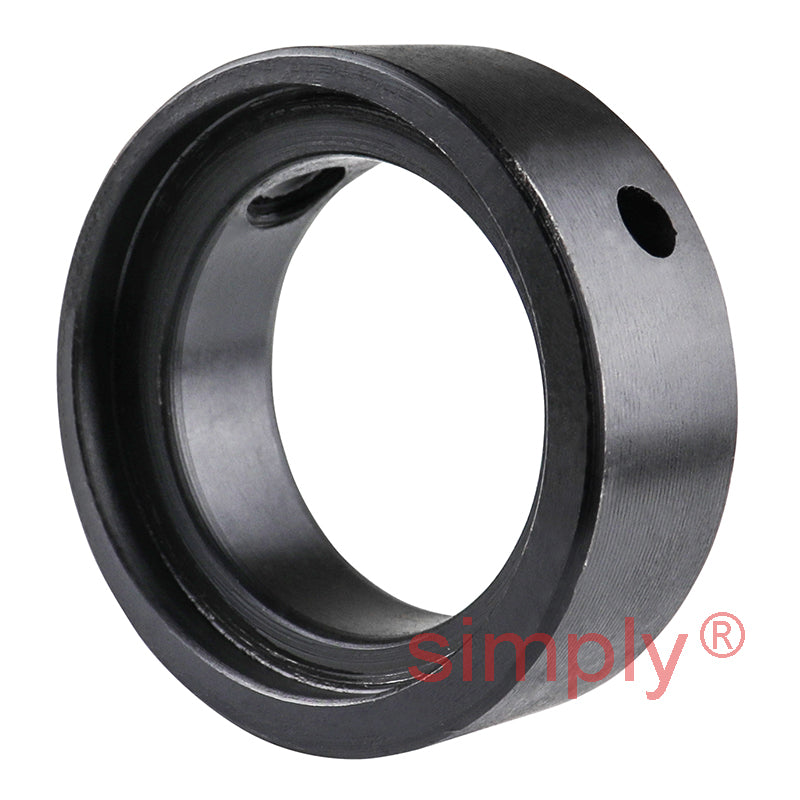

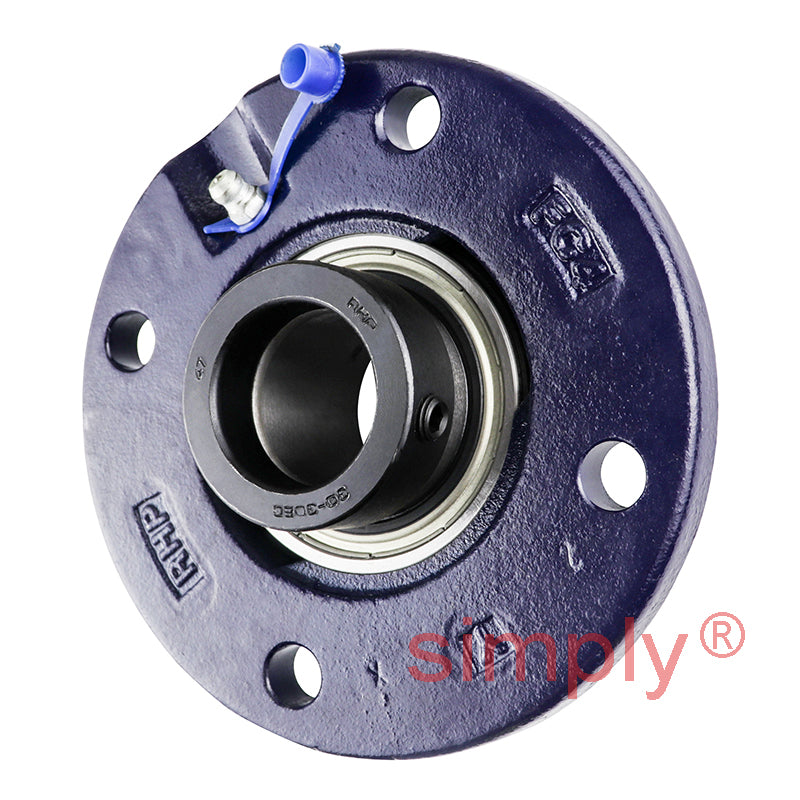

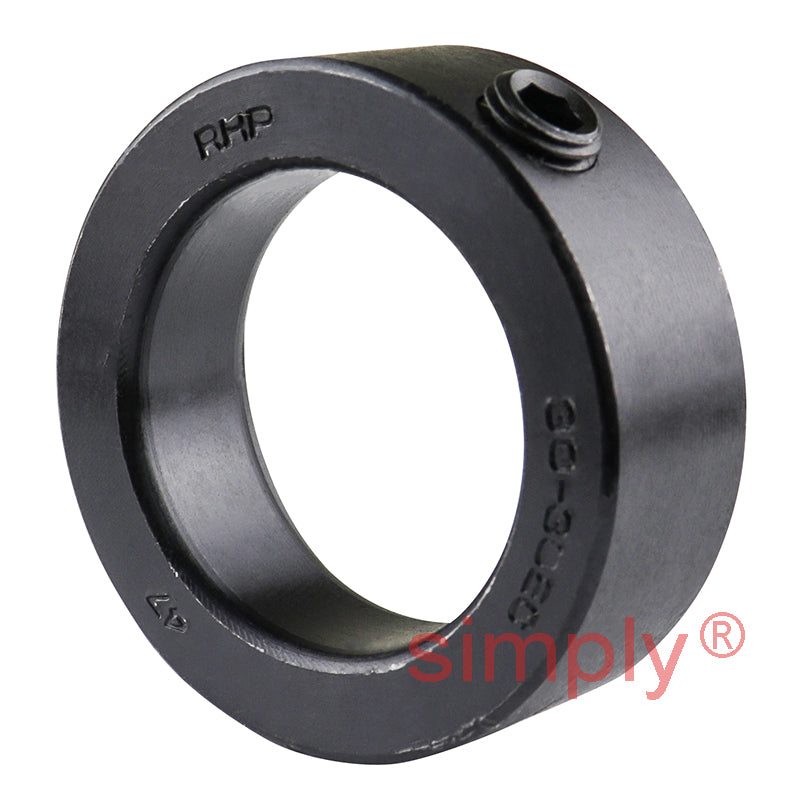

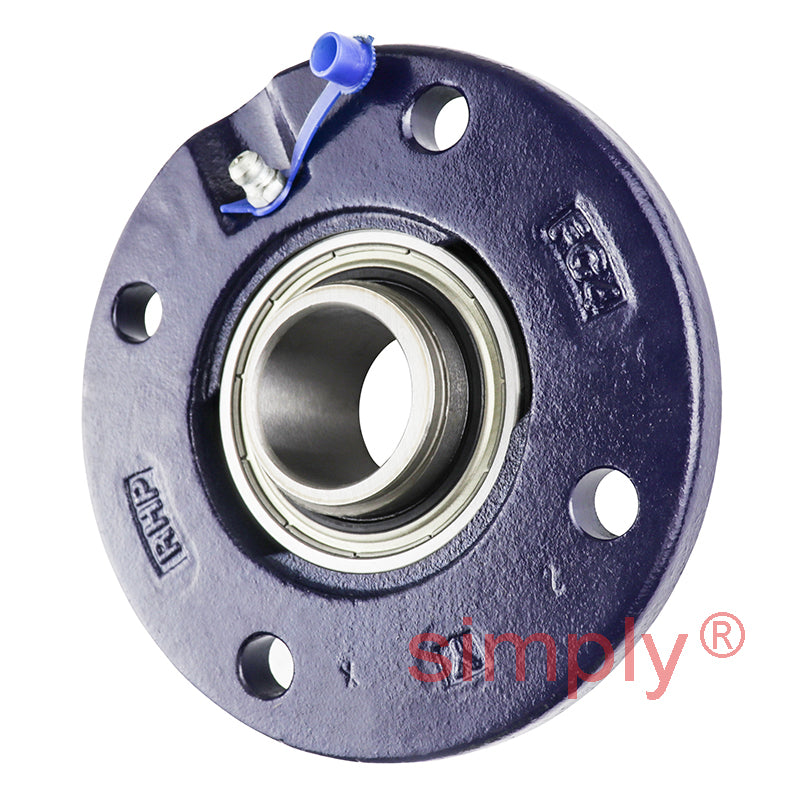

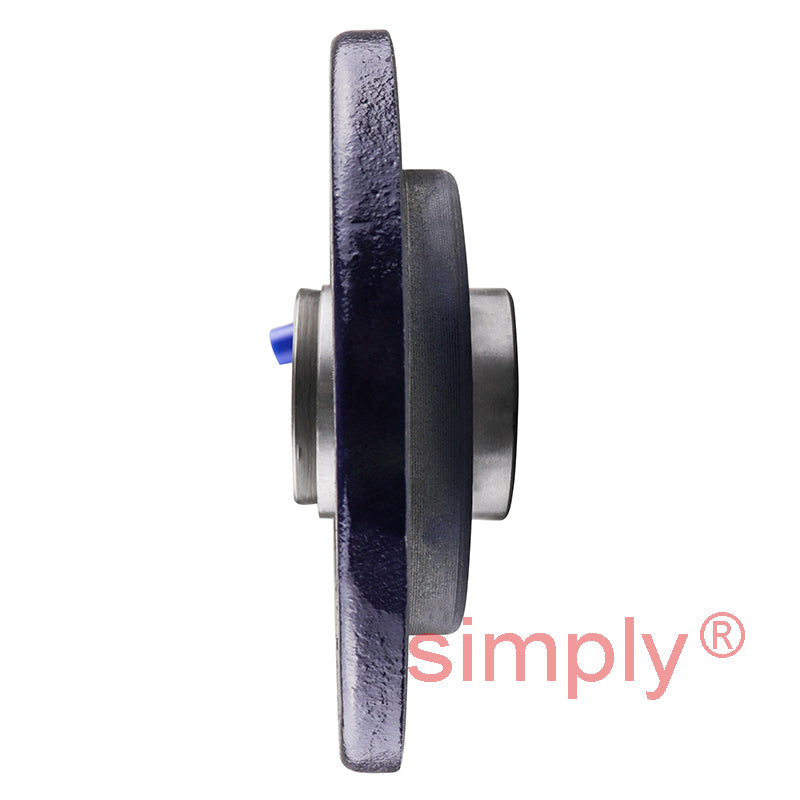

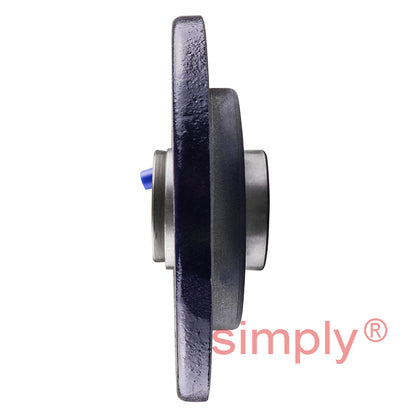

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Technical

Bore = 30mm
L = 125mm
H = 80mm
J = 100mm
G = 10mm
A = 20.5mm
A3 = 28.1mm
A5 = 9.5mm
B3 = 48.42mm
s2 = 18.32mm
d2 = 44.45mm
Dynamic load = 19500 N
Static load = 11300 N
Rec max speed = 5300 rpm
Weight = 1.1 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1030-30DECG+insonly"
> = 1030-30DECG Click Here<
/a> =
Casting group = 4
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
