SKU: FC35DEC-RHP

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

€80.56 ex VAT
€80,56
ex VAT
In stock

Quantity Price Breaks

10 €71.70
20 €67.67
30 €66.86
40 €66.06
50 €65.25
75 €64.45
100 €60.42
200 €59.61
250 €58.81
500 €58.00
1000 €56.39
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
SKU: FC35DEC-RHP

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

€80.56 ex VAT
€80,56
ex VAT

Description

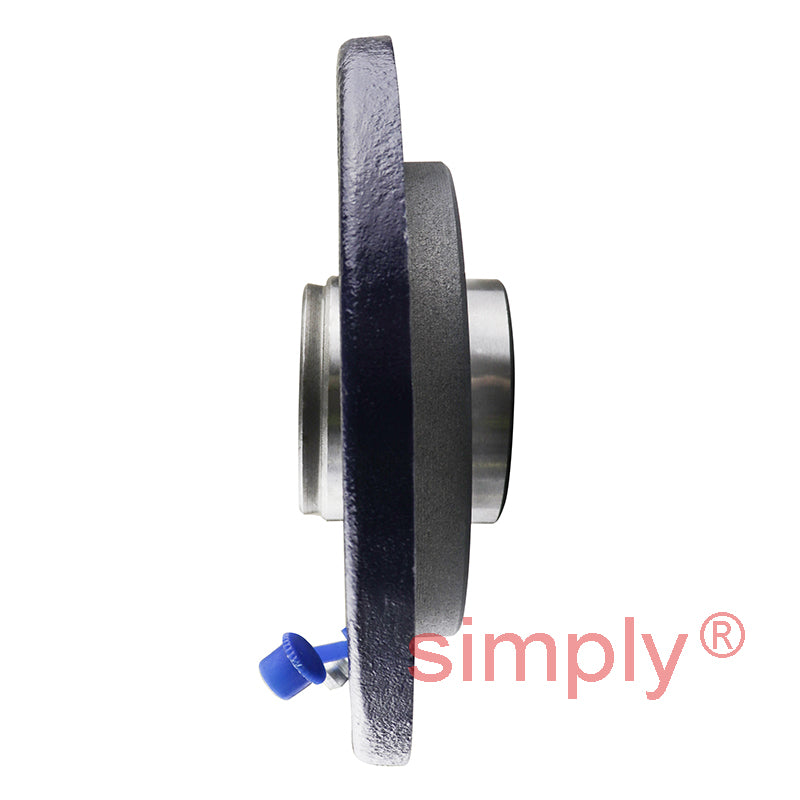

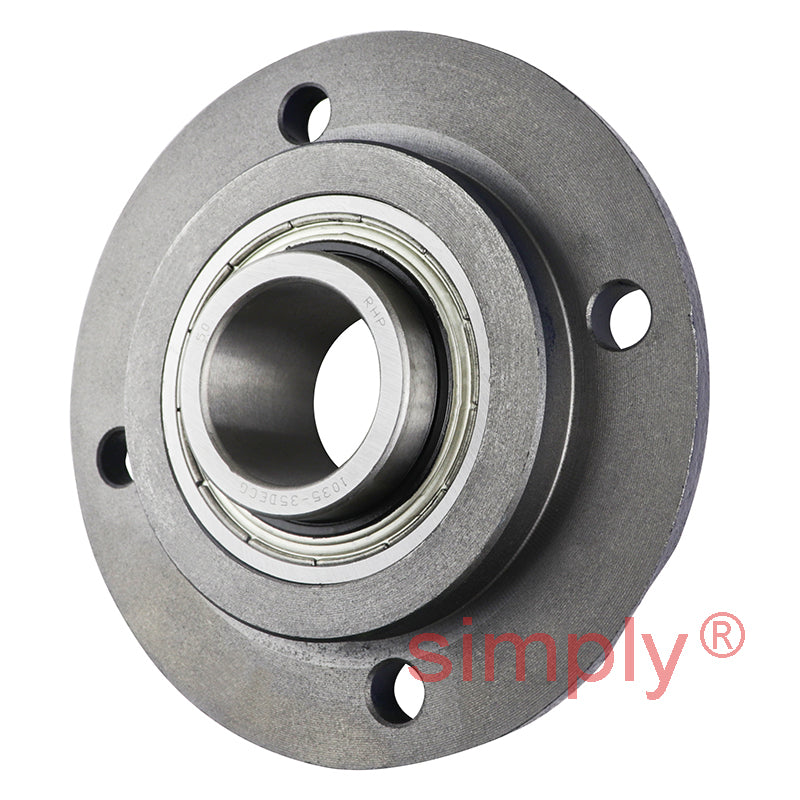

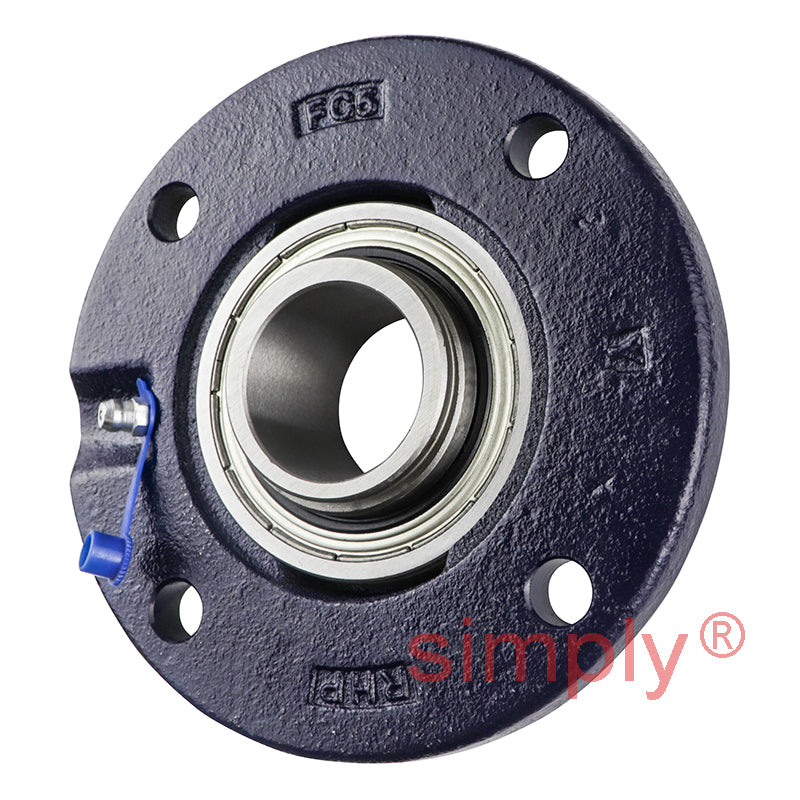

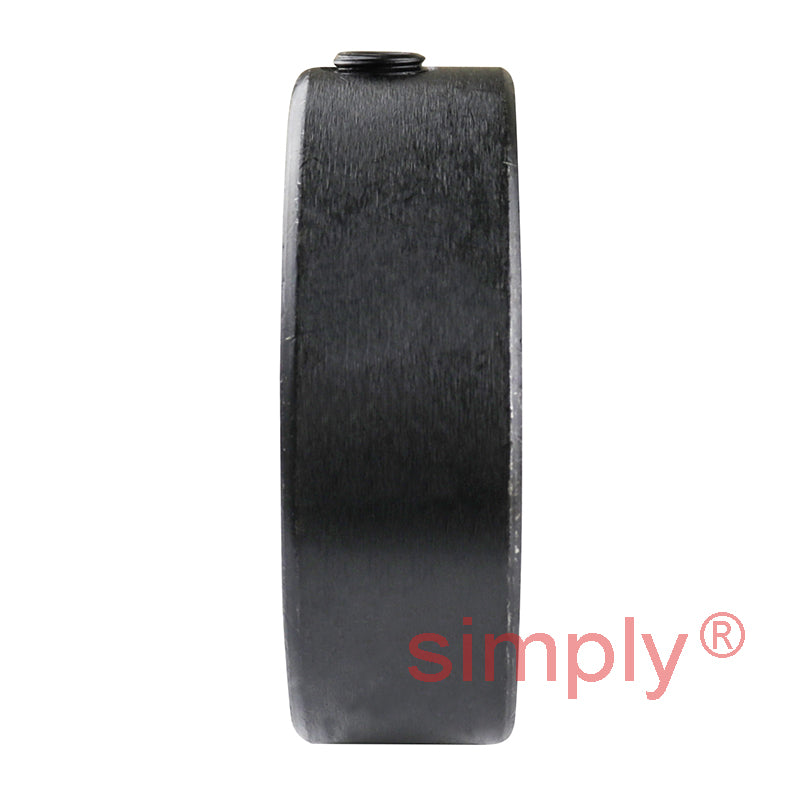

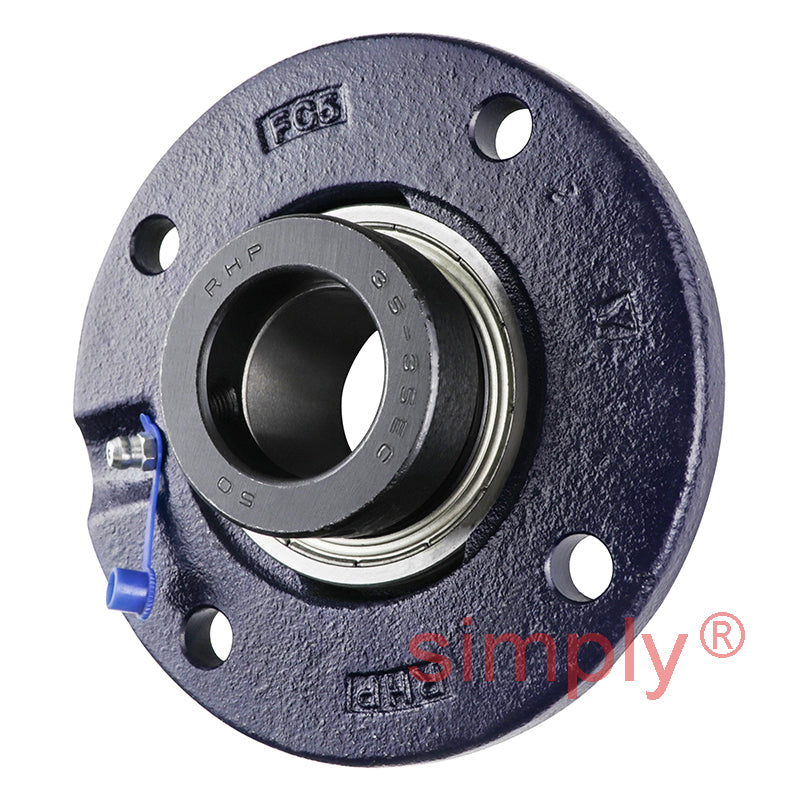

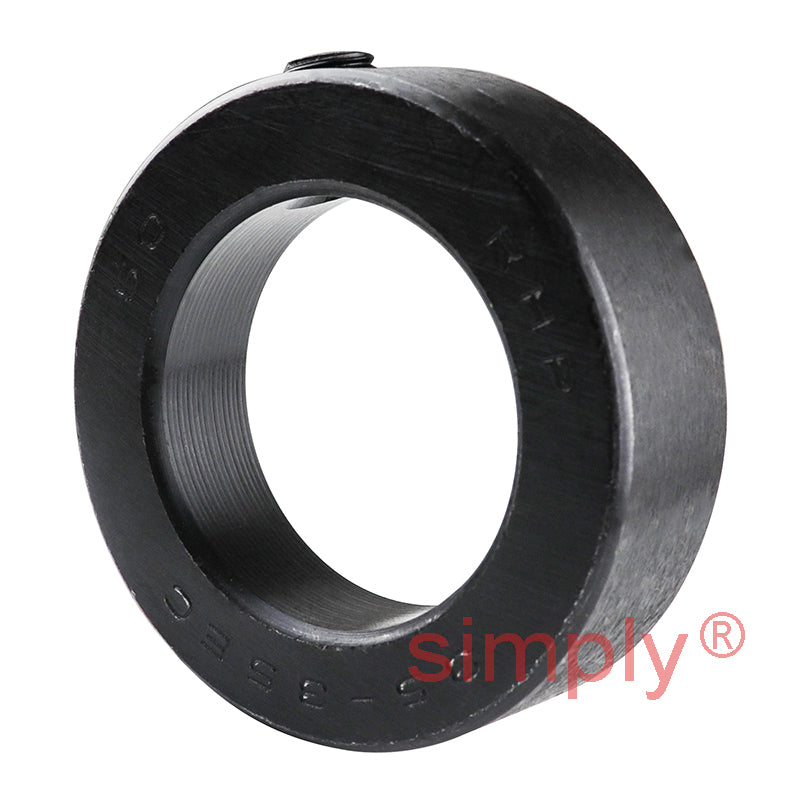

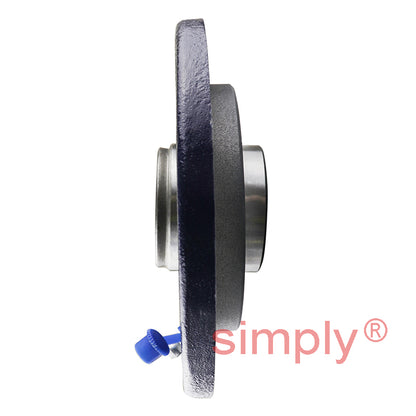

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Technical

Bore = 35mm
L = 135mm
H = 90mm
J = 110mm
G = 10mm
A = 20.5mm
A3 = 31.29mm
A5 = 10mm
B3 = 51.18mm
s2 = 18.89mm
d2 = 55.58mm
Dynamic load = 25700 N
Static load = 15300 N
Rec max speed = 4500 rpm
Weight = 1.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1035-35DECG+insonly"
> = 1035-35DECG Click Here<
/a> =
Casting group = 5
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
