SKU: FC35EC-RHP

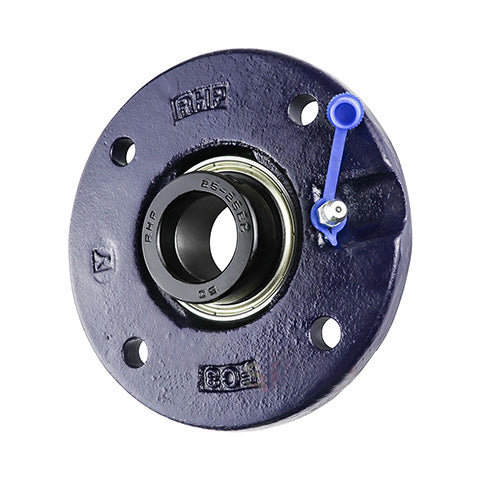

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
- Regular price
- €72.63 ex VAT
- Sale price
- €72,63
- Regular price
-
Not in stock
Quantity Price Breaks
10
€64.64
20
€61.01
30
€60.28
40
€59.56
50
€58.83
75
€58.10
100
€54.47
200
€53.75
250
€53.02
500
€52.29
1000
€50.84
SKU:
FC35EC-RHP
RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
- Regular price
- €72.63 ex VAT
- Sale price
- €72,63
- Regular price
-
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 35mm |
| L | = | 135mm |
| H | = | 90mm |
| J | = | 110mm |
| G | = | 10mm |
| A | = | 20.5mm |
| A2 | = | 28.33mm |
| A5 | = | 10mm |
| B2 | = | 38.88mm |
| s2 | = | 18.89mm |
| d2 | = | 55.58mm |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1235-35ECG+insonly" |
| > | = | 1235-35ECG Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
