SKU: FC40-RHP

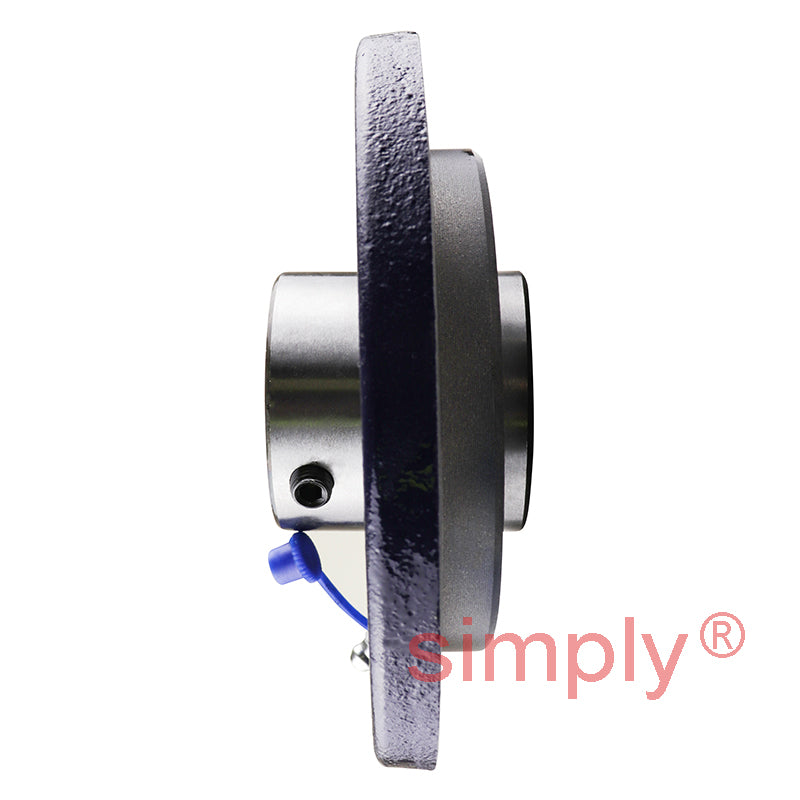

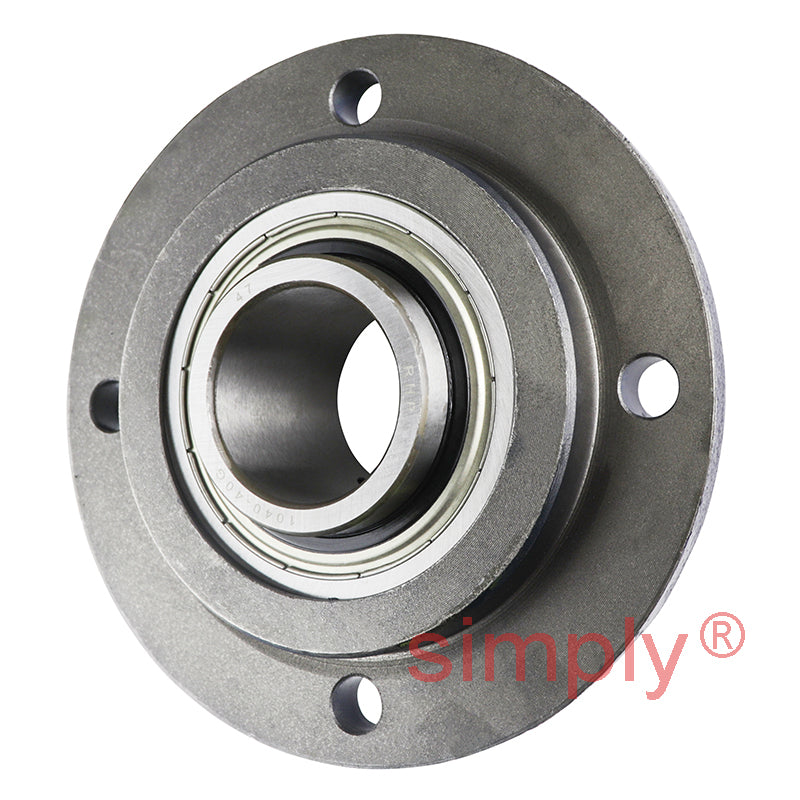

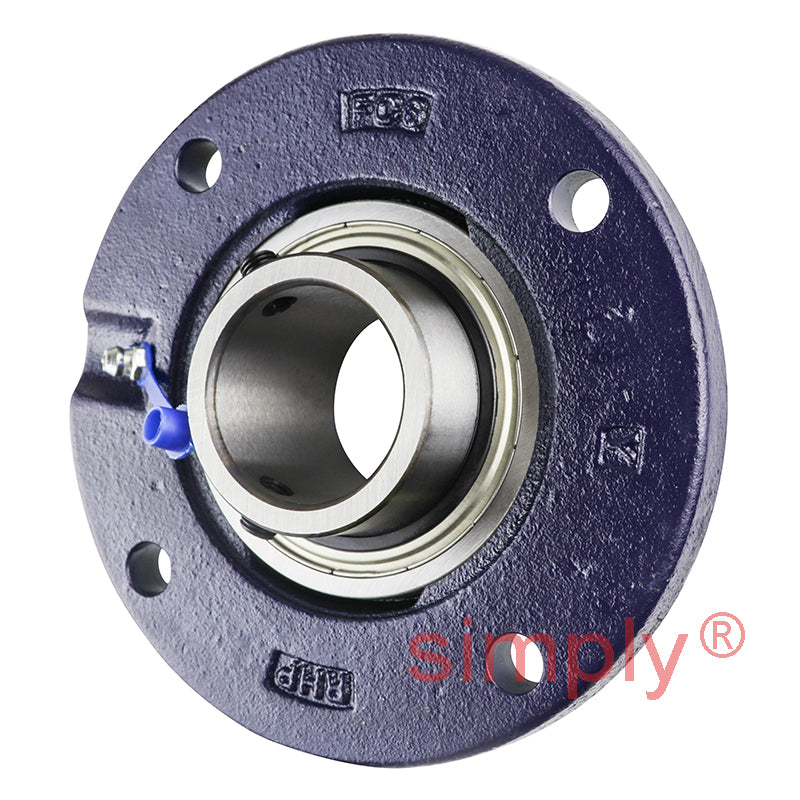

RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
- Regular price
- €81.19 ex VAT
- Sale price
- €81,19
- Regular price
-
In stock
Quantity Price Breaks
10
€72.26
20
€68.20
30
€67.39
40
€66.58
50
€65.76
75
€64.95
100
€60.89
200
€60.08
250
€59.27
500
€58.46
1000
€56.83
SKU:
FC40-RHP
RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
- Regular price
- €81.19 ex VAT
- Sale price
- €81,19
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 40mm |
| L | = | 145mm |
| H | = | 100mm |
| J | = | 120mm |
| G | = | 10mm |
| A | = | 23mm |
| A1 | = | 29.18mm |
| A5 | = | 11.5mm |
| B | = | 49.23mm |
| s | = | 19.1mm |
| d1 | = | 52.7mm |
| Dynamic load | = | 32500 N |
| Static load | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 1.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1040-40G+insonly" |
| > | = | 1040-40G Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
