SKU: FC40DEC-RHP

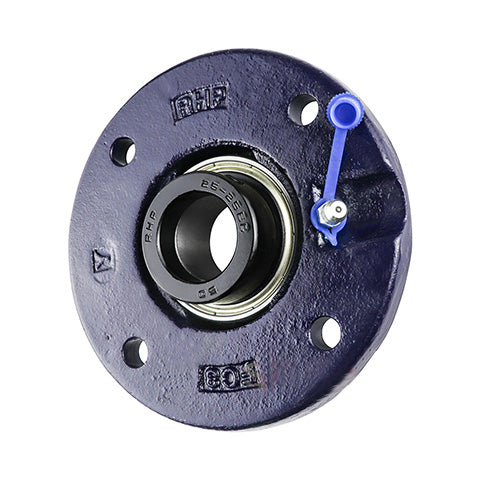

RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
- Regular price
- €95.49 ex VAT
- Sale price
- €95,49
- Regular price
-
Not in stock
Quantity Price Breaks
10
€84.99
20
€80.21
30
€79.26
40
€78.30
50
€77.35
75
€76.39
100
€71.62
200
€70.66
250
€69.71
500
€68.75
1000
€66.84
SKU:
FC40DEC-RHP
RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
- Regular price
- €95.49 ex VAT
- Sale price
- €95,49
- Regular price
-
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 40mm |
| L | = | 145mm |
| H | = | 100mm |
| J | = | 120mm |
| G | = | 10mm |
| A | = | 23mm |
| A3 | = | 33.88mm |
| A5 | = | 11.5mm |
| B3 | = | 56.34mm |
| s2 | = | 21.46mm |
| d2 | = | 60.3mm |
| Dynamic load | = | 32500 N |
| Static load | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 1.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1040-40DECG+insonly" |
| > | = | 1040-40DECG Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
