SKU: FC45A-RHP

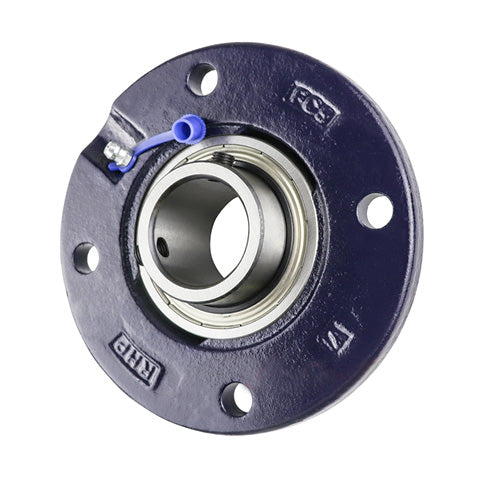

RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €91.21 ex VAT
- Sale price
- €91,21
- Regular price
-
Not in stock
Quantity Price Breaks
10
€81.18
20
€76.62
30
€75.70
40
€74.79
50
€73.88
75
€72.97
100
€68.41
200
€67.50
250
€66.58
500
€65.67
1000
€63.85
SKU:
FC45A-RHP
RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €91.21 ex VAT
- Sale price
- €91,21
- Regular price
-
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 45mm |
| L | = | 155mm |
| H | = | 105mm |
| J | = | 130mm |
| G | = | 12mm |
| A | = | 25mm |
| A1 | = | 28.18mm |
| A5 | = | 12mm |
| B1 | = | 41.18mm |
| s1 | = | 11.05mm |
| d1 | = | 57.3mm |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1245-45AG+insonly" |
| > | = | 1245-45AG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
