SKU: FC45DEC-RHP

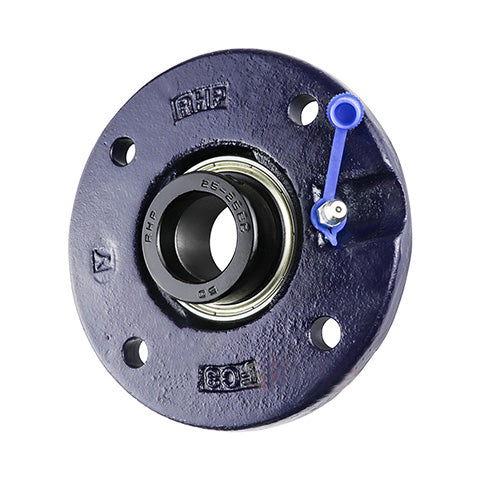

RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €110.54 ex VAT
- Sale price
- €110,54
- Regular price
-
Not in stock
Quantity Price Breaks
10
€98.38
20
€92.85
30
€91.75
40
€90.64
50
€89.54
75
€88.43
100
€82.91
200
€81.80
250
€80.69
500
€79.59
1000
€77.38
SKU:
FC45DEC-RHP
RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €110.54 ex VAT
- Sale price
- €110,54
- Regular price
-
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 45mm |
| L | = | 155mm |
| H | = | 105mm |
| J | = | 130mm |
| G | = | 12mm |
| A | = | 25mm |
| A3 | = | 32.88mm |
| A5 | = | 12mm |
| B3 | = | 56.34mm |
| s2 | = | 21.46mm |
| d2 | = | 63.5mm |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1045-45DECG+insonly" |
| > | = | 1045-45DECG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
