SKU: FC45W209PPB5
RHP FC45 Four Bolt Round Cast Iron Flanged Bearing Unit and W209PPB5 Insert
- Regular price
- €151.38 ex VAT
- Sale price
- €151,38
- Regular price
-
In stock
Quantity Price Breaks
10
€134.73
20
€127.16
30
€125.65
40
€124.13
50
€122.62
75
€121.10
100
€113.54
200
€112.02
250
€110.51
500
€108.99
1000
€105.97
SKU:
FC45W209PPB5
RHP FC45 Four Bolt Round Cast Iron Flanged Bearing Unit and W209PPB5 Insert
- Regular price
- €151.38 ex VAT
- Sale price
- €151,38
- Regular price
-
Description
|

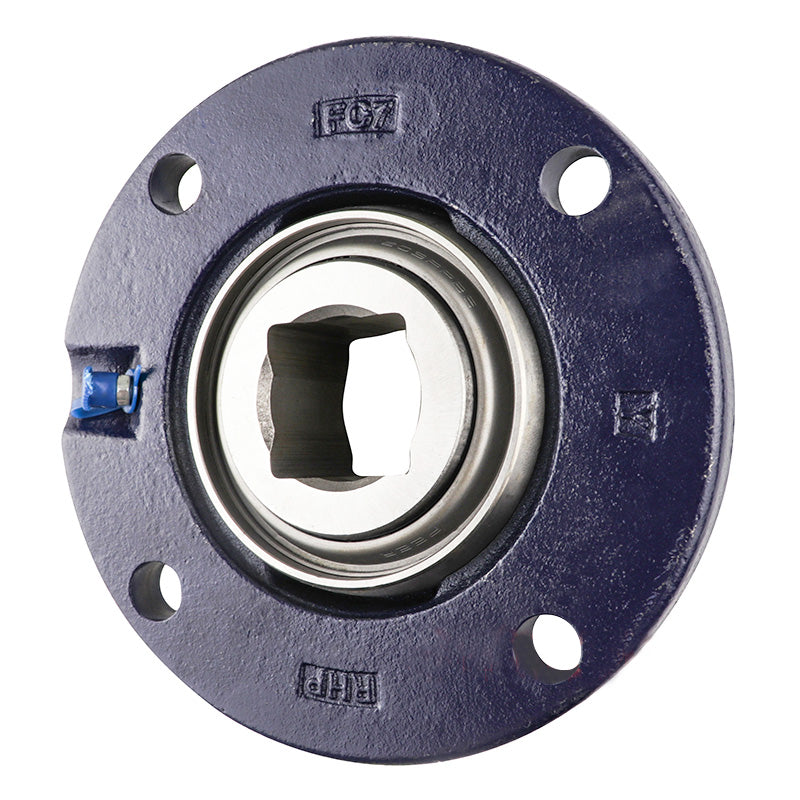

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 45mm |
| L | = | 155mm |
| H | = | 105mm |
| J | = | 130mm |
| G | = | 12mm |
| A | = | 25mm |
| A1 | = | 28.18mm |
| A5 | = | 12mm |
| B | = | 49.23mm |
| s | = | 19.1mm |
| d1 | = | 57.3mm |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=W209PPB5+insonly" |
| > | = | W209PPB5 Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
