SKU: FC50DEC-RHP

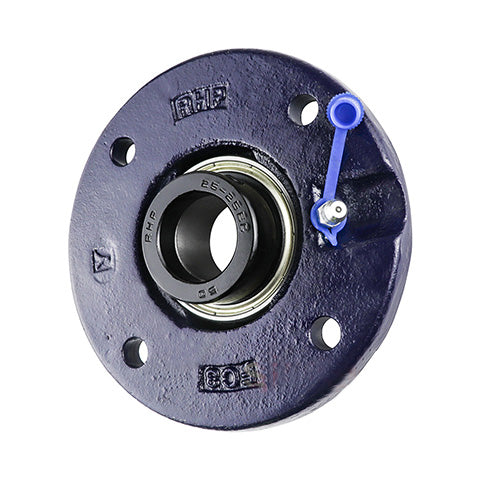

RHP FC50DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
- Regular price
- €119.81 ex VAT
- Sale price
- €119,81
- Regular price
-
Not in stock
Quantity Price Breaks
10
€106.63
20
€100.64
30
€99.44
40
€98.24
50
€97.05
75
€95.85
100
€89.86
200
€88.66
250
€87.46
500
€86.26
1000
€83.87
SKU:
FC50DEC-RHP
RHP FC50DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
- Regular price
- €119.81 ex VAT
- Sale price
- €119,81
- Regular price
-
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 50mm |
| L | = | 165mm |
| H | = | 110mm |
| J | = | 135mm |
| G | = | 12mm |
| A | = | 25mm |
| A3 | = | 37.14mm |
| A5 | = | 13mm |
| B3 | = | 62.73mm |
| s2 | = | 24.64mm |
| d2 | = | 69.85mm |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-50DECG+insonly" |
| > | = | 1050-50DECG Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
