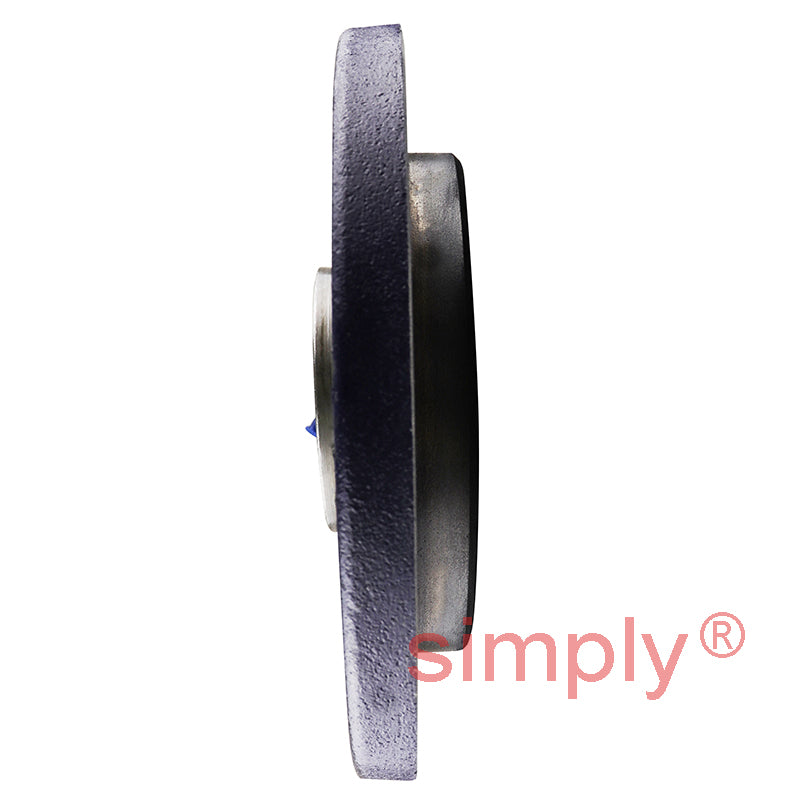

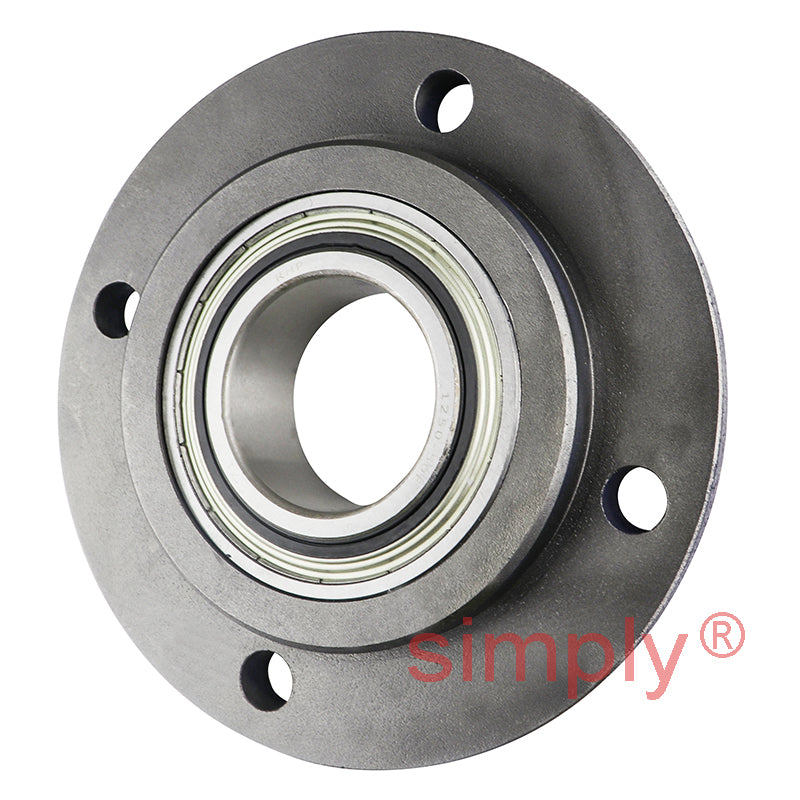

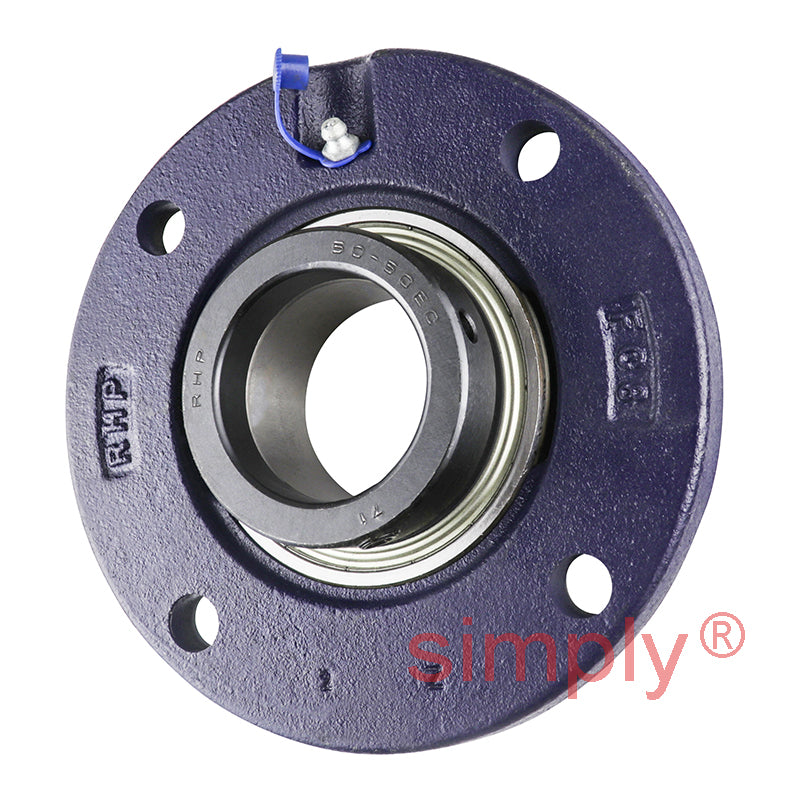

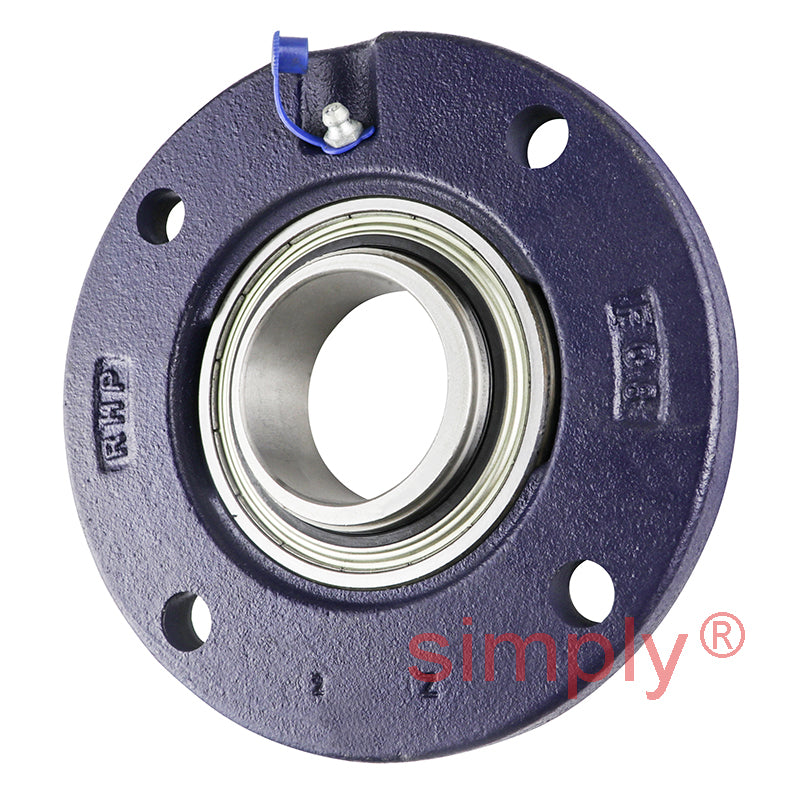

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

SKU: FC50EC-RHP

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

€109.83 ex VAT
€109,83
ex VAT
In stock

Quantity Price Breaks

10 €97.75
20 €92.26
30 €91.16
40 €90.06
50 €88.96
75 €87.86
100 €82.37
200 €81.27
250 €80.18
500 €79.08
1000 €76.88
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
SKU: FC50EC-RHP

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

€109.83 ex VAT
€109,83
ex VAT

Description

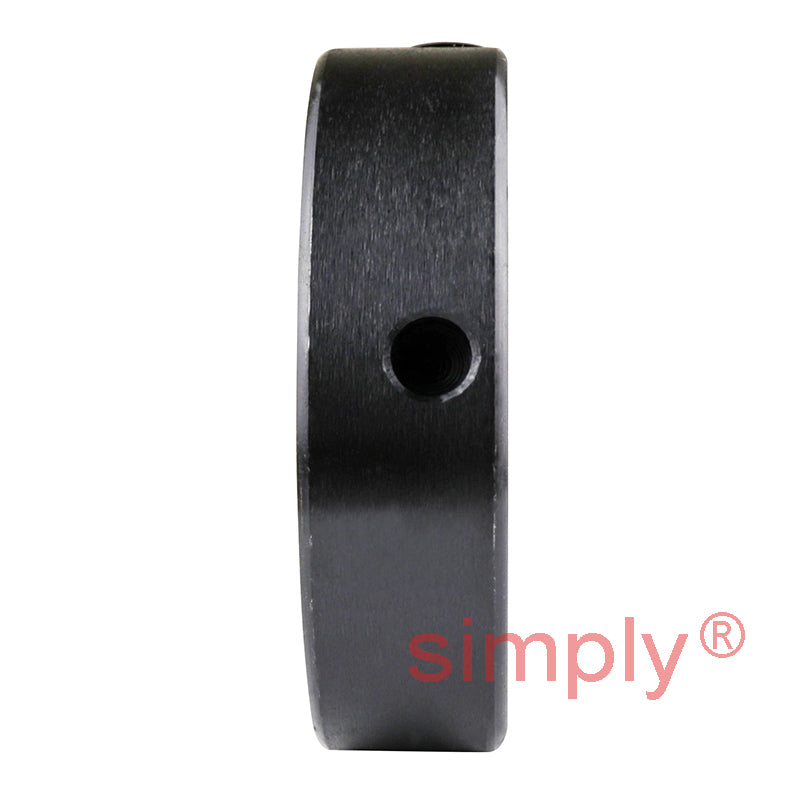

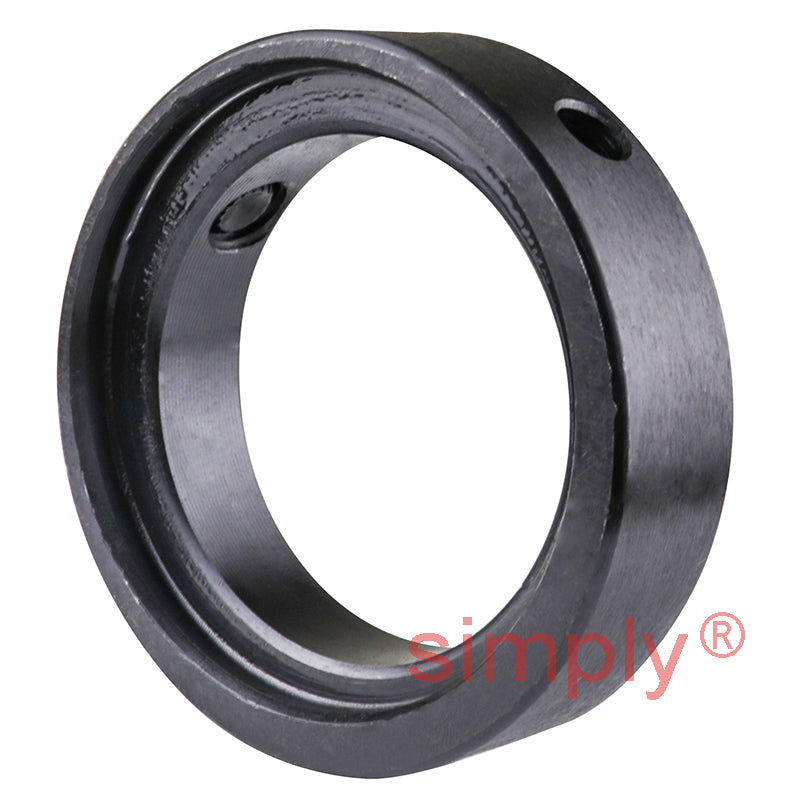

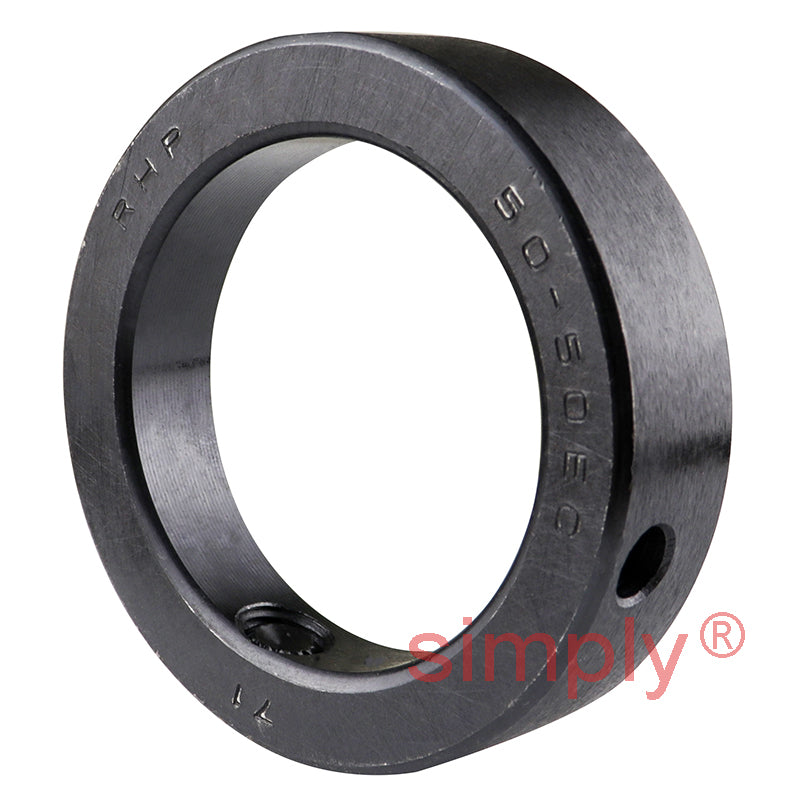

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Technical

Bore = 50mm
L = 165mm
H = 110mm
J = 135mm
G = 12mm
A = 25mm
A2 = 31.63mm
A5 = 13mm
B2 = 43.73mm
s2 = 24.64mm
d2 = 69.85mm
Dynamic load = 35000 N
Static load = 23200 N
Rec max speed = 3400 rpm
Weight = 2.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1250-50ECG+insonly"
> = 1250-50ECG Click Here<
/a> =
Casting group = 8
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
