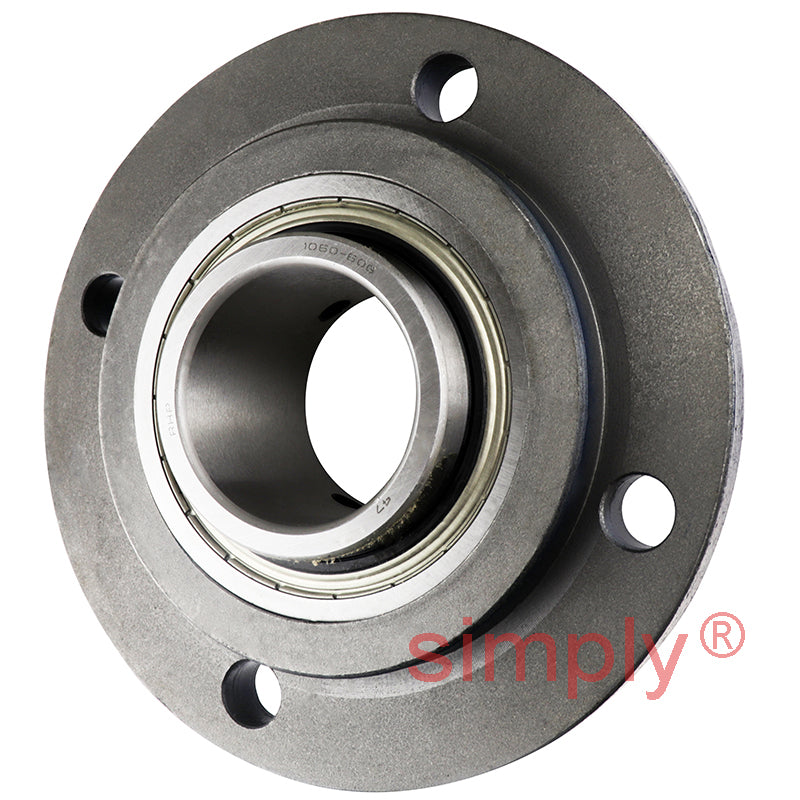

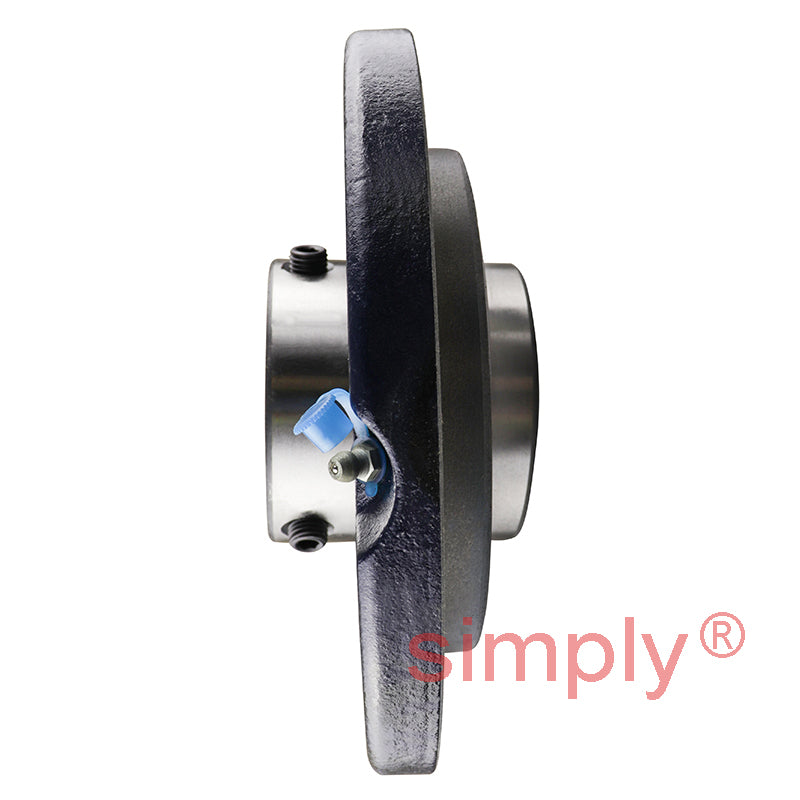

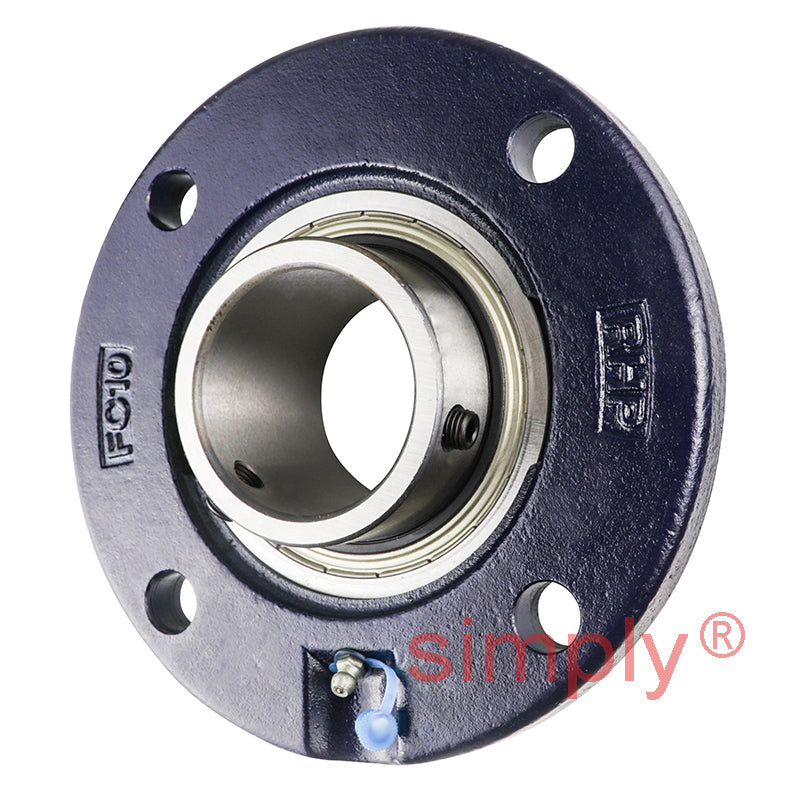

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

SKU: FC60-RHP

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

€171.27 ex VAT
€171,27
ex VAT
In stock

Quantity Price Breaks

10 €152.43
20 €143.87
30 €142.15
40 €140.44
50 €138.73
75 €137.02
100 €128.45
200 €126.74
250 €125.03
500 €123.31
1000 €119.89
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
SKU: FC60-RHP

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

€171.27 ex VAT
€171,27
ex VAT

Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 60mm
L = 195mm
H = 135mm
J = 160mm
G = 16mm
A = 29mm
A1 = 38.65mm
A5 = 16mm
B = 65.07mm
s = 25.45mm
d1 = 75.34mm
Dynamic load = 48000 N
Static load = 33000 N
Rec max speed = 2800 rpm
Weight = 4.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1060-60G+insonly"
> = 1060-60G Click Here<
/a> =
Casting group = 10
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
