SKU: FC7/8-RHP

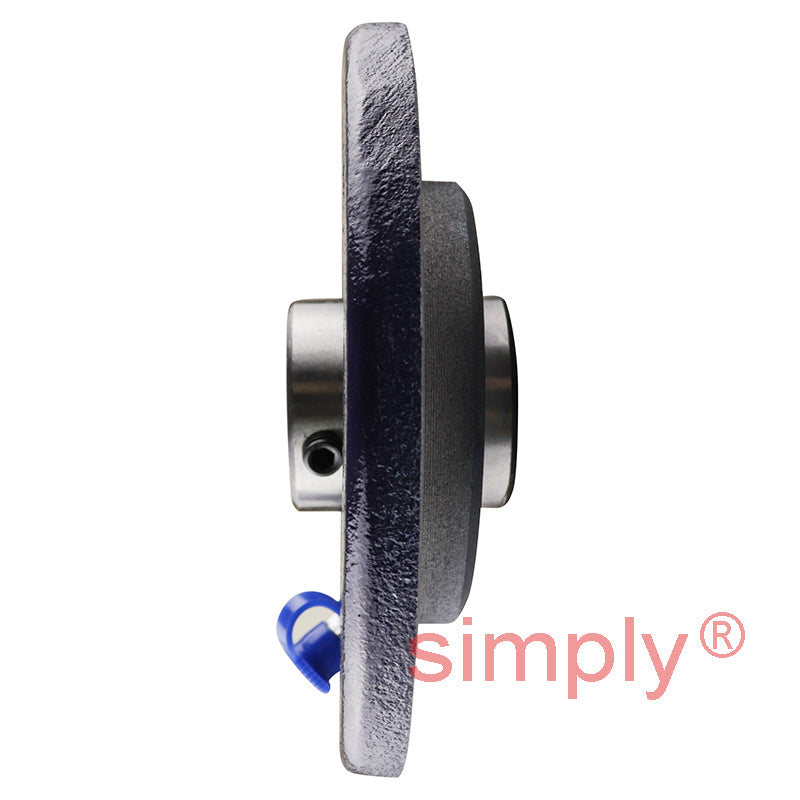

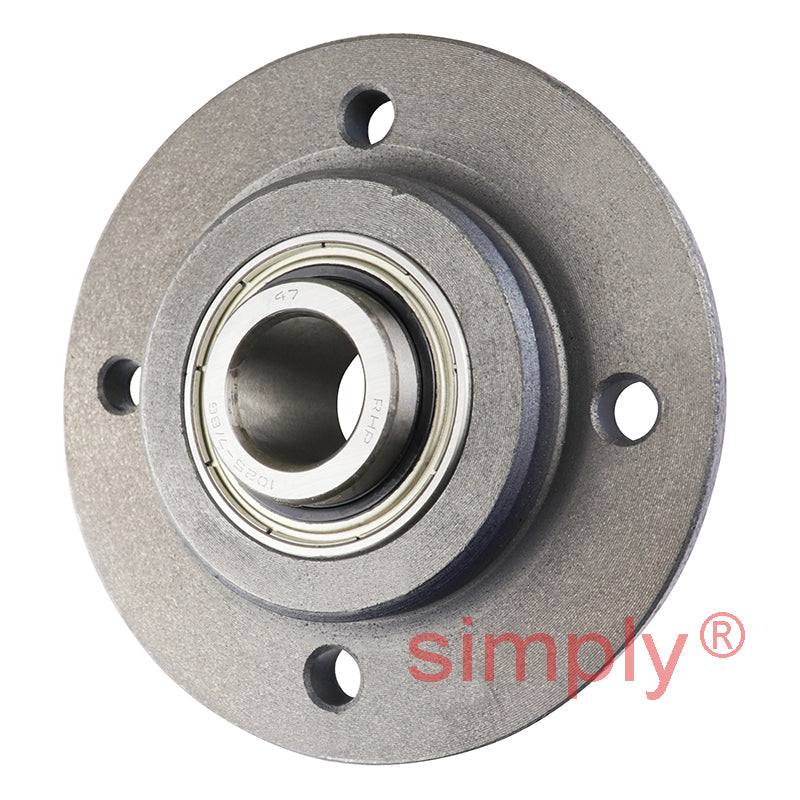

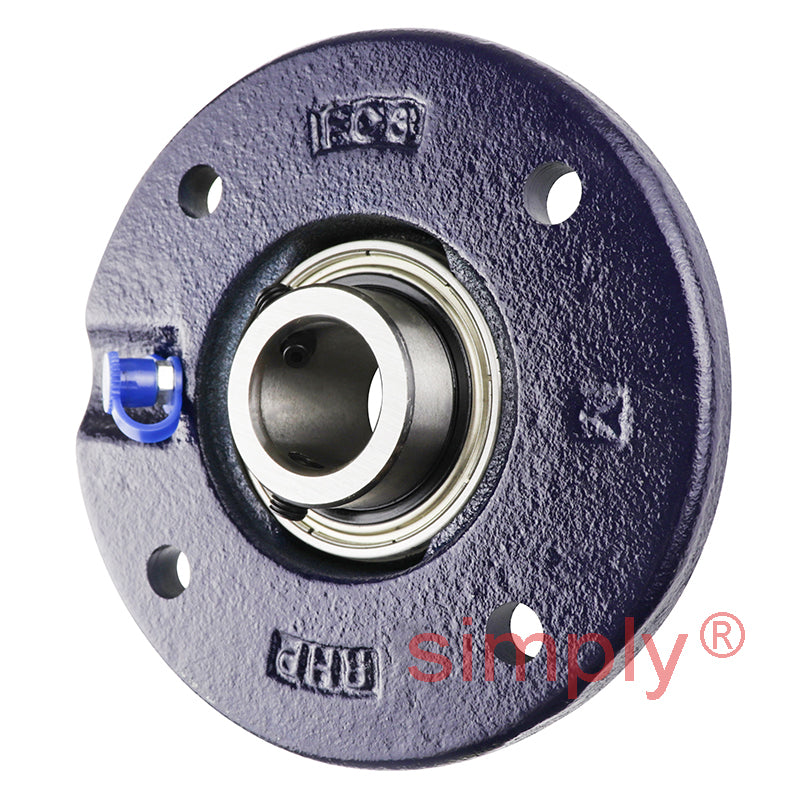

RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert
- Regular price
- €54.11 ex VAT
- Sale price
- €54,11
- Regular price
-
In stock
Quantity Price Breaks
10
€48.16
20
€45.45
30
€44.91
40
€44.37
50
€43.83
75
€43.29
100
€40.58
200
€40.04
250
€39.50
500
€38.96
1000
€37.88
SKU:
FC7/8-RHP
RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert
- Regular price
- €54.11 ex VAT
- Sale price
- €54,11
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

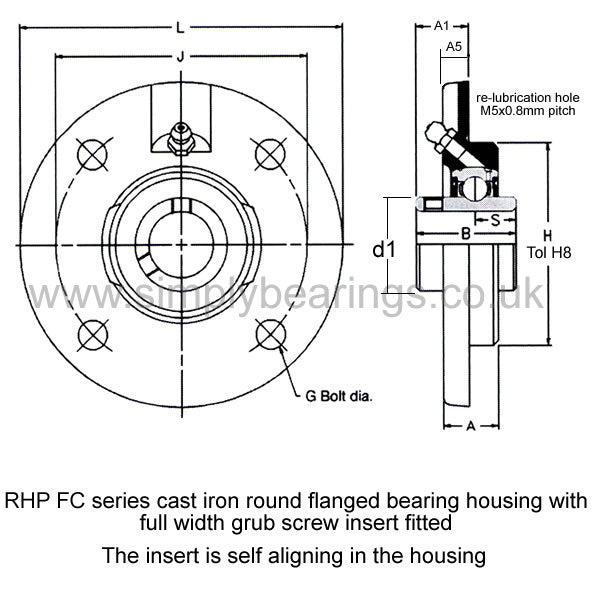

Technical
| Bore | = | 7/8 inch |
| L | = | 4.528 inch |
| H | = | 2.756 inch |
| J | = | 3.543 inch |
| G | = | 0.3125 inch |
| A | = | 0.748 inch |
| A1 | = | 0.683 inch |
| A5 | = | 0.354 inch |
| B | = | 1.343 inch |
| s | = | 0.564 inch |
| d1 | = | 1.339 inch |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1025-7/8G+insonly" |
| > | = | 1025-7/8G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
