SKU: FHRE-2-3/4

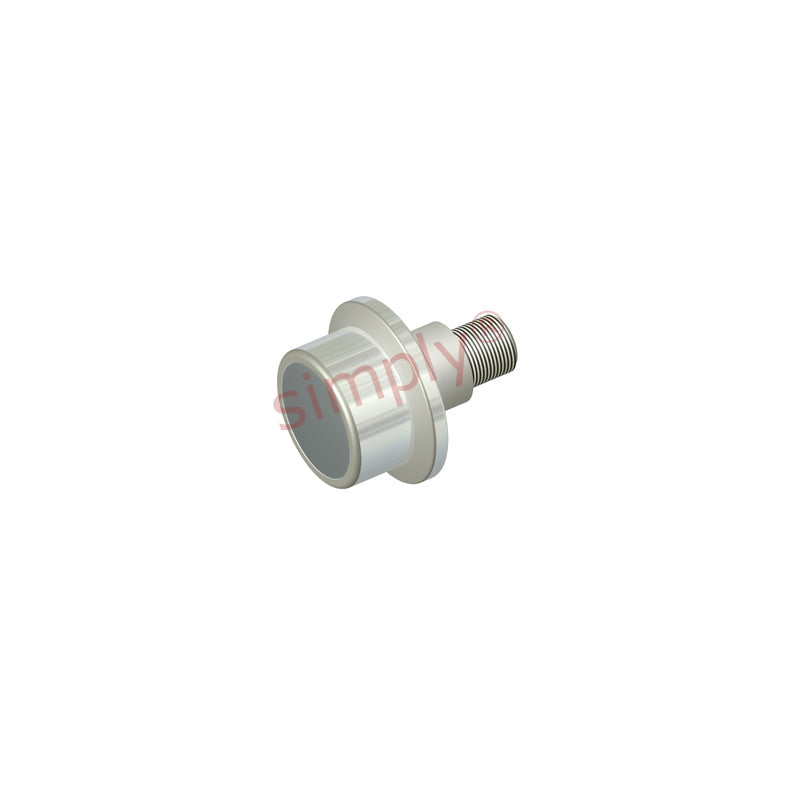

Major Brand FHRE2-3/4 Hex Head Flanged Eccentric Hi-Roller Bearing 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €223.69 ex VAT
- Sale price
- €223,69
- Regular price
-
Not in stock
Quantity Price Breaks
3
€199.08
4
€187.90
9
€185.66
19
€183.43
29
€181.19
39
€178.95
49
€167.77
59
€165.53
249
€163.29
499
€161.06
999
€156.58
SKU:
FHRE-2-3/4
Major Brand FHRE2-3/4 Hex Head Flanged Eccentric Hi-Roller Bearing 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €223.69 ex VAT
- Sale price
- €223,69
- Regular price
-
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 2.75 inch |
| B | = | 1.688 inch |
| C | = | 3.438 inch |
| D | = | 0.594 inch |
| L | = | 2.25 inch |
| M | = | 1-1/2 inch |
| Thread class 2A N | = | 1-14 UNS |
| R | = | 1.687 inch |
| S | = | 0.062 inch |
| T | = | 1.375 inch |
| U | = | 1.105 inch |
| W | = | 0.03 inch |
| Basic dynamic rating | = | 5190 lbs |
| Dynamic thrust load rating | = | 1400 lbs |
| Max static capacity | = | 2270 lbs |
