SKU: FL03-PBC

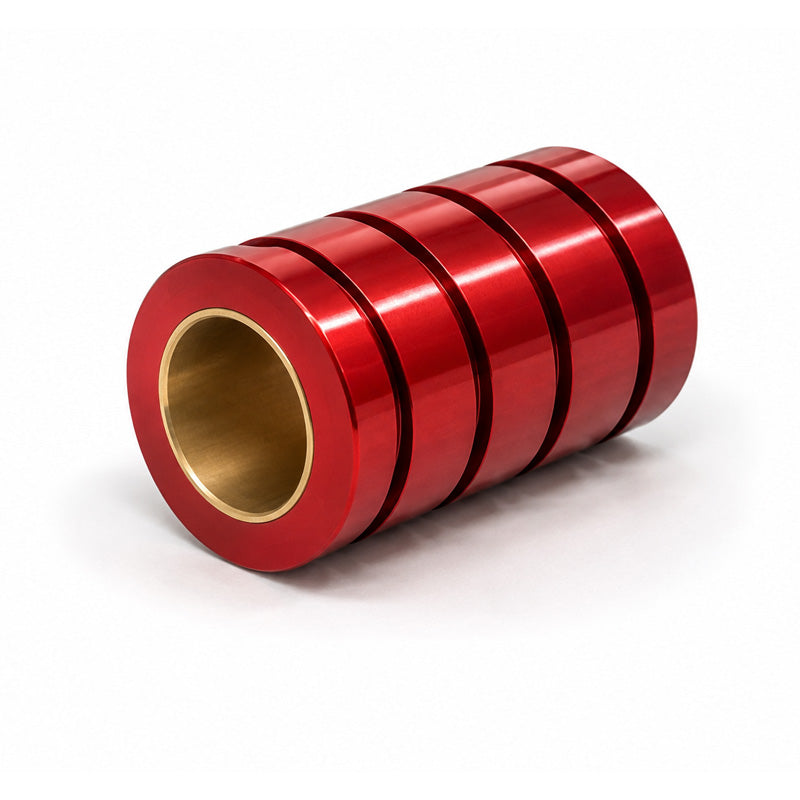

PBC FL 03 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.187x0.375x0.563 inch (Allow 2-3 Days)
- Regular price
- €36.62 ex VAT
- Sale price
- €36,62
- Regular price
-
Not in stock
Quantity Price Breaks
3
€32.59
5
€30.76
9
€30.39
19
€30.03
49
€29.66
74
€29.30
99
€27.47
199
€27.10
249
€26.73
499
€26.37
999
€25.63
SKU:
FL03-PBC
PBC FL 03 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.187x0.375x0.563 inch (Allow 2-3 Days)
- Regular price
- €36.62 ex VAT
- Sale price
- €36,62
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical
| Inside Diameter | = | 4.76mm = 0.187 (3/16) inch |
| Outside Diameter | = | 9.53mm = 0.375 (3/8) inch |
| Width | = | 14.29mm = 0.563 (9/16) inch |
| Nominal Bore Size | = | 3/16 inch |
| Effective Surface Area (Square Inch) | = | 0.11kg |
| Max Static Load | = | 0.98kN |
| Weight | = | 0.001kg |
