SKU: FL06-PBC

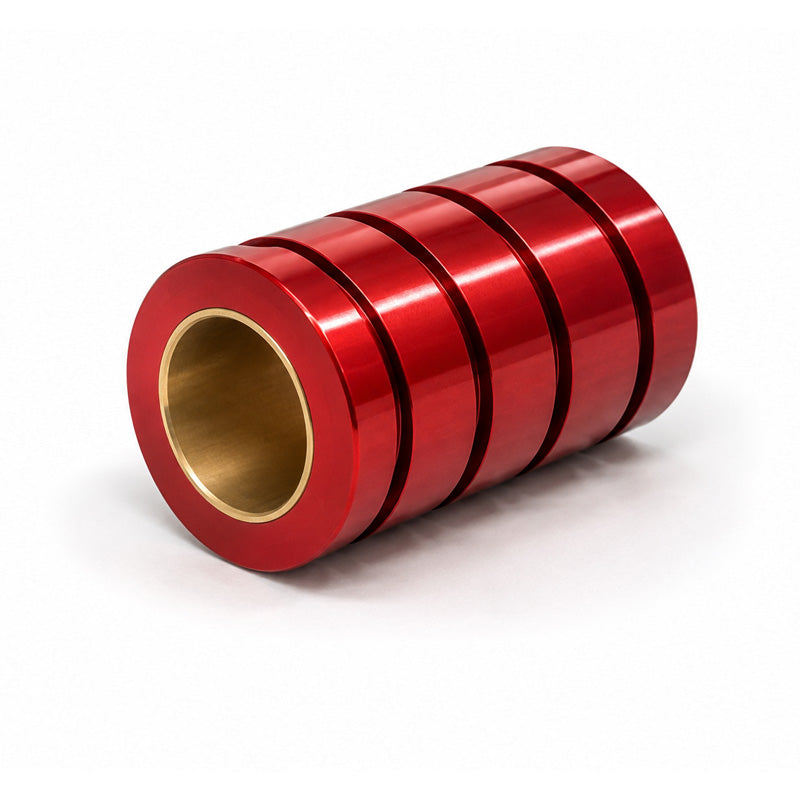

PBC FL 06 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
- Regular price
- €39.76 ex VAT
- Sale price
- €39,76
- Regular price
-
Not in stock
Quantity Price Breaks
3
€35.39
5
€33.40
9
€33.00
19
€32.60
49
€32.21
74
€31.81
99
€29.82
199
€29.42
249
€29.02
499
€28.63
999
€27.83
SKU:
FL06-PBC
PBC FL 06 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
- Regular price
- €39.76 ex VAT
- Sale price
- €39,76
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical
| Inside Diameter | = | 9.53mm = 0.375 (3/8) inch |
| Outside Diameter | = | 15.88mm = 0.625 (5/8) inch |
| Width | = | 22.23mm = 0.875 (7/8) inch |
| Nominal Bore Size | = | 3/8 inch |
| Effective Surface Area (Square Inch) | = | 0.34kg |
| Max Static Load | = | 4.53kN |
| Weight | = | 0.007kg |
