SKU: FL10-PBC

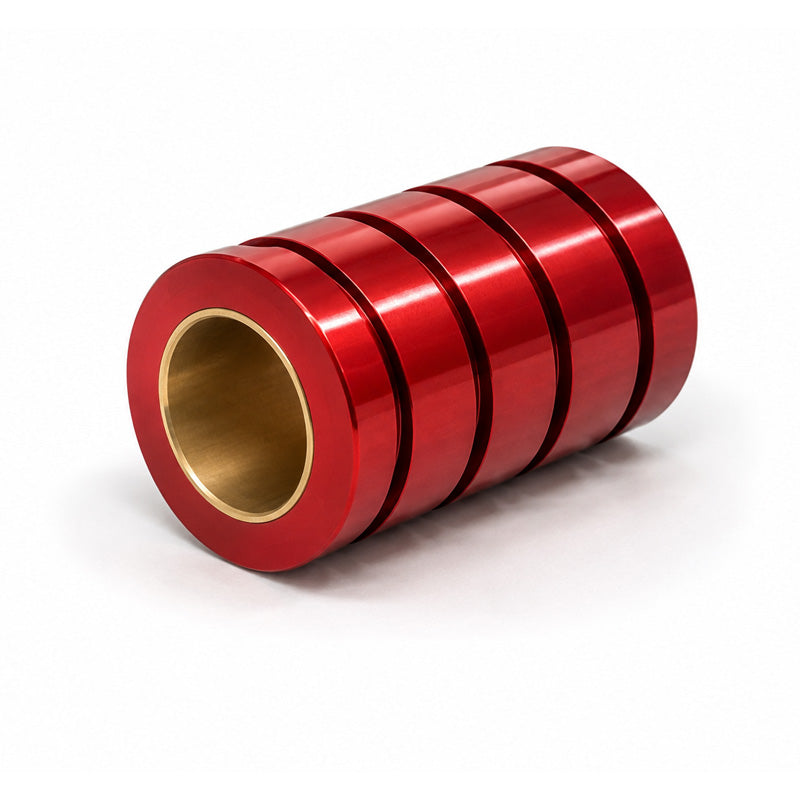

PBC FL 10 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
- Regular price
- €44.73 ex VAT
- Sale price
- €44,73
- Regular price
-
In stock
Quantity Price Breaks
3
€39.81
5
€37.57
9
€37.13
19
€36.68
49
€36.23
74
€35.78
99
€33.55
199
€33.10
249
€32.65
499
€32.21
999
€31.31
SKU:
FL10-PBC
PBC FL 10 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
- Regular price
- €44.73 ex VAT
- Sale price
- €44,73
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical

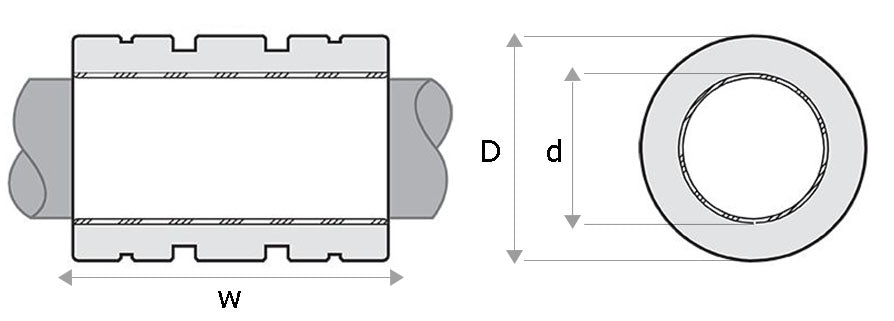

| Inside Diameter | = | 15.88mm = 0.625 (5/8) inch |
| Outside Diameter | = | 28.58mm = 1.125 (1-1/8) inch |
| Width | = | 38.1mm = 1.5 (1-1/2) inch |
| Nominal Bore Size | = | 5/8 inch |
| Effective Surface Area (Square Inch) | = | 0.98kg |
| Max Static Load | = | 13.07kN |
| Weight | = | 0.041kg |
