SKU: FLN48-PBC
PBC FLN 48 Imperial Open Precision Linear Plain Bearings with Frelon Gold 3x4.5x6 inch (Allow 2-3 Days)
- Regular price
- €725.12 ex VAT
- Sale price
- €725,12
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€645.36
5
€609.10
9
€601.85
19
€594.60
49
€587.35
74
€580.10
99
€543.84
199
€536.59
249
€529.34
499
€522.09
999
€507.58
Description

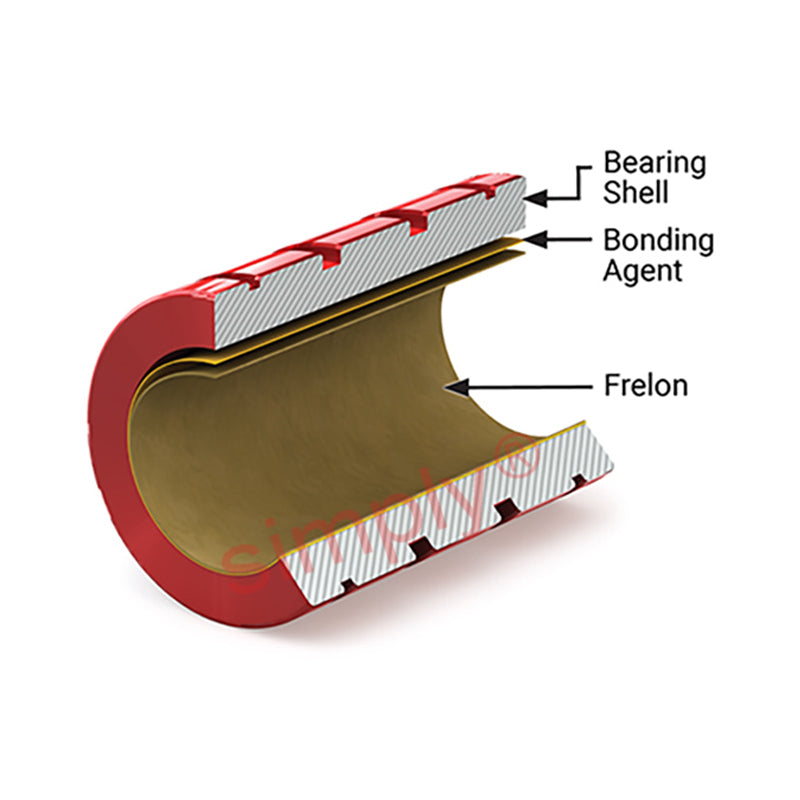

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical
| Inside Diameter (A) | = | 76.2mm = 3 inch |
| Outside Diameter (B) | = | 114.3mm = 4.5 (4-1/2) inch |
| Width (C) | = | 152.4mm = 6 inch |
| Nominal Bore Size | = | 3 inch |
| Effective Surface Area (Square Inch) | = | 18.8 inch |
| Max Static Load | = | 250.67kN |
| Weight | = | 2.229kg |
