SKU: FS-05-MB

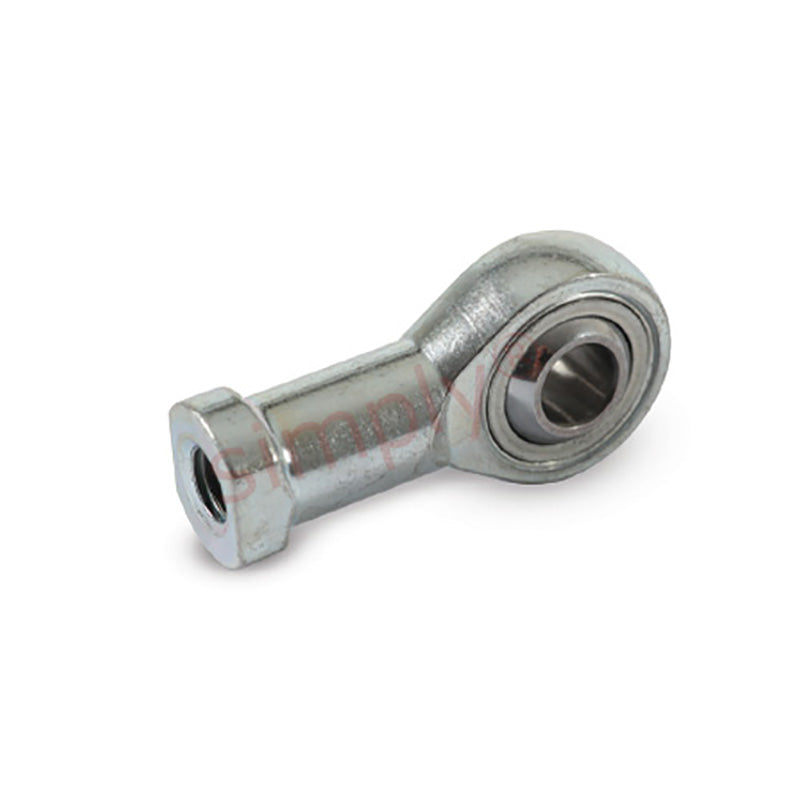

Branded FS-05 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/16 UNF Thread
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
In stock
Quantity Price Breaks
10
€17.03
19
€16.07
29
€15.88
39
€15.69
49
€15.50
74
€15.30
99
€14.35
199
€14.16
249
€13.96
499
€13.77
999
€13.39
SKU:
FS-05-MB
Branded FS-05 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/16 UNF Thread
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
Description
|
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c Benefits: High shock loads, extended wear life, no maintenance |
Technical
| Bore size | = | 5/16 inch |
| Thread | = | 5/16 UNF |
| W | = | 0.437 inch |
| H | = | 0.344 inch |
| D | = | 1 inch |
| L1 | = | 1.375 inch |
| L2 | = | 0.75 inch |
| O | = | 11.35mm |
| AF | = | 0.437 inch |
| Static load | = | 11100 N |
