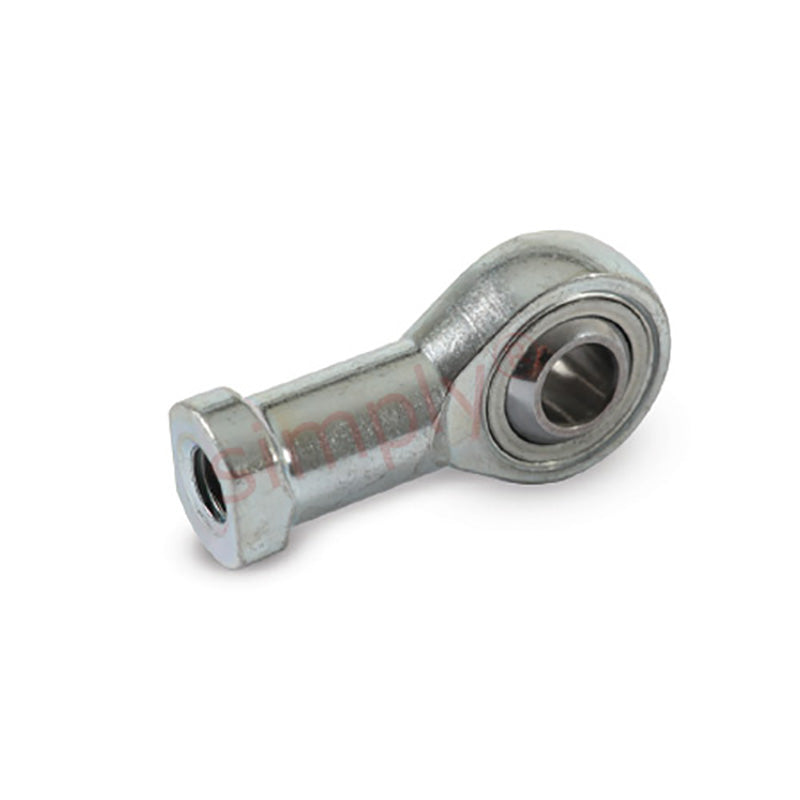

Branded FS-08F Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 1/2 BSF Thread - Allow 7-10 Days

SKU: FS-08F-MB

Branded FS-08F Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 1/2 BSF Thread - Allow 7-10 Days

€42.06 ex VAT
€42,06
ex VAT
Not in stock

Quantity Price Breaks

10 €37.43
19 €35.33
29 €34.91
39 €34.49
49 €34.07
74 €33.65
99 €31.55
199 €31.12
249 €30.70
499 €30.28
999 €29.44
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded FS-08F Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 1/2 BSF Thread - Allow 7-10 Days
SKU: FS-08F-MB

Branded FS-08F Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 1/2 BSF Thread - Allow 7-10 Days

€42.06 ex VAT
€42,06
ex VAT

Description

FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c
Benefits: High shock loads, extended wear life, no maintenance

Technical

Bore size = 1/2 inch
Thread = 1/2 BSF
W = 0.625 inch
H = 0.5 inch
D = 1.375 inch
L1 = 2.125 inch
L2 = 1.187 inch
O = 17.75mm
AF = 0.75 inch
Static load = 23600 N
