SKU: GE17.UK.2RS

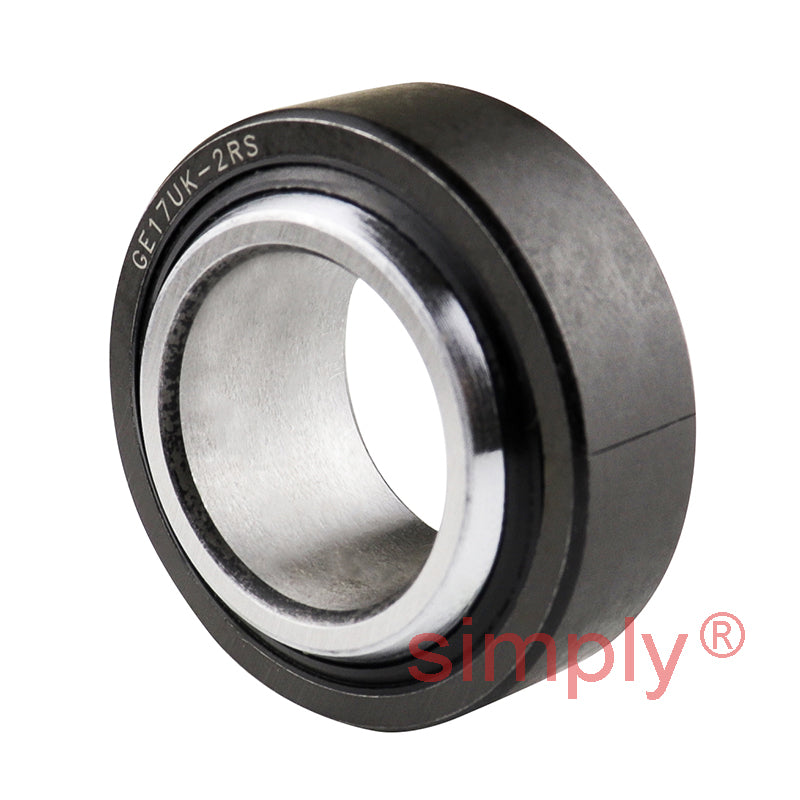

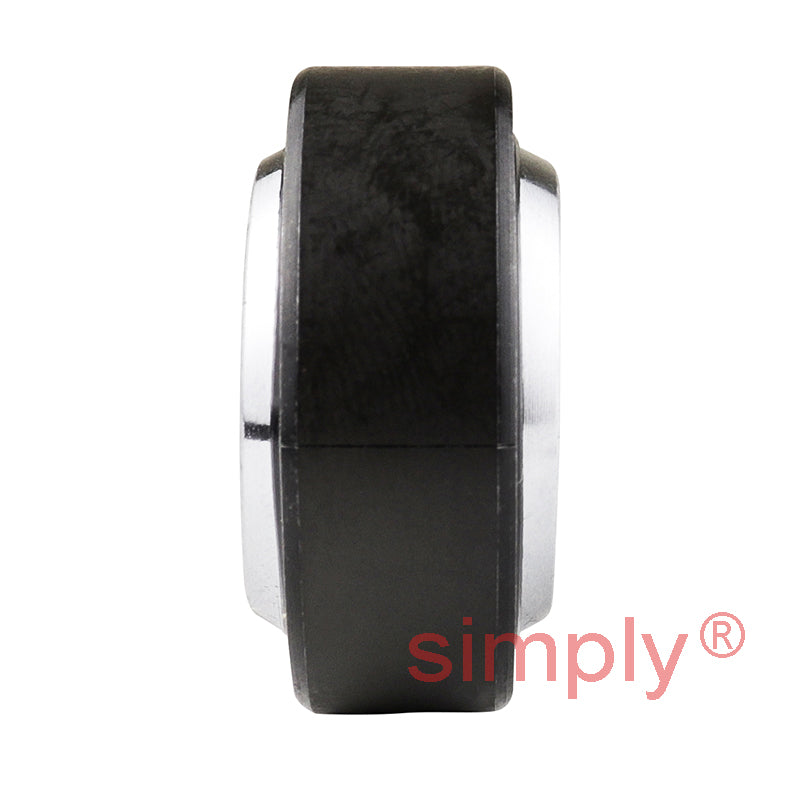

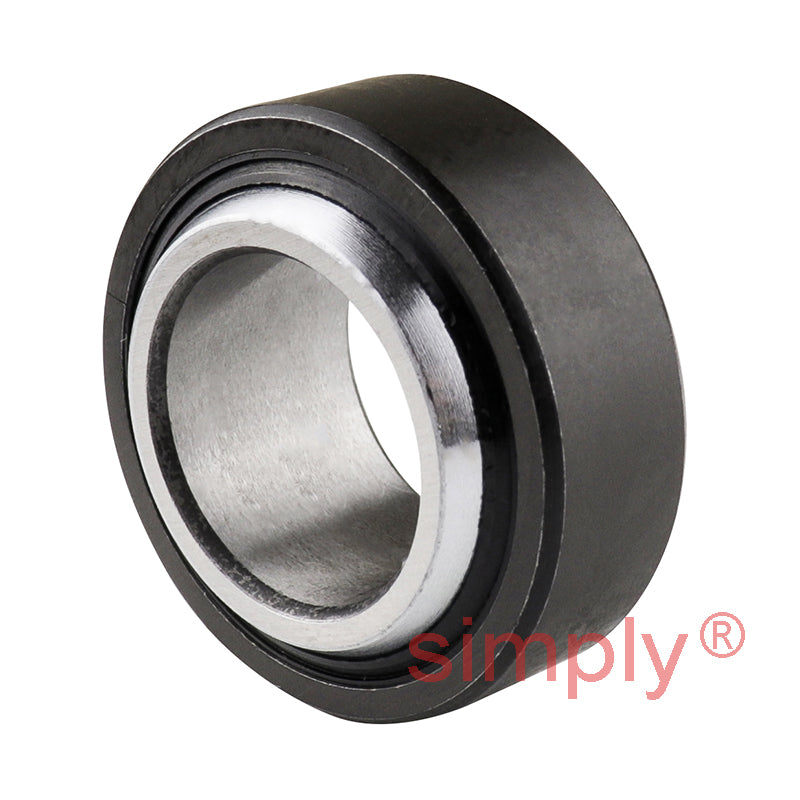

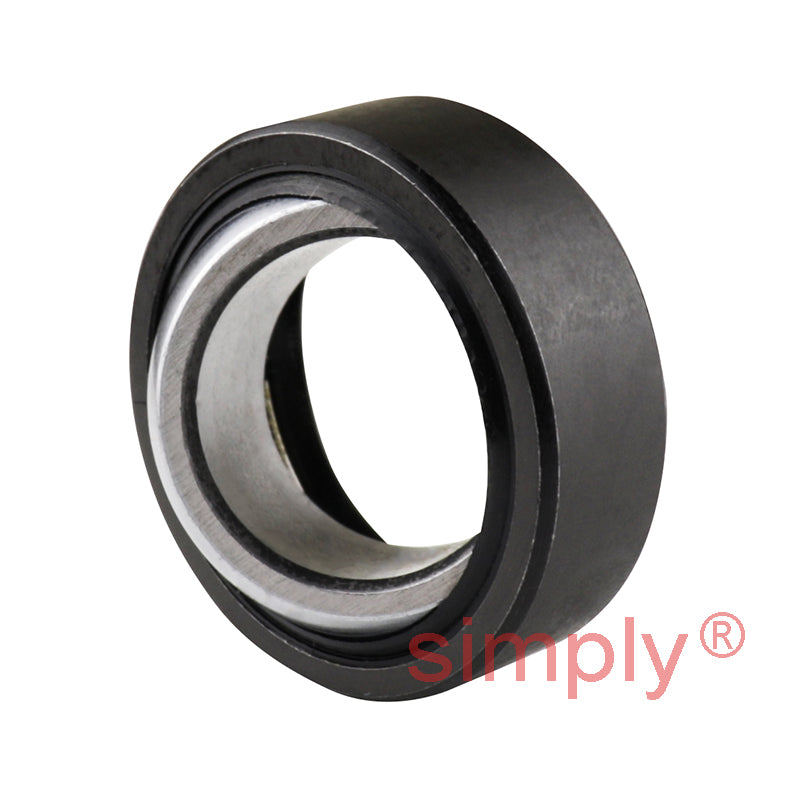

GE17UK2RS Rubber Sealed Spherical Plain Bearing with PTFE Lining 17x30x14x10mm
- Regular price
- €7.50 ex VAT
- Sale price
- €7,50
- Regular price
-
In stock
Quantity Price Breaks
10
€6.68
19
€6.30
29
€6.23
39
€6.15
49
€6.08
74
€6.00
99
€5.63
199
€5.55
249
€5.48
499
€5.40
999
€5.25
SKU:
GE17.UK.2RS
GE17UK2RS Rubber Sealed Spherical Plain Bearing with PTFE Lining 17x30x14x10mm
- Regular price
- €7.50 ex VAT
- Sale price
- €7,50
- Regular price
-
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
Technical
| d | = | 17mm |
| D | = | 30mm |
| B | = | 14mm |
| C | = | 10mm |
| dk | = | 25mm |
| rs min | = | 0.3mm |
| r1s min | = | 0.3mm |
| Angle & | = | alpha |
| = | 10& | |
| deg | = | |
| Dynamic load Co | = | 21 kN |
| Static load Cor | = | 106 kN |
| Weight | = | 0.041 kg |
