SKU: GE20ES.EU
GE20ES Spherical Plain Bearing 20x35x16x12mm
- Regular price
- €6.66 ex VAT
- Sale price
- €6,66
- Regular price
-
In stock
Quantity Price Breaks
10
€5.93
19
€5.59
29
€5.53
39
€5.46
49
€5.39
74
€5.33
99
€5.00
199
€4.93
249
€4.86
499
€4.80
999
€4.66
SKU:
GE20ES.EU
GE20ES Spherical Plain Bearing 20x35x16x12mm
- Regular price
- €6.66 ex VAT
- Sale price
- €6,66
- Regular price
-
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |

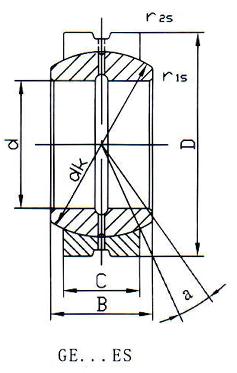

Technical
| d | = | 20mm |
| D | = | 35mm |
| B | = | 16mm |
| C | = | 12mm |
| dk | = | 29mm |
| rs min | = | 0.3mm |
| r1s min | = | 0.3mm |
| Angle & | = | alpha |
| = | 9& | |
| deg | = | |
| Dynamic load Co | = | 30 kN |
| Static load Cor | = | 146 kN |
| Weight | = | 0.066 kg |
