SKU: GE220ES2RS.EU

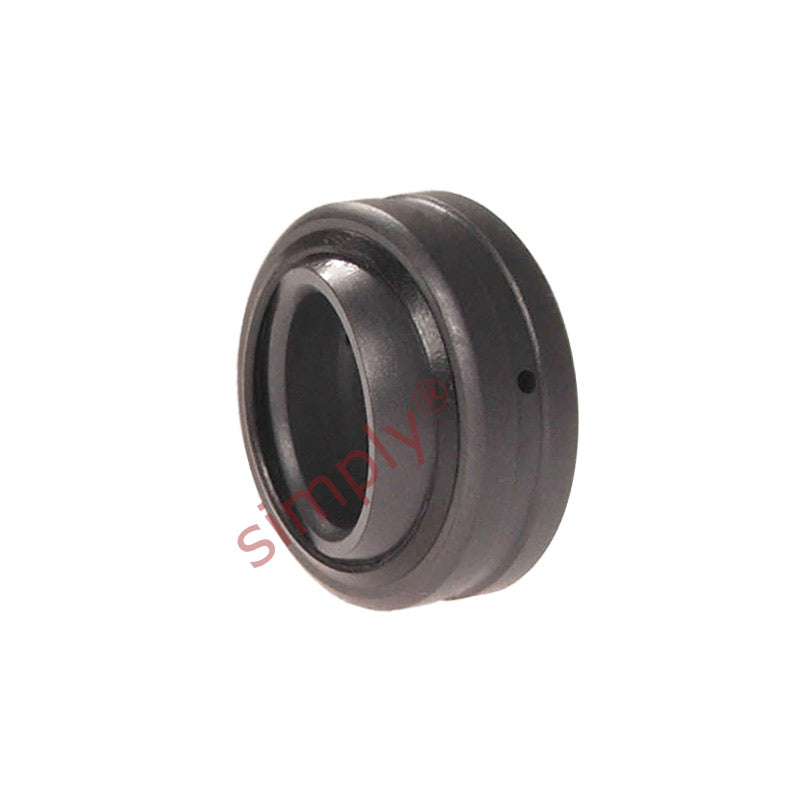

GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
- Regular price
- €1.714.26 ex VAT
- Sale price
- €1.714,26
- Regular price
-
Not in stock
Quantity Price Breaks
10
€1.525.69
19
€1.439.98
29
€1.422.84
39
€1.405.69
49
€1.388.55
74
€1.371.41
99
€1.285.70
199
€1.268.55
249
€1.251.41
499
€1.234.27
999
€1.199.98
SKU:
GE220ES2RS.EU
GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
- Regular price
- €1.714.26 ex VAT
- Sale price
- €1.714,26
- Regular price
-
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
Technical
| d | = | 220mm |
| D | = | 320mm |
| B | = | 135mm |
| C | = | 100mm |
| dk | = | 275mm |
| rs min | = | 1.1mm |
| r1s min | = | 1.1mm |
| Angle & | = | alpha |
| = | 8& | |
| deg | = | |
| Dynamic load Co | = | 2320 kN |
| Static load Cor | = | 11600 kN |
| Weight | = | 35.51 kg |
