SKU: GE25ET.EU

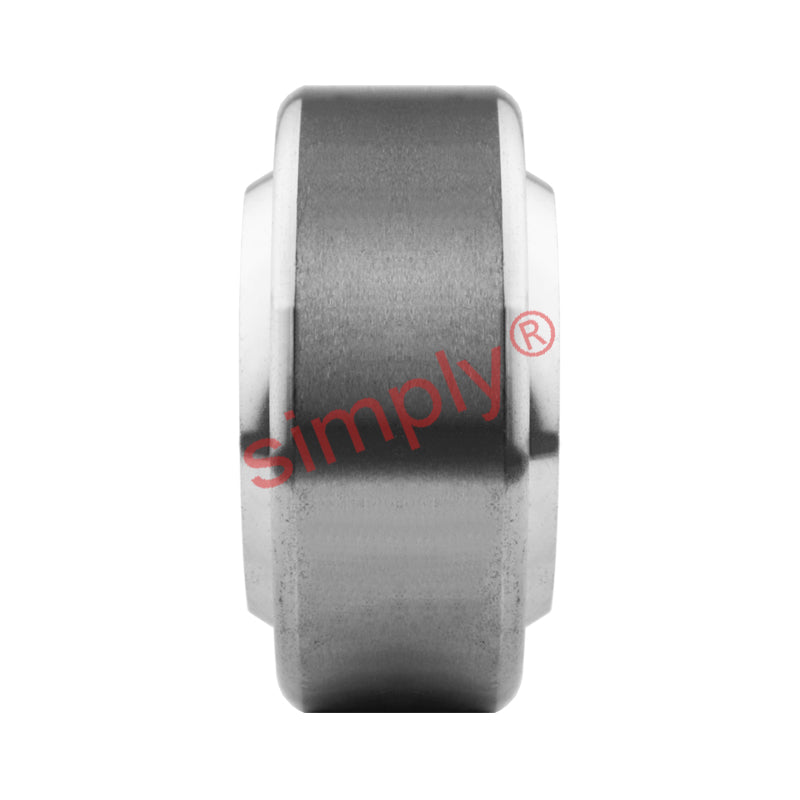

GE25ET2RS Rubber Sealed Spherical Plain Bearing 25x42x20x16mm
- Regular price
- €15.33 ex VAT
- Sale price
- €15,33
- Regular price
-
Not in stock
Quantity Price Breaks
10
€13.64
19
€12.88
29
€12.72
39
€12.57
49
€12.42
74
€12.26
99
€11.50
199
€11.34
249
€11.19
499
€11.04
999
€10.73
SKU:
GE25ET.EU
GE25ET2RS Rubber Sealed Spherical Plain Bearing 25x42x20x16mm
- Regular price
- €15.33 ex VAT
- Sale price
- €15,33
- Regular price
-
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
Technical
| d | = | 25mm |
| D | = | 42mm |
| B | = | 20mm |
| C | = | 16mm |
| dk | = | 35.5mm |
| rs min | = | 0.6mm |
| r1s min | = | 0.6mm |
| Angle & | = | alpha |
| = | 7& | |
| deg | = | |
| Dynamic load Co | = | 85 kN |
| Static load Cor | = | 204 kN |
| Weight | = | 0.115 kg |
