SKU: GRA30-XL-INA

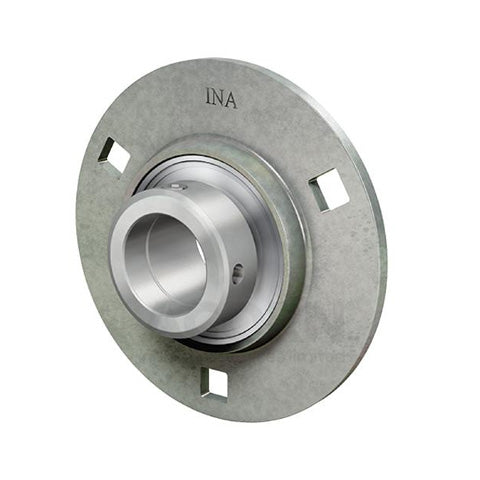

INA GRA30XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 30mm Bore
- Regular price
- €35.12 ex VAT
- Sale price
- €35,12
- Regular price
-
In stock
Quantity Price Breaks
4
€31.26
9
€29.50
19
€29.15
29
€28.80
39
€28.45
49
€28.10
59
€26.34
69
€25.99
79
€25.64
89
€25.29
99
€24.58
SKU:
GRA30-XL-INA
INA GRA30XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 30mm Bore
- Regular price
- €35.12 ex VAT
- Sale price
- €35,12
- Regular price
-
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Can be re-lubricated via a lubrication nipple, suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |

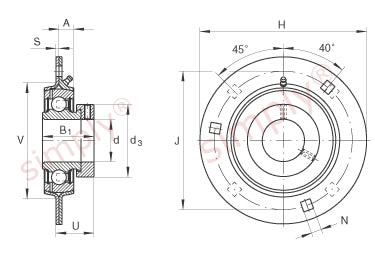

Technical
| d | = | 30mm |
| H | = | 112.7mm |
| B1 | = | 35.8mm |
| A | = | 8.7mm |
| d3 max | = | 44mm |
| J | = | 90.5mm |
| N | = | 10.5mm |
| Number of screw holes | = | 3 |
| S | = | 2.5mm |
| U | = | 29.2mm |
| V | = | 71 |
| Mass | = | 0.61 kg |
| Load carrying capacity of housing Cor G | = | 5000 N |
| Basic dynamic load rating Cr | = | 20700 N |
| Basic static load rating Cor | = | 11300 N |
| Designation of housing | = | FLAN62-MSB (1 X) / FLAN62-MSA (1 X) |
| Designation of bearing | = | GRAE30-XL-NPP-B |
