SKU: GRAE25-NPP-B-MB

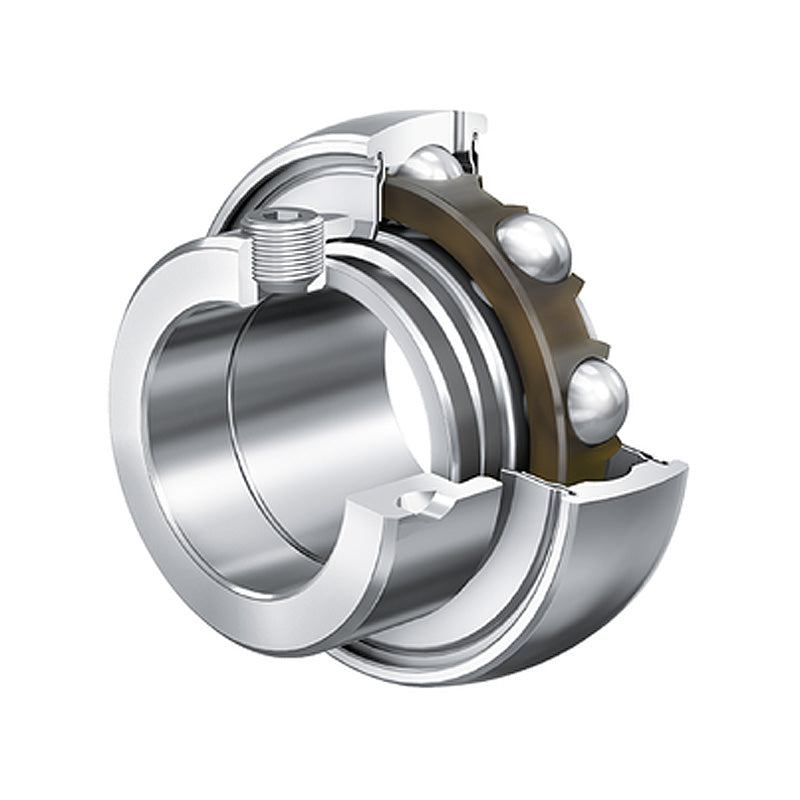

Major Branded GRAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
- Regular price
- €17.07 ex VAT
- Sale price
- €17,07
- Regular price
-
In stock
Quantity Price Breaks
3
€15.19
5
€14.34
10
€14.17
15
€14.00
20
€13.83
30
€13.66
40
€12.80
50
€12.63
60
€12.46
75
€12.29
100
€11.95
SKU:
GRAE25-NPP-B-MB
Major Branded GRAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
- Regular price
- €17.07 ex VAT
- Sale price
- €17,07
- Regular price
-
Description
|
GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
Technical
| d | = | 25mm |
| Dsp | = | 52mm |
| B1 | = | 31mm |
| B | = | 21.4mm |
| C | = | 15mm |
| Ca | = | 3.9mm |
| d2 | = | 30.5mm |
| d3 max | = | 37.5mm |
| S | = | 7.5mm |
| W | = | 3mm |
| Dynamic load Cr | = | 14000 N |
| Static load C0r | = | 7800 N |
| Weight | = | 0.19 kg |
