SKU: GRRY30-VA-INA

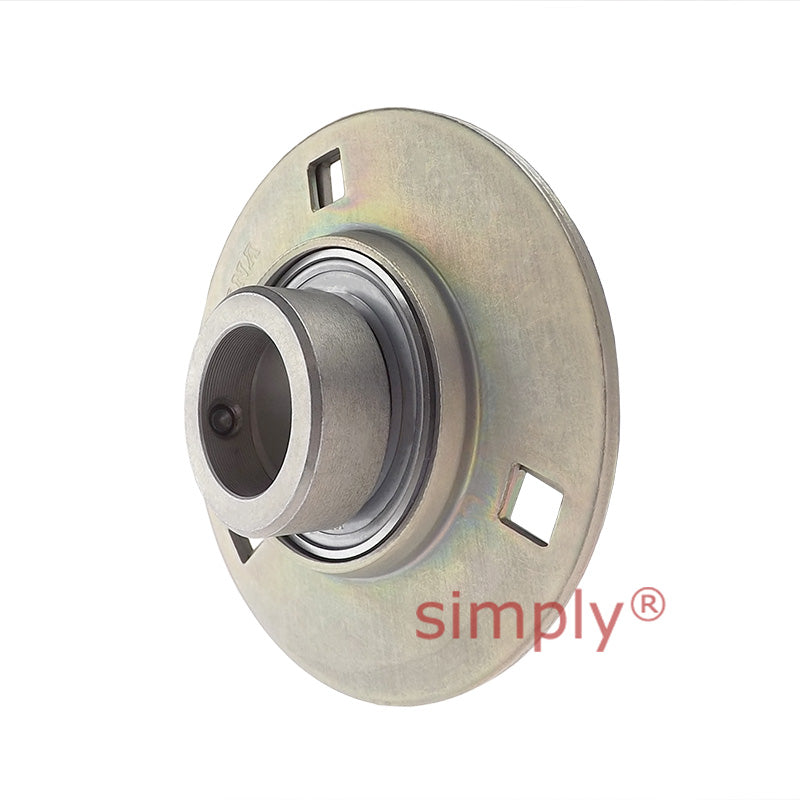

INA GRRY30VA Three Bolt Sheet Steel Round Housing with Grub Screw Insert and Anti-Corrosion Protection 30mm Bore
- Regular price
- €147.81 ex VAT
- Sale price
- €147,81
- Regular price
-
Not in stock
Quantity Price Breaks
4
€131.55
9
€124.16
19
€122.68
29
€121.20
39
€119.73
49
€118.25
59
€110.86
69
€109.38
79
€107.90
89
€106.42
99
€103.47
SKU:
GRRY30-VA-INA
INA GRRY30VA Three Bolt Sheet Steel Round Housing with Grub Screw Insert and Anti-Corrosion Protection 30mm Bore
- Regular price
- €147.81 ex VAT
- Sale price
- €147,81
- Regular price
-
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. The housing unit is corrosion-resistant and therefore suitable for use where moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Can be re-lubricated via a lubrication nipple, suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft, corrosion-resistant. |
Technical
| d | = | 30mm |
| H | = | 112.7mm |
| B | = | 38.1mm |
| A | = | 9mm |
| J | = | 90.5mm |
| N | = | 10.5mm |
| Number of screw holes | = | 3 |
| S | = | 2.5mm |
| U | = | 24.7mm |
| V | = | 71 |
| Mass | = | 0.63 kg |
| Load carrying capacity of housing Cor G | = | 5000 N |
| Basic dynamic load rating Cr | = | 18700 N |
| Basic static load rating Cor | = | 10700 N |
| Designation of housing | = | FLAN62-MSB-VA (1 X) / FLAN62-MSA-VA (1 X) |
| Designation of bearing | = | SUC206 |
