SKU: GS81103-MB

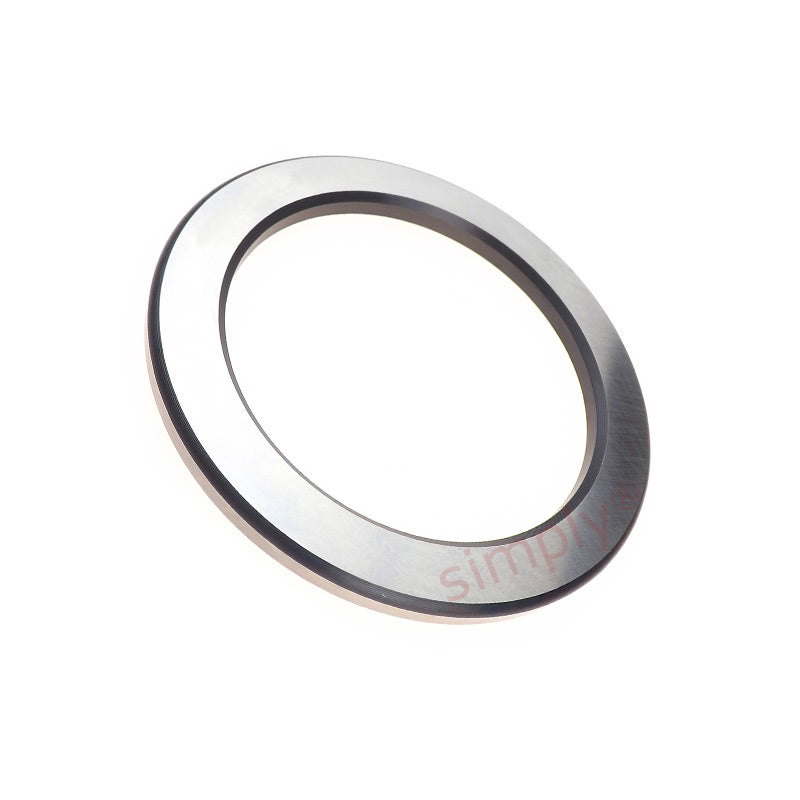

Major Brand GS81103 Shaft Washer Series WS 18x30x2.75mm
- Regular price
- €15.42 ex VAT
- Sale price
- €15,42
- Regular price
-
In stock
Quantity Price Breaks
10
€13.72
19
€12.95
29
€12.80
39
€12.64
49
€12.49
74
€12.34
99
€11.57
199
€11.41
249
€11.26
499
€11.10
999
€10.79
SKU:
GS81103-MB
Major Brand GS81103 Shaft Washer Series WS 18x30x2.75mm
- Regular price
- €15.42 ex VAT
- Sale price
- €15,42
- Regular price
-
Description
|
GS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly. Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution. |

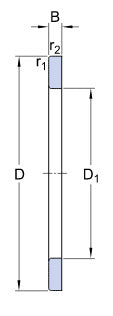

Technical
| d | = | 18mm |
| D | = | 30mm |
| B | = | 2.75mm |
| r1r2 | = | 0.3mm |
| Weight | = | 9 g |
