SKU: H209-EU

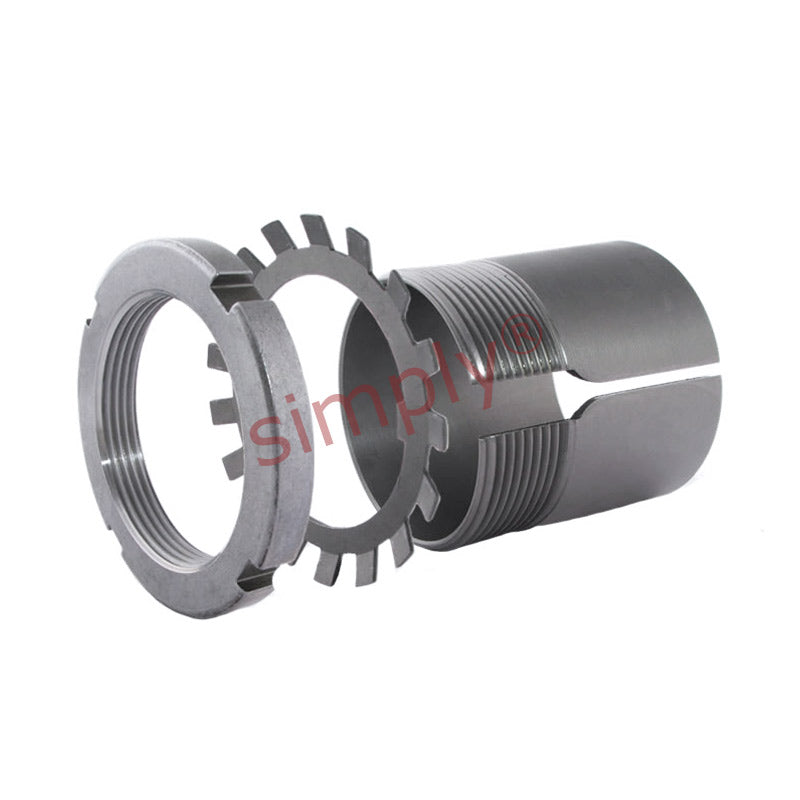

H209 Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €15.98 ex VAT
- Sale price
- €15,98
- Regular price
-
In stock
Quantity Price Breaks
10
€14.22
19
€13.42
29
€13.26
39
€13.10
49
€12.94
74
€12.78
99
€11.99
199
€11.83
249
€11.67
499
€11.51
999
€11.19
SKU:
H209-EU
H209 Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €15.98 ex VAT
- Sale price
- €15,98
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| d3 | = | 65mm |
| B1 | = | 33mm |
| B2 | = | 11mm |
| G | = | Thread 45x1.5mm |
| Weight | = | 0.21 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H209 |
| Nut | = | KM9 |
| Washer | = | MB9 |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1209K+taper+self+open> | = | 1209K< |
| /a> | = |
