SKU: HA3130-EU

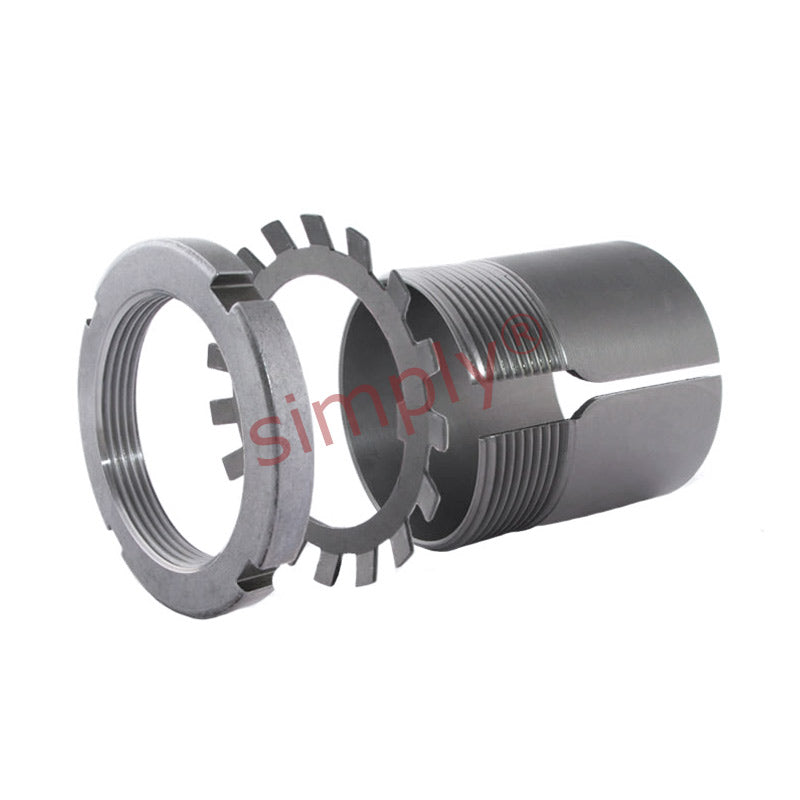

HA3130 Budget Imperial Adaptor Sleeve for 5-3/16 inch Shaft
- Regular price
- €512.79 ex VAT
- Sale price
- €512,79
- Regular price
-
Not in stock
Quantity Price Breaks
10
€456.38
19
€430.74
29
€425.62
39
€420.49
49
€415.36
74
€410.23
99
€384.59
199
€379.46
249
€374.34
499
€369.21
999
€358.95
SKU:
HA3130-EU
HA3130 Budget Imperial Adaptor Sleeve for 5-3/16 inch Shaft
- Regular price
- €512.79 ex VAT
- Sale price
- €512,79
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 131.763mm (5-3/16) inch |
| d | = | 150mm |
| d3 | = | 195mm |
| B1 | = | 111mm |
| B2 | = | 26mm |
| G | = | Thread 150x2mm |
| Weight | = | 5.8 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HA3130 |
| Nut | = | KM30 |
| Washer | = | MB30 |
| Hydraulic nut | = | HMV30E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23130K+taper> | = | 23130K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22230K+taper> | = | 22230K< |
| /a> | = |
