SKU: HA3136L-EU

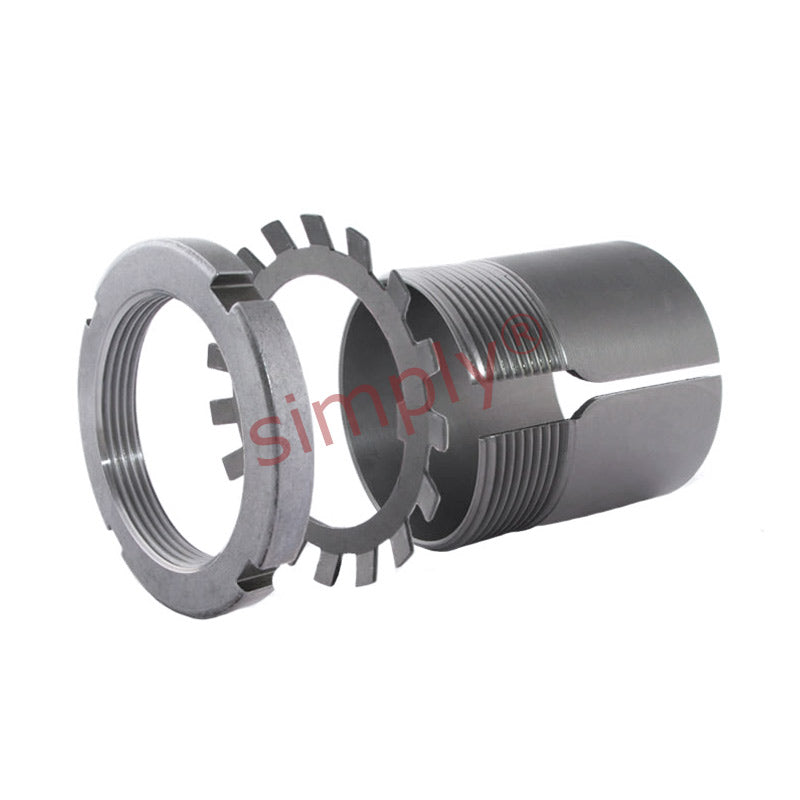

HA3136L Budget Imperial Adaptor Sleeve for 6-7/16 inch Shaft
- Regular price
- €895.50 ex VAT
- Sale price
- €895,50
- Regular price
-
Not in stock
Quantity Price Breaks
10
€797.00
19
€752.22
29
€743.27
39
€734.31
49
€725.36
74
€716.40
99
€671.63
199
€662.67
249
€653.72
499
€644.76
999
€626.85
SKU:
HA3136L-EU
HA3136L Budget Imperial Adaptor Sleeve for 6-7/16 inch Shaft
- Regular price
- €895.50 ex VAT
- Sale price
- €895,50
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 163.513mm (6-7/16) inch |
| d | = | 180mm |
| d3 | = | 210mm |
| B1 | = | 131mm |
| B2 | = | 29.5mm |
| G | = | Thread 180x3mm |
| Weight | = | 7.2 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HA3136L |
| Nut | = | KML36 |
| Washer | = | MBL36 |
| Hydraulic nut | = | HMV36E |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3136K+taper> | = | C3136K< |
| /a> | = |
