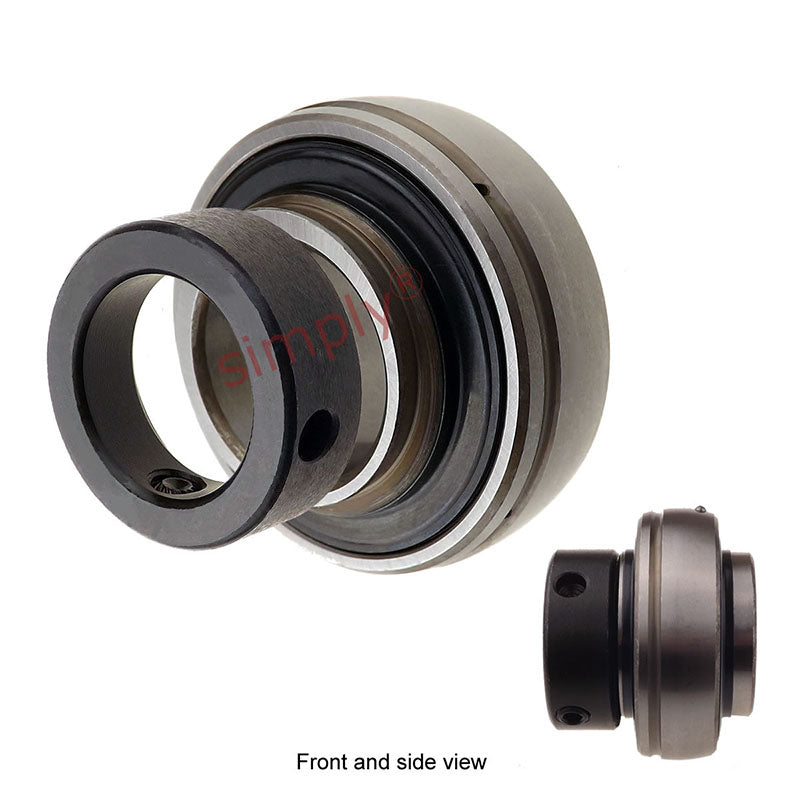

HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia

SKU: HC201

HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia

€16.84 ex VAT
€16,84
ex VAT
Equivalent to: NA201
Not in stock

Quantity Price Breaks

3 €14.99
4 €14.15
9 €13.98
19 €13.81
49 €13.64
99 €13.47
499 €12.63
999 €12.46
1999 €12.29
2999 €12.12
4999 €11.79
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia
SKU: HC201

HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia

€16.84 ex VAT
€16,84
ex VAT

Description

HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing, full width inner race.

Technical

d = 12mm
D = 47mm
B1 = 43.7mm
B = 34.2mm
C = 17mm
s = 17.1mm
ds = M6x1
G = 4.8mm
B5 = 13.5mm
d3 = 33.3mm
F = 3.7mm
Dynamic load = 1305 kgf
Static load = 678 kgf
Weight = 0.29 kg
