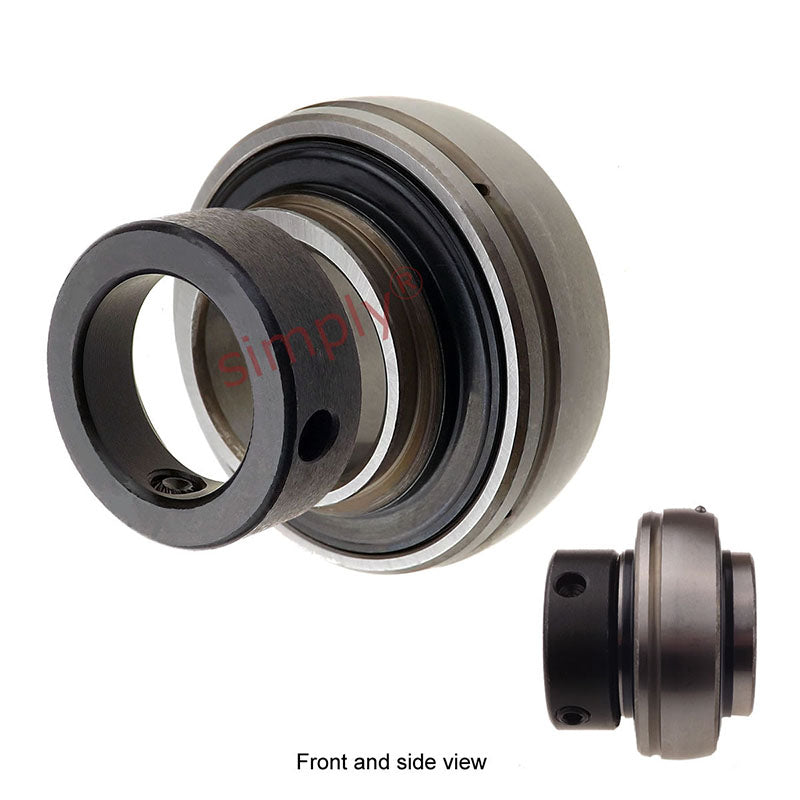

HC207-20 Eccentric Collar Full Width Insert 1-1/4 inch Bore 72mm Outside Dia

SKU: HC207-20

HC207-20 Eccentric Collar Full Width Insert 1-1/4 inch Bore 72mm Outside Dia

€17.22 ex VAT
€17,22
ex VAT
Equivalent to: NA207-20
In stock

Quantity Price Breaks

3 €15.33
4 €14.46
9 €14.29
19 €14.12
49 €13.95
99 €13.78
499 €12.92
999 €12.74
1999 €12.57
2999 €12.40
4999 €12.05
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
HC207-20 Eccentric Collar Full Width Insert 1-1/4 inch Bore 72mm Outside Dia
SKU: HC207-20

HC207-20 Eccentric Collar Full Width Insert 1-1/4 inch Bore 72mm Outside Dia

€17.22 ex VAT
€17,22
ex VAT

Description

HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing, full width inner race.

Technical

d = 1-1/4 inch
D = 72mm
B1 = 51.1mm
B = 37.6mm
C = 20mm
s = 18.8mm
ds = 15/16 x 24 UNF
G = 6.8mm
B5 = 17.5mm
d3 = 55.6mm
F = 5.7mm
Dynamic load = 2621 kgf
Static load = 1560 kgf
Weight = 0.67 kg
