SKU: HCFL217-52

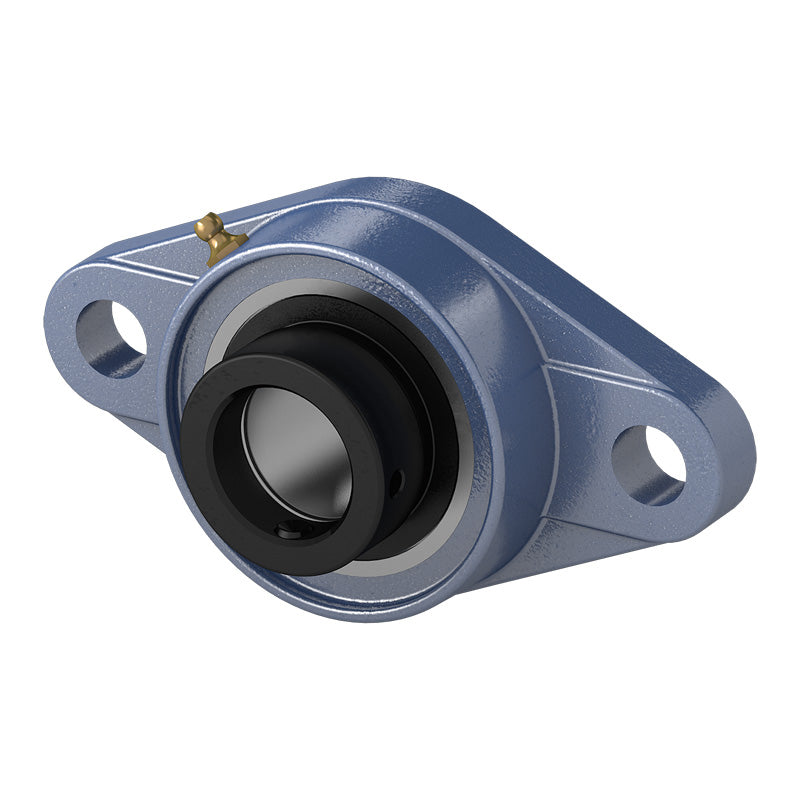

HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
- Regular price
- €144.35 ex VAT
- Sale price
- €144,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€128.47
4
€121.25
9
€119.81
19
€118.37
49
€116.92
99
€115.48
499
€108.26
999
€106.82
1999
€105.38
2999
€103.93
4999
€101.05
SKU:
HCFL217-52
HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
- Regular price
- €144.35 ex VAT
- Sale price
- €144,35
- Regular price
-
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
Technical
| d | = | 3-1/4 inch |
| a | = | 9-27/32 inch |
| e | = | 5-51/64 inch |
| i | = | 23/32 inch |
| g | = | 1-25/32 inch |
| l | = | 7.0866 inch |
| s | = | 29/32 inch |
| b | = | 7-15/32 inch |
| z | = | 3-13/32 inch |
| B1 | = | 2.906 inch |
| n | = | 0.921 inch |
| Bolt size | = | 7/8 inch |
| Bearing no | = | HC217-52 |
| Housing no | = | FL217 |
| Weight | = | 8.7071 kg |
