SKU: HE210-EU

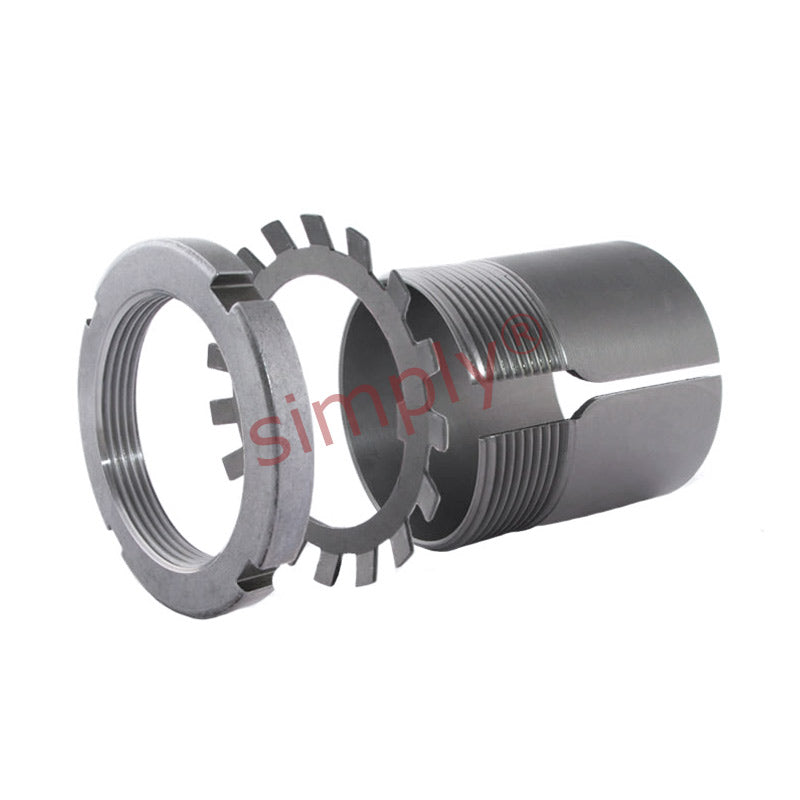

HE210 Budget Imperial Adaptor Sleeve for 1-3/4 inch Shaft
- Regular price
- €25.67 ex VAT
- Sale price
- €25,67
- Regular price
-
In stock
Quantity Price Breaks
10
€22.85
19
€21.56
29
€21.31
39
€21.05
49
€20.79
74
€20.54
99
€19.25
199
€19.00
249
€18.74
499
€18.48
999
€17.97
SKU:
HE210-EU
HE210 Budget Imperial Adaptor Sleeve for 1-3/4 inch Shaft
- Regular price
- €25.67 ex VAT
- Sale price
- €25,67
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 44.45mm (1-3/4) inch |
| d | = | 50mm |
| d3 | = | 70mm |
| B1 | = | 35mm |
| B2 | = | 12mm |
| G | = | Thread 50x1.5mm |
| Weight | = | 0.26 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE210 |
| Nut | = | KM10 |
| Washer | = | MB10 |
| Hydraulic nut | = | HMV10E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1210K+taper> | = | 1210K< |
| /a> | = |
