SKU: HE217-EU

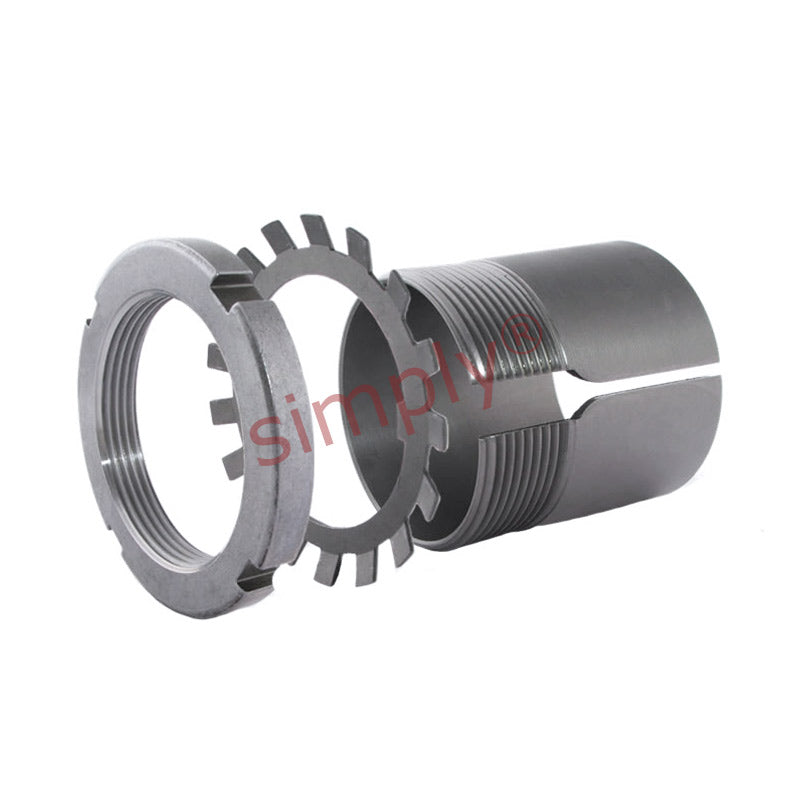

HE217 Budget Imperial Adaptor Sleeve for 3 inch Shaft
- Regular price
- €69.56 ex VAT
- Sale price
- €69,56
- Regular price
-
Not in stock
Quantity Price Breaks
10
€61.91
19
€58.43
29
€57.73
39
€57.04
49
€56.34
74
€55.65
99
€52.17
199
€51.47
249
€50.78
499
€50.08
999
€48.69
SKU:
HE217-EU
HE217 Budget Imperial Adaptor Sleeve for 3 inch Shaft
- Regular price
- €69.56 ex VAT
- Sale price
- €69,56
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 76.2mm (3) inch |
| d | = | 85mm |
| d3 | = | 110mm |
| B1 | = | 50mm |
| B2 | = | 18mm |
| G | = | Thread 85x2mm |
| Weight | = | 0.87 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE217 |
| Nut | = | KM17 |
| Washer | = | MB17 |
| Hydraulic nut | = | HMV17E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1217K+taper> | = | 1217K< |
| /a> | = |
