SKU: HE2311-EU

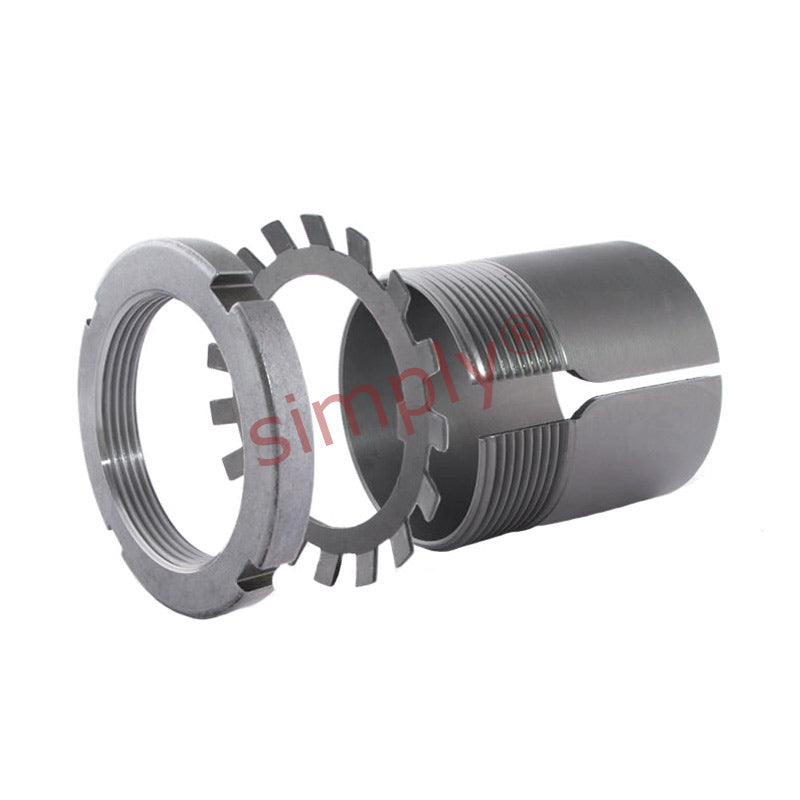

HE2311 Budget Imperial Adaptor Sleeve for 2 inch Shaft
- Regular price
- €34.24 ex VAT
- Sale price
- €34,24
- Regular price
-
Not in stock
Quantity Price Breaks
10
€30.47
19
€28.76
29
€28.42
39
€28.08
49
€27.73
74
€27.39
99
€25.68
199
€25.34
249
€25.00
499
€24.65
999
€23.97
SKU:
HE2311-EU
HE2311 Budget Imperial Adaptor Sleeve for 2 inch Shaft
- Regular price
- €34.24 ex VAT
- Sale price
- €34,24
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 50.8mm (2) inch |
| d | = | 55mm |
| d3 | = | 75mm |
| B1 | = | 59mm |
| B2 | = | 12.5mm |
| G | = | W55x1/19mm |
| Weight | = | 0.36 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE2311 |
| Nut | = | HM11 |
| Washer | = | MB11 |
