SKU: HE309E-EU

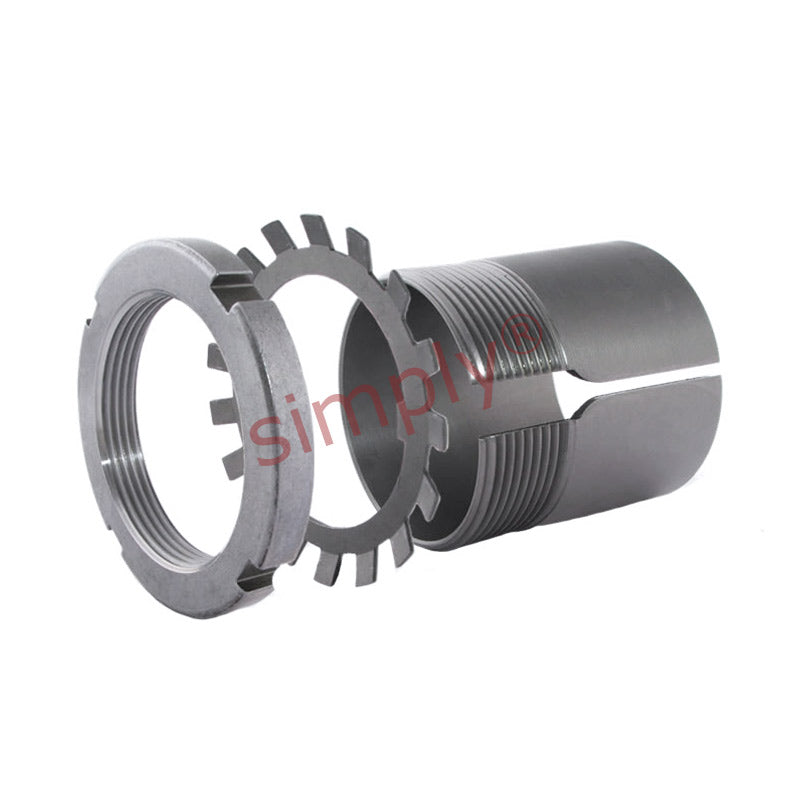

HE309E Budget Imperial Adaptor Sleeve for 1-1/2 inch Shaft
- Regular price
- €43.55 ex VAT
- Sale price
- €43,55
- Regular price
-
Not in stock
Quantity Price Breaks
10
€38.76
19
€36.58
29
€36.15
39
€35.71
49
€35.28
74
€34.84
99
€32.66
199
€32.23
249
€31.79
499
€31.36
999
€30.49
SKU:
HE309E-EU
HE309E Budget Imperial Adaptor Sleeve for 1-1/2 inch Shaft
- Regular price
- €43.55 ex VAT
- Sale price
- €43,55
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 38.1mm (1-1/2) inch |
| d | = | 45mm |
| d3 | = | 65mm |
| B1 | = | 39mm |
| B2 | = | 13mm |
| G | = | Thread 45x1.5mm |
| Weight | = | 0.26 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE309E |
| Nut | = | KMFE9 |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2209K+taper> | = | C2209K< |
| /a> | = |
