SKU: HE315E-EU

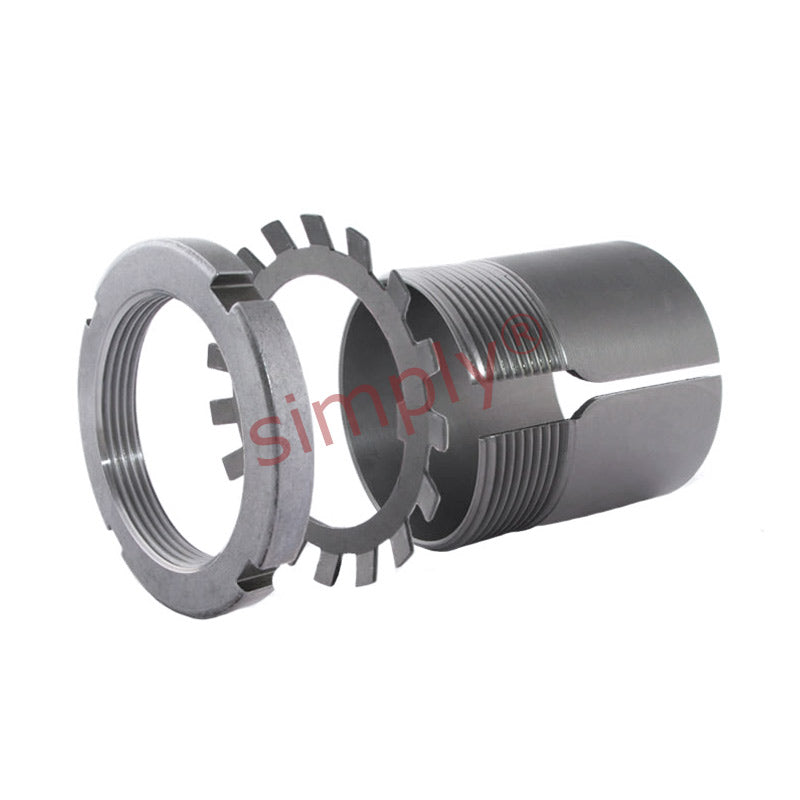

HE315E Budget Imperial Adaptor Sleeve for 2-1/2 inch Shaft
- Regular price
- €94.62 ex VAT
- Sale price
- €94,62
- Regular price
-
Not in stock
Quantity Price Breaks
10
€84.21
19
€79.48
29
€78.53
39
€77.59
49
€76.64
74
€75.70
99
€70.97
199
€70.02
249
€69.07
499
€68.13
999
€66.23
SKU:
HE315E-EU
HE315E Budget Imperial Adaptor Sleeve for 2-1/2 inch Shaft
- Regular price
- €94.62 ex VAT
- Sale price
- €94,62
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 63.5mm (2-1/2) inch |
| d | = | 75mm |
| d3 | = | 98mm |
| B1 | = | 55mm |
| B2 | = | 16mm |
| G | = | Thread 75x2mm |
| Weight | = | 0.87 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE315E |
| Nut | = | KMFE15 |
| Hydraulic nut | = | HMV15E |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2215K+taper> | = | C2215K< |
| /a> | = |
