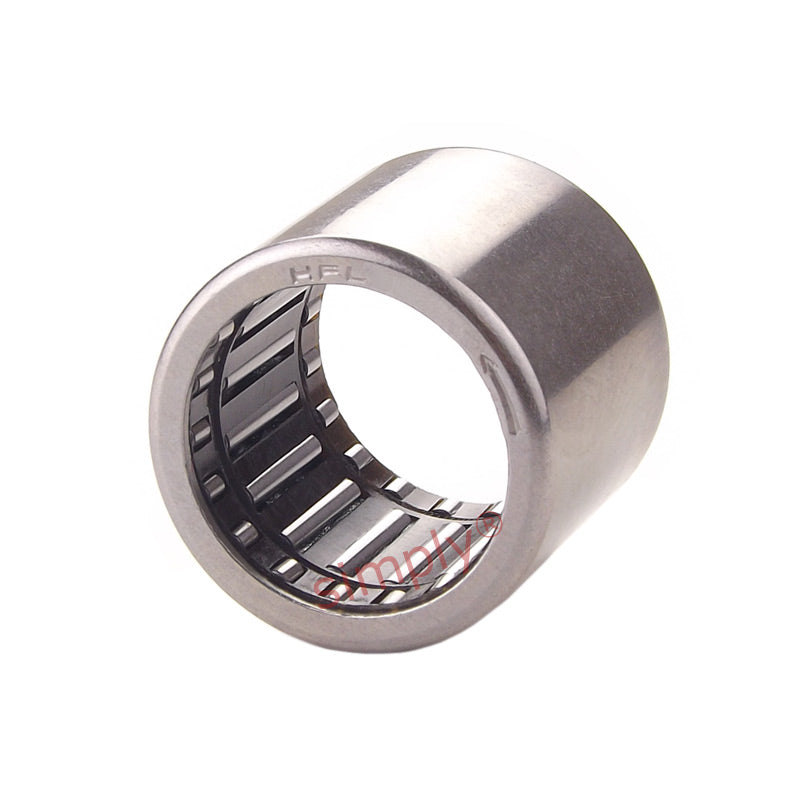

Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm

SKU: HFL.1826.MB

Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm

€29.94 ex VAT
€29,94
ex VAT
In stock

Quantity Price Breaks

10 €26.65
19 €25.15
29 €24.85
39 €24.55
49 €24.25
74 €23.95
99 €22.46
199 €22.16
249 €21.86
499 €21.56
999 €20.96
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm
SKU: HFL.1826.MB

Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm

€29.94 ex VAT
€29,94
ex VAT

Description

Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the BA and BHA series and are dimensionally the same and are available for shaft diameters from 1/4 inch to 1 inch
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C

Please note: This bearing will turn in one direction only

Technical

Fw = 18mm
D = 24mm
C = 26mm
Tolerance = 0.3mm
r min = 0.3
Torque = 24.1 N m
Speed (rotating shaft) = 7500 rpm
Speed (rotating outer ring) = 7500 rpm
Weight = 25 g
