SKU: HK0808-EU

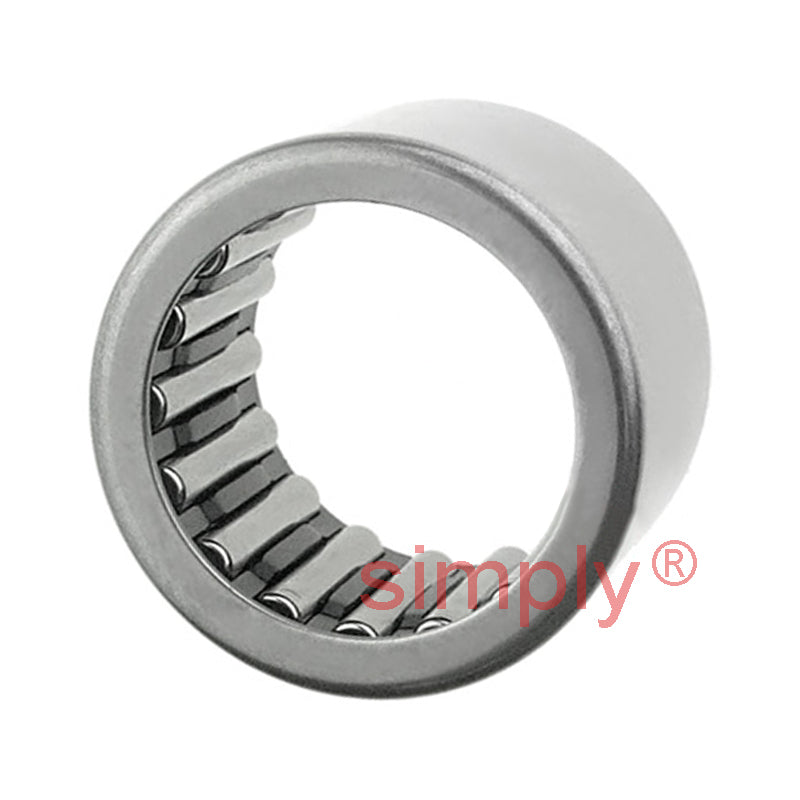

HK0808 Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x8mm
- Regular price
- €3.93 ex VAT
- Sale price
- €3,93
- Regular price
-
In stock
Quantity Price Breaks
10
€3.50
19
€3.30
29
€3.26
39
€3.22
49
€3.18
74
€3.14
99
€2.95
199
€2.91
249
€2.87
499
€2.83
999
€2.75
SKU:
HK0808-EU
HK0808 Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x8mm
- Regular price
- €3.93 ex VAT
- Sale price
- €3,93
- Regular price
-
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 8mm |
| D | = | 12mm |
| C | = | 8mm |
| Dynamic load C | = | 2700 N |
| Static load Co | = | 2750 N |
| Fatigue load limit Pu | = | 285 N |
| Speed in grease | = | 17000 rpm |
| Speed in oil | = | 26000 rpm |
| r1r2 min | = | 0.4mm |
| Da max | = | 8.3mm |
| ra max | = | 0.4mm |
| Seal | = | G8x12x3 |
| Weight | = | 30 g |
