SKU: HK1514RS-MB

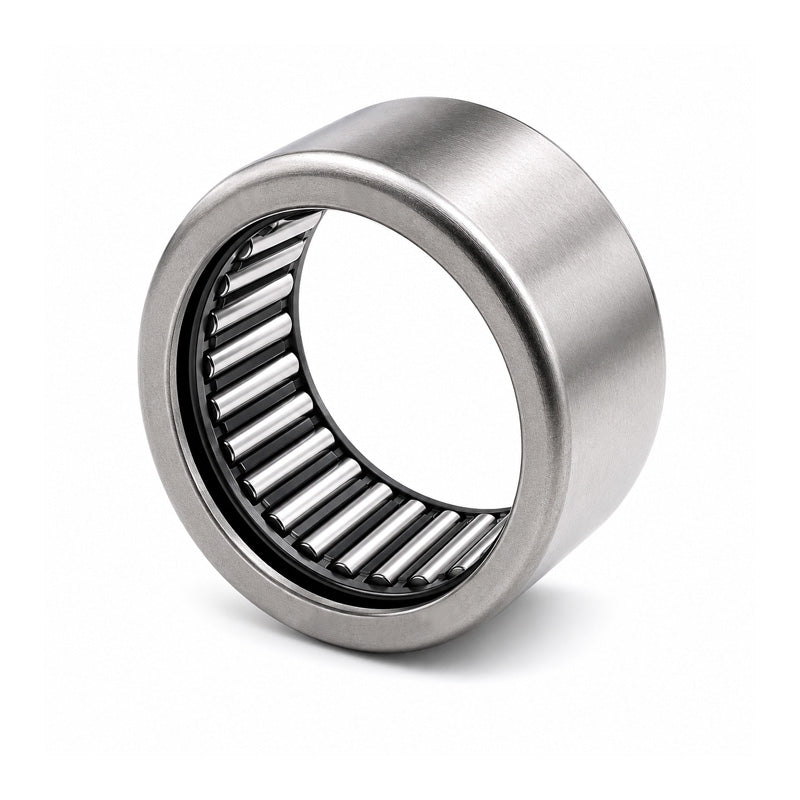

Major Brand HK1514RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 15x21x14mm
- Regular price
- €6.36 ex VAT
- Sale price
- €6,36
- Regular price
-
In stock
Quantity Price Breaks
10
€5.66
19
€5.34
29
€5.28
39
€5.22
49
€5.15
74
€5.09
99
€4.77
199
€4.71
249
€4.64
499
€4.58
999
€4.45
SKU:
HK1514RS-MB
Major Brand HK1514RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 15x21x14mm
- Regular price
- €6.36 ex VAT
- Sale price
- €6,36
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 15mm |
| D | = | 21mm |
| C | = | 14mm |
| Dynamic load | = | 7480 N |
| Static load | = | 10000 N |
| Fatigue load limit Pu | = | 1140 N |
| Speed in grease | = | 11000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 16mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR12x15x16.5 |
| Weight | = | 12 g |
