SKU: HK1814RS-MB

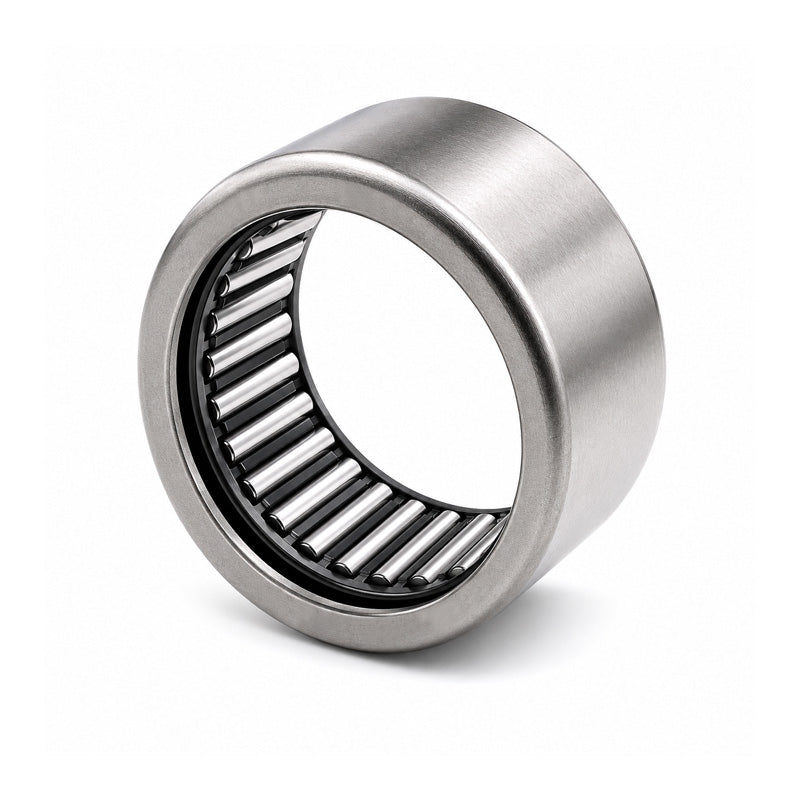

Major Brand HK1814RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 18x24x14mm
- Regular price
- €6.76 ex VAT
- Sale price
- €6,76
- Regular price
-
In stock
Quantity Price Breaks
10
€6.02
19
€5.68
29
€5.61
39
€5.54
49
€5.48
74
€5.41
99
€5.07
199
€5.00
249
€4.93
499
€4.87
999
€4.73
SKU:
HK1814RS-MB
Major Brand HK1814RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 18x24x14mm
- Regular price
- €6.76 ex VAT
- Sale price
- €6,76
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 18mm |
| D | = | 24mm |
| C | = | 14mm |
| Dynamic load | = | 7920 N |
| Static load | = | 11200 N |
| Fatigue load limit Pu | = | 1270 N |
| Speed in grease | = | 9500 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 19mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR15x18x16.5 |
| Weight | = | 14 g |
