SKU: HK2214RS-MB

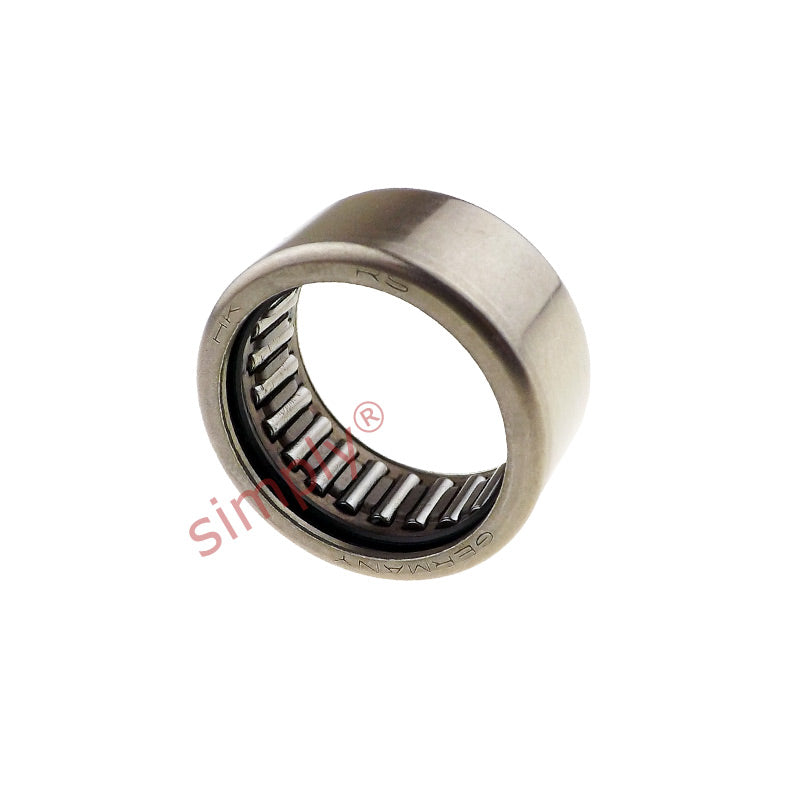

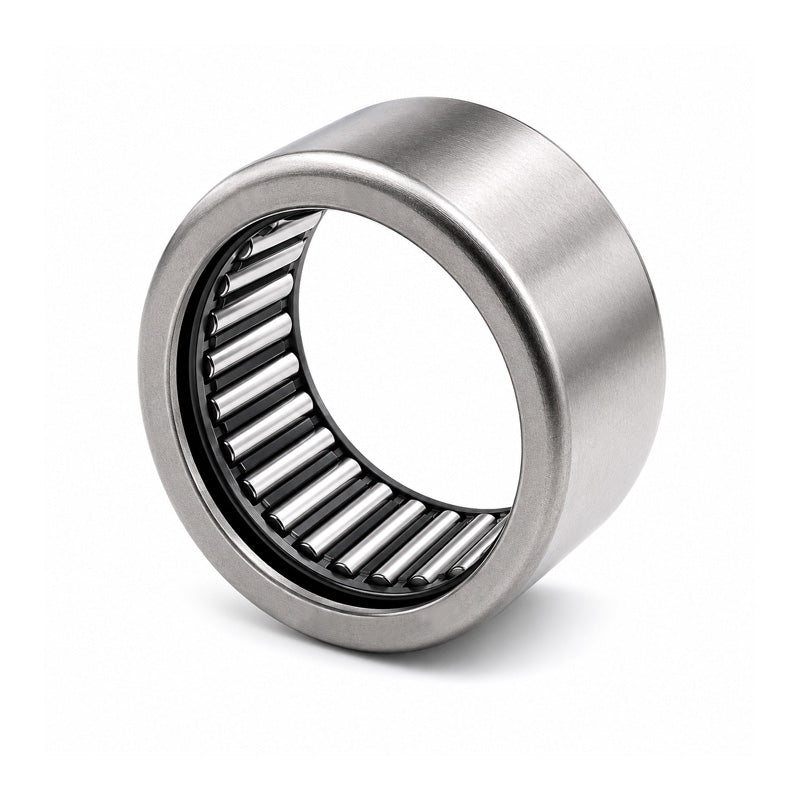

Major Brand HK2214RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x14mm
- Regular price
- €9.30 ex VAT
- Sale price
- €9,30
- Regular price
-
In stock
Quantity Price Breaks
10
€8.28
19
€7.81
29
€7.72
39
€7.63
49
€7.53
74
€7.44
99
€6.98
199
€6.88
249
€6.79
499
€6.70
999
€6.51
SKU:
HK2214RS-MB
Major Brand HK2214RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x14mm
- Regular price
- €9.30 ex VAT
- Sale price
- €9,30
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 22mm |
| D | = | 28mm |
| C | = | 14mm |
| Dynamic load | = | 8800 N |
| Static load | = | 13700 N |
| Fatigue load limit Pu | = | 1560 N |
| Speed in grease | = | 8000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 23mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR17x22x16 |
| Weight | = | 16 g |
